| Name: | Thickness Gauge Blocks | Brand: | HUATEC |
|---|---|---|---|
| Country Of Origin: | China | MOQ: | 1 Set |
| High Light: | high precision thickness gauge blocks,digital thickness gauge blocks,linearity checking thickness gauge blocks |
||
Blocks for the linearity checking of Digital Thickness Gauge

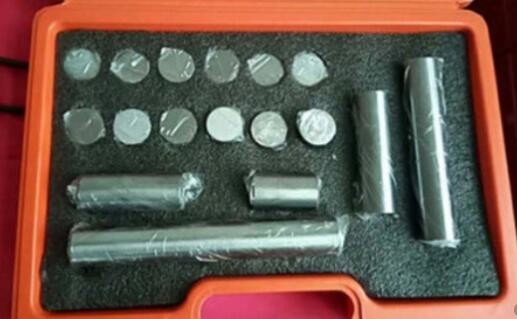

Set (17 pcs) of ultrasonic thickness calibration blocks is intended for checking linearity of ultrasonic contact thickness gauges.
The blocks can be supplied as a complete set or separately.
| Standard value | 0.5 | 1.0 | 1.2 | 1.5 | 2.0 | 3.3 | |
| Allowable error (a) | ±0.01 | ||||||
| Standard value | 5.5 | 7.7 | 10 | 15 | 20 | 25 | 50 |
| Allowable error (a) | ±0.01 | ±0.02 | |||||
| Standard value | 75 | 100 | 150 | 200 | |||
| Allowable error (a) | ±0.02 | ±0.05 | |||||
