Product Details:
|
| Electrical Requirements: | AC110-115V 50/60Hz,AC220-230V 50/60 Hz,AC240V 50/60Hz | Waveform: | AC |
|---|---|---|---|
| Working Temperature: | -10～+40℃ | -10～+40℃: | IP54 |
| High Light: | Voltage Optional ac electromagnetic yoke,ac electromagnetic yoke IP54,electromagnetic yoke IP54 |
||

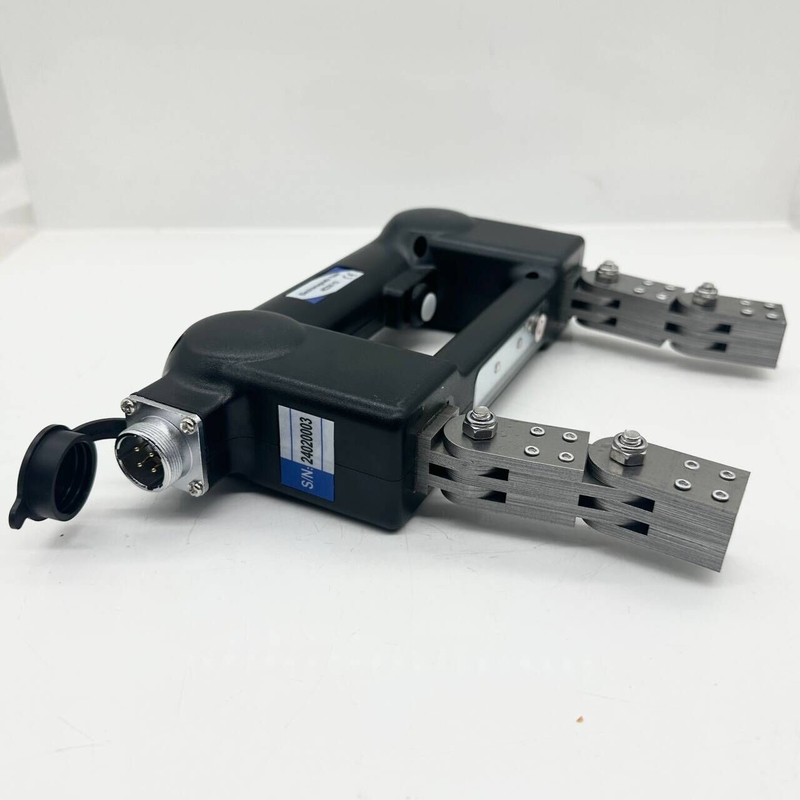

AC Electromagnetic Yoke HCDX-Y2
Two power supply modes are optional:
110V/220V/240V Single-phase AC power supply (straight plug mode);
DC magnetization power supply (DC battery pack with digital display screen)
Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.
| ctrical Requirements | AC110-115V 50/60Hz,AC220-230V 50/60 Hz,AC240V 50/60Hz | |
| Waveform | AC | |
| Tangential Field Strength | > 2kA/m at midpoint between legs / poles | |
| Working temperature | -10~40C | |
| Duty Cycle | 50%, max on time is 90 seconds | |
| Ingress Protection (IEC 60259) | IP54 | |
| Relative humidity | <80% | |
| Sensitivity | ASTM E1444-05,ASME 2007 page number V |

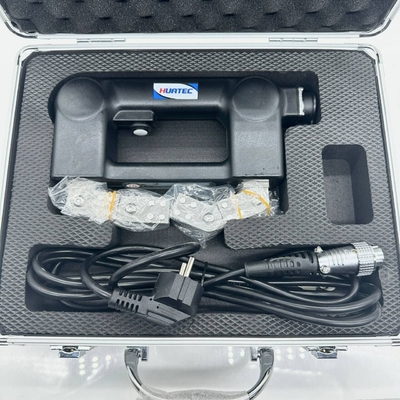

Standard package
HCDX-Y2
Yoke
Power cord
Calibration certificate
Warranty card
Carrying case
