Product Details:
|
| Product Name: | Gloss Meter | Test Range: | 0.0-199.9（Ｇs） |
|---|---|---|---|
| Test Accuracy: | ＜1.2（Ｇs） | Power: | 1.5V AA Battery |
| High Light: | Triangle Gloss Meter,1.5V AA Battery Triangle Gloss Meter,Battery power Triangle Gloss Meter |
||

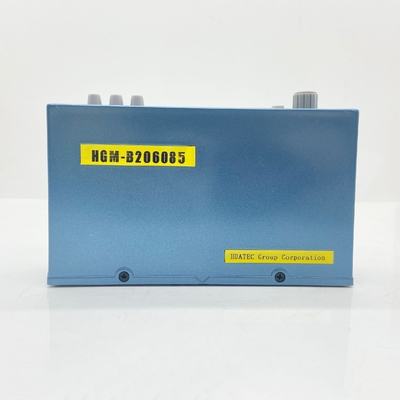

Triangle Gloss Meter Model HGM-B206085
Measurement of Paint and Dope Surface Gloss Meter Model HGM-B206085
Standard
International standard ISO2813, ASTM-D2457, DIN67530 and China standard GB9754, GB9966, GB8807.
The technical parameters follows China metrology standard JJG696-2002.
Application
1. Measurement of Paint and Dope surface gloss on Car, Electronic appliance and Musical instrument industry.
2. Measurement of floor board, marble, granite and ceramic tile gloss on architecture, decoration industry.
3. Measurement of printing ink and paper on Printing and Casing industry.
4. Measurement of the others needs to be measured.
5. Hard drawn aluminum alloys
Features
1. Small and light, real easy to be carried and used.
2. One 1.5 mignon alkaline Battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing for ever.
5. Quartz crystal standard board, no excursion.
6. Zero self-adjustment.
Parameter
| The technical parameters up to JJG 696 (First-level standards). | |
| test range | 0.0-199.9(Ｇs) |
| test accuracy | ＜1.2(Ｇs) |
| stability | 0.4Gs/30min |
| test caliber | 16×48(mm)rectangular |
| size | 138×36×82 (mm) |
| power | 1.5V AA battery |
Instructions

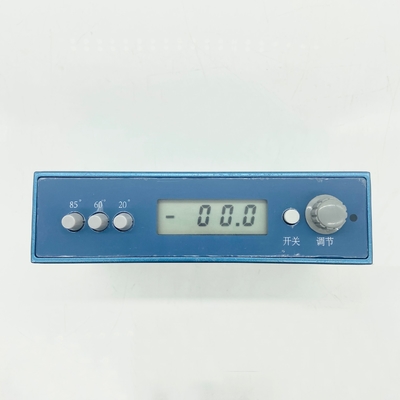

1. Switching meter to open, press the need to test the key point.
2. Operation: Open standards board boxes, and glass will be standard for on-board flat on the table, will center positioning meter, "inverted triangle" signs at the edge groove center, adjust adjustment knobs, meter readings should be the same to the standard black glass plate nominal value (see box corresponding standard plate angle data).
3. Calibration: measuring equipment calibration good white ceramic plate (to be positioning equipment centers "inverted triangle" signs at the edge groove Centre) the corresponding numerical point of the show should not be larger than the standard white ceramic plate nominal value ± 1.2 gloss units, or black and white standards board should check the cleanliness of the surface, or equipment failure. If meter is working well, do not need to make calibration as often.
4. Measurement: Use the good calibration meter to measure the tested samples.

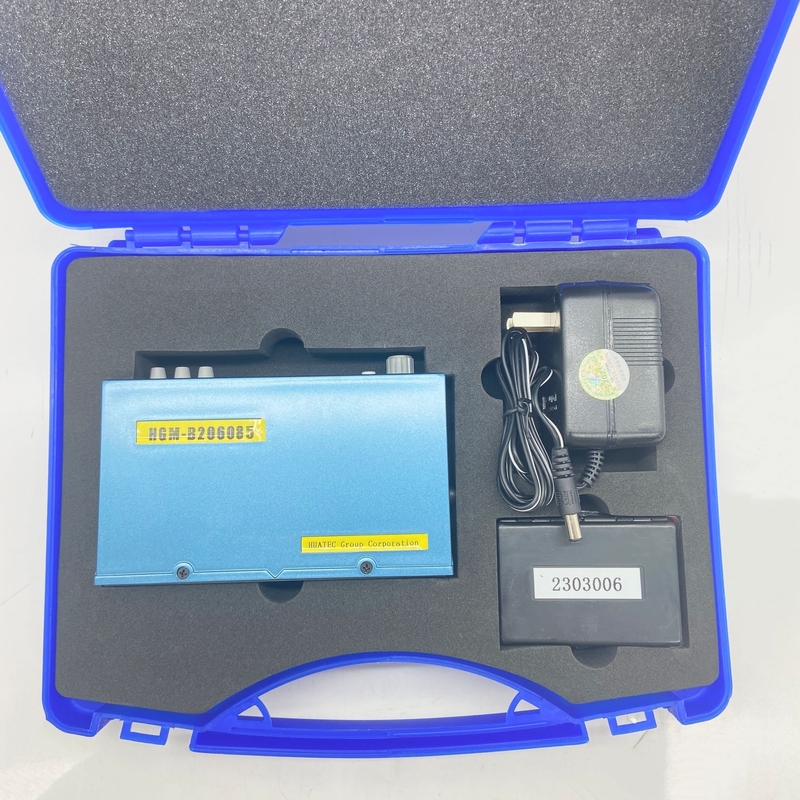

Standard Delivery
| Gloss meter | 1pc |
| Instrument case | 1pc |

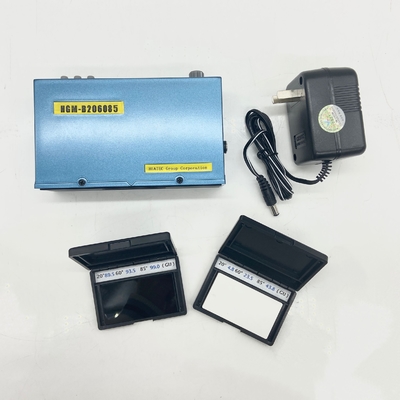

| Standard board |
2pc A black board is used for the highlight calibration A white board is used for the low light calibration |
| English instruction manual | 1pc |
| Calibration certificate | 1pc |
