Product Details:
|
| Frequency: | From 1 To 1280 Hz | Probe: | 5mm And 8mm Probes |
|---|---|---|---|
| Probe Range: | 0~2.0mm | Display: | 3 1/2 Digit Display For Vibration And Frequency |
| Velocity (@20mm/sec Rms): | 40Hz To 320Hz +0.5dB +1digit | Displacement (@50μm Pk-pk): | 40Hz To 320Hz + 0.5dB + 1digit |
| Size: | 300 X250 X210(mm) | Power: | 220Vac (optional 110Vac) |
| High Light: | HG-5026 Vibration Calibrator,Popular Industry Vibration Calibrator,Vibration Calibrator for Popular Industry |
||

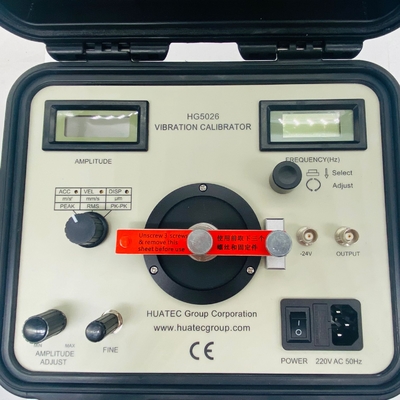

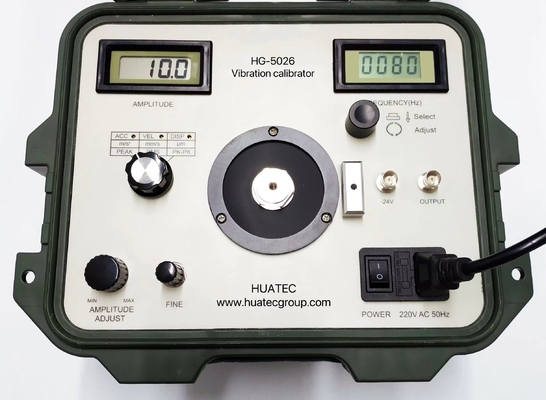

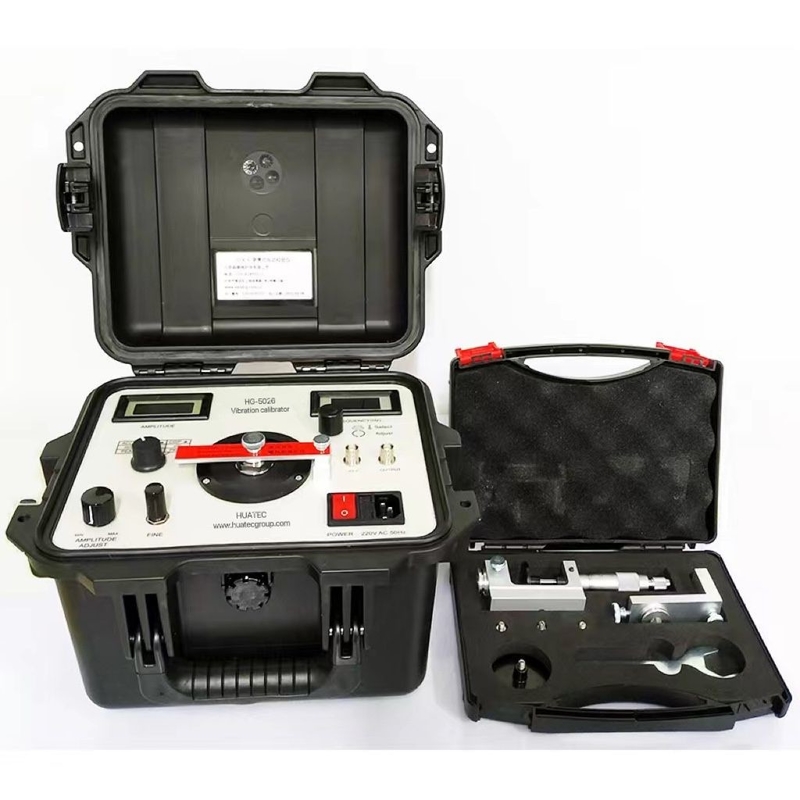

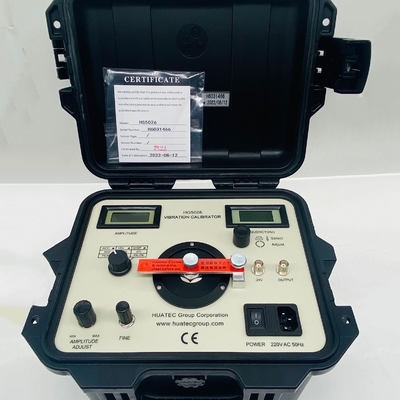

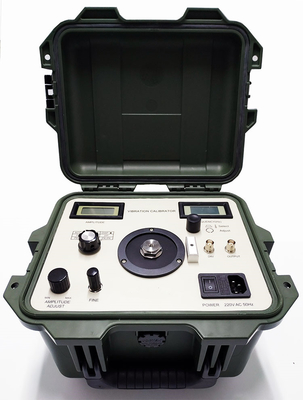

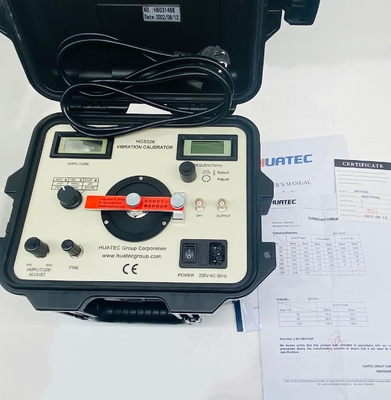

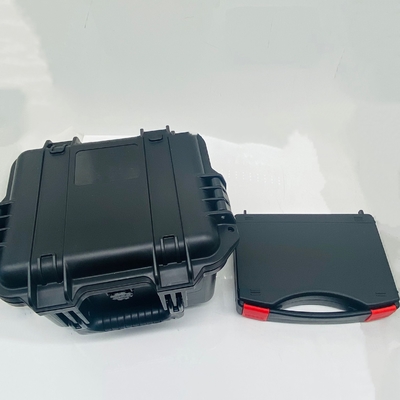

HG-5026 Vibration Calibrator
HG-5026 vibration calibrator can be used to calibrate vibration accelerometer, velocity and
proximity transducer and also a vibration measuring instrument. Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated. HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.
Acceleration (@10m/s2 pk) 40Hz to 320Hz + 0.3dB + 1digit
20Hz to 640Hz + 0.5dB +1digit
Velocity (@20mm/sec rms) 40Hz to 320Hz +0.5dB +1digit
Displacement (@50μm pk-pk) 40Hz to 320Hz + 0.5dB + 1digit

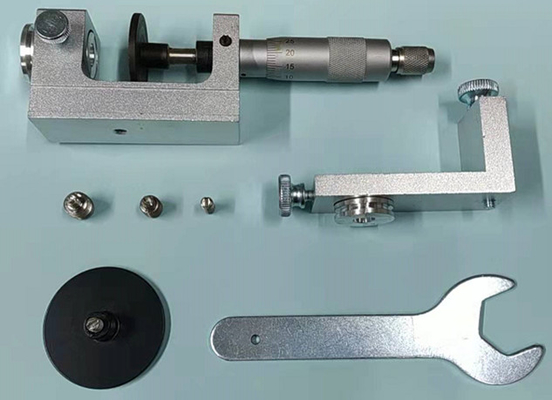

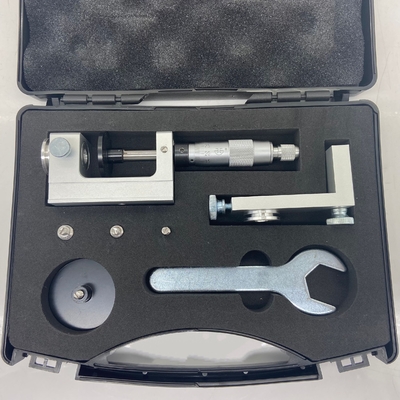

Proximity probe linearity calibration kits
Probe: 5mm and 8mm probes Range: 0~2.0mm
Display: 3 1/2 digit display for vibration and frequency
Maximum vibration amplitude & transducer weight
|
Wt
Freq |
<100g | <250g | <500g | ||||||
| a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | a(m/S2) | v(mm/S) | d(μm) | |
| 10Hz | 2.5 | 28 | 1300 | 3.5 | 40 | 1800 | 4 | 45 | 2000 |
| 20Hz | 15 | 85 | 1900 | 10 | 60 | 1300 | 5 | 28 | 640 |
| 40Hz | 60 | 170 | 2000 | 35 | 100 | 1100 | 12 | 35 | 380 |
| 80Hz | 100 | 141 | 800 | 40 | 60 | 320 | 14 | 20 | 110 |
| 160Hz | 75 | 53 | 150 | 35 | 25 | 70 | 12 | 8.5 | 24 |
| 320Hz | 50 | 18 | 25 | 30 | 10 | 15 | 10 | 3.5 | 5 |
| 640Hz | 30 | 5 | 3 | 20 | 3.5 | 2 | 6 | 1 | * |
| 1280Hz | 23 | 2 | * | 10 | 0.9 | * | 5 | 0.4 | * |
Size: 300 x250 x210(mm) Net Weight: 6 kg
Temperature: Operation: 0oC to 50 oC Storage: -20 oC to 70 oC
Power: 220Vac (optional 110Vac)
