HCDX-Y2 Non Destructive Testing Equipment IP54 Tangential Field Strength -10 To 40℃

Features:

• • Ergonomic, light-weight design

  • IP54 sealed housing resists dust and water

  • Field-swappable power cord

  • Isolated, replaceable trigger switch

  • Steel shields for leg protection

  • Exceeds ASTM lifting specifications

  • Convenient carrying case supplied with all yoke shipments

  • Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs

  • Two power supply modes are optional:

   110V/220V/240V Single-phase AC power supply (straight plug mode);

   DC magnetization power supply (DC battery pack with digital display screen)

  • Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.

Technical Parameters:

The concept of applications extends across various fields, delineating the practical uses and implementations of theories, systems, or products. Applications can range from software that streamlines business processes to engineering solutions designed to tackle environmental challenges.

In the context of technology, the term 'applications' generally refers to computer programs or mobile apps that execute specific tasks for users. These can enhance productivity, enable communication, or provide entertainment, among other functionalities.

Moreover, the application of scientific principles often manifests in innovations that drive industries forward. Whether it's medical research leading to new treatments or the development of renewable energy sources, applications impact daily life and the broader socio-economic landscape.

Applications:

Defect location: Surface Ideal for:

• Field Testing

• Difficult to reach areas

• Spot, weld and in-service inspections Defect examples:

• Seams

• Tears

• Shrink cracks

• Quenching cracks

• Fatigue cracks

Note:“X”not included, “●”included

BENEFITS:

Increase inspector productivity and reduce physical fatigue

• Less arm strain, wrist fatigue and physical stress help operators get more done due to the lightweight and ergonomic design.

• Easily position the yoke in any direction with lightweight, heavy-duty and powerful electronics components.

Keep tools in service with a design that’s built to last

• Cords and triggers can be easily replaced, so work doesn’t stop and tools aren’t scrapped due to accidental damage.

• Prevent dust and dangerous water damage with an IP54 o-ring sealed housing.

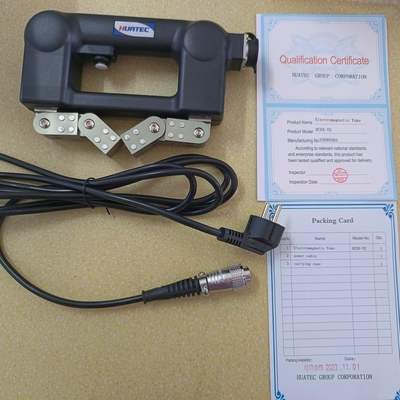

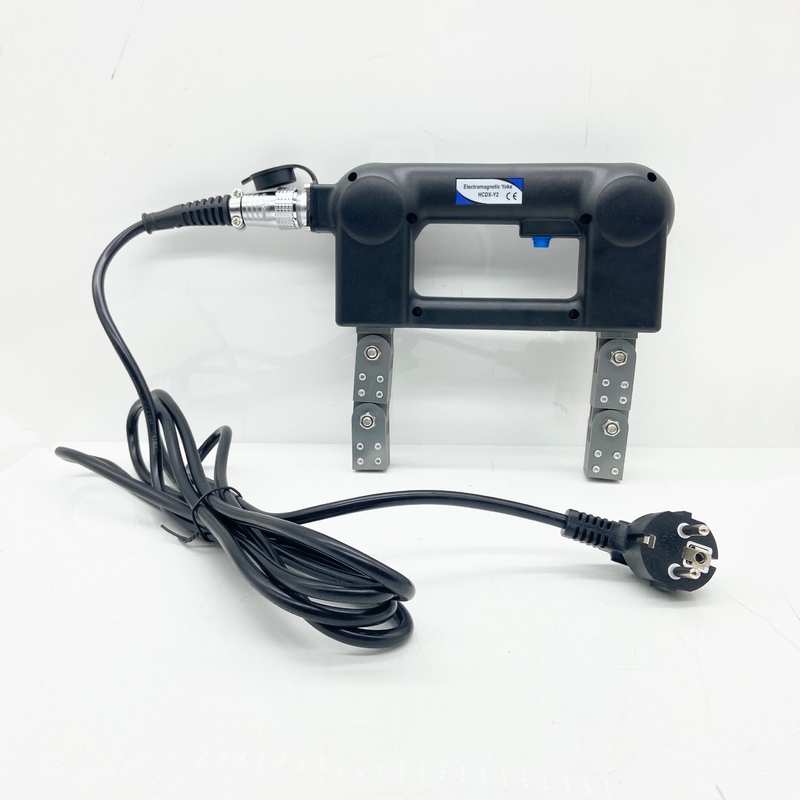

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.
