Handhold Vibration Pen HG-6400

Handhold Vibration Pen HG-6400
Handhold Vibration Pen HG-6400 Handhold Vibration Pen HG-6400 Handhold Vibration Pen HG-6400 Handhold Vibration Pen HG-6400 Handhold Vibration Pen HG-6400 Handhold Vibration Pen HG-6400 Handhold Vibration Pen HG-6400 Handhold Vibration Pen HG-6400

Large Image :  Handhold Vibration Pen HG-6400

Product Details:
Place of Origin: CHINA
Brand Name: HUATEC
Certification: CE ISO
Model Number: HG-6400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: carton
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union，Paypal
Supply Ability: 5000 Set per month
Contact Now

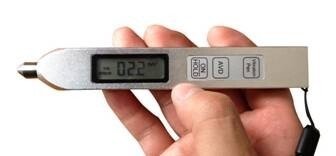

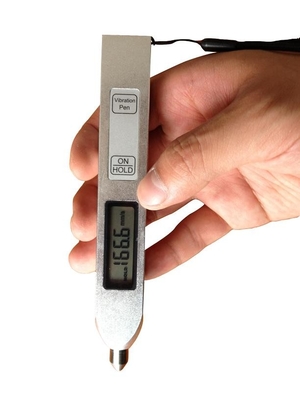

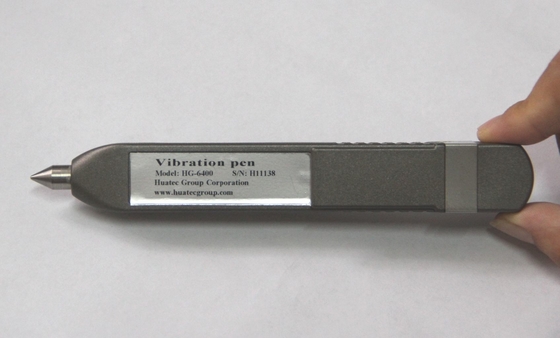

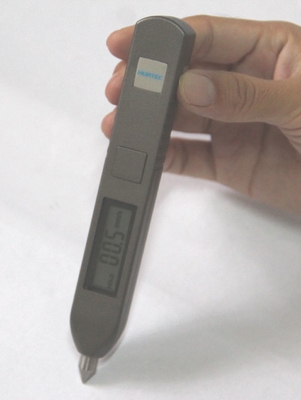

Handhold Vibration Pen HG-6400

Description
Parameters: Velocity Testing Range: Velocity:0.01mm/s-199.9mm/s(RMS)
Frequency Range: Velocity:10Hz~1kHz Accuracy: ±5%
Display: 31/2 Digits LCD Power Supply: Two Button Batteries(LR44 Or SR44)
Battery Capacity: Approx 4.5 Hours Working Continuously Dimension: 150mm*22*18mm
Highlight:

HG-6400 Handhold Vibration pen

,

HG-6400 Vibration pen

,

Handhold Vibration pen

Vibration pen HG-6400



Handhold Vibration Pen HG-6400 0Handhold Vibration Pen HG-6400 1Handhold Vibration Pen HG-6400 2Handhold Vibration Pen HG-6400 3Handhold Vibration Pen HG-6400 4

Features:
• Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
• Compact size, small weight, easy handling
• Prompt testing of vibration on the workshop machines
• For quick checking of unbalance misalignment, bearings and gears
• Guard against mechanical malfunction
• Holding tested value for 40 seconds
• Automatic switch off after 40 seconds


• HG-6400 is used for testing of velocity

Parameters Velocity
Testing range Velocity:0.01mm/s-199.9mm/s(RMS)
Frequency range Velocity:10Hz~1kHz
Accuracy ±5%
Display 31/2 digits LCD
Power supply Two button batteries(LR44 or SR44)
Battery capacity Approx 4.5 hours working continuously
Operating Temperature 0℃~40℃
Humidity ＜85%
Dimension 150mm*22*18mm
Dimension Weight 55g(including batteries)

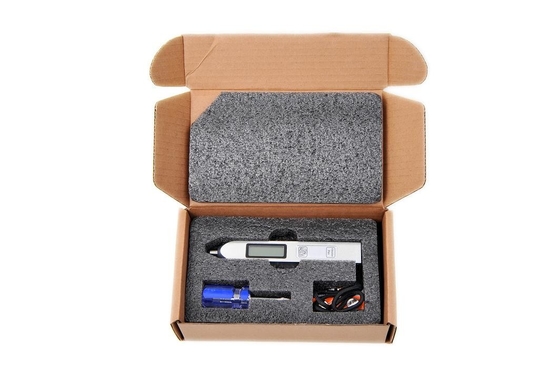

Standard delivery
• Main unit
• Battery
• Protection pocket
• Certificate
• Instruction manual
• Warranty card
