TG-4900DL OLED Color Screen A-scan Snapshot B-scan Thickness Through Coating Ultrasonic Thickness Gauge

TG-4900DL OLED Color Screen A-scan Snapshot B-scan Thickness Through Coating Ultrasonic Thickness Gauge
TG-4900DL OLED Color Screen A-scan Snapshot B-scan Thickness Through Coating Ultrasonic Thickness Gauge TG-4900DL OLED Color Screen A-scan Snapshot B-scan Thickness Through Coating Ultrasonic Thickness Gauge

Large Image :  TG-4900DL OLED Color Screen A-scan Snapshot B-scan Thickness Through Coating Ultrasonic Thickness Gauge

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: TG-4900DL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD1668/set - USD1946/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

TG-4900DL OLED Color Screen A-scan Snapshot B-scan Thickness Through Coating Ultrasonic Thickness Gauge

Description
Display Screen: 2.4-inch 320×240 IPS_LCD Probe Type: Single Crystal、double Crystal
Measurement Mode: P-E（pulse-echo）、E-E（echo-echo） Measuring Range: 0.15～3200mm（Longitudinal Wave Carbon Steel）
Update Rate: 4Hz、8Hz、16Hz、24Hz
Highlight:

OLED color screen Ultrasonic Thickness Gauge

,

B-scan Ultrasonic Thickness Gauge

,

A-scan Ultrasonic Thickness Gauge

TG-4900DL OLED color screen A-scan Snapshot B-scan Thickness Through Coating Ultrasonic Thickness Gauge

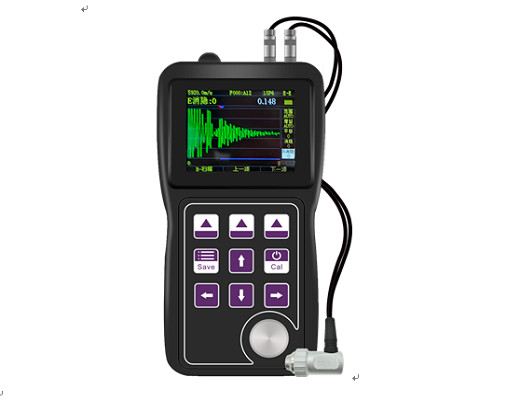

TG-4900DL ultrasonic thickness gauge developed and produced by HUATEC Group adopts OLED color screen ,which has the functions of built-in A-scan snapshot and B-scan thickness function,thickness measurement through coating, large capacity data storage and so on. Based on the principle of ultrasonic measurement, it is a portable industrial nondestructive testing instrument with high precision and high resolution.

The instrument can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields. In addition to accurately measuring all kinds of plates and processed parts, it can also monitor all kinds of pipes and pressure vessels in production equipment to monitor their thinning degree after corrosion in the process of use. It is a necessary instrument in the nondestructive testing industry.

All models of this series of instruments are equipped with A-scan snapshot function as standard, which can help users better control the measurement and avoid wrong measurement caused by the factors of the material itself. This thickness gauge has the function of measuring through the coating: when there is a coating or paint layer on the surface of the measured material, the actual thickness of the workpiece substrate can be obtained without grinding and damaging the surface coating of the workpiece.

Basic Parameters



Bandwidth 1MHz～20MHz
Receiving gain 96dB,step pace1dB or 6dB
Filter Broadband,5M,10M,15M
Update rate 4Hz,8Hz,16Hz,24Hz
Resolution X.X(0.1mm),X.XX(0.01mm)X.XXX(0.001mm)
Measuring range 0.15～3200mm(Longitudinal wave carbon steel)
View mode Normal, difference, maximum value capture
Detection mode Full wave, positive half wave, negative half wave, RF, Invert to RF
Measurement mode P-E(pulse-echo),E-E(echo-echo)
Calibration mode Automatic zero point calibration, automatic sound velocity calibration
Data storage 520 files can be saved, and each file can record 252 sets of thickness values
Auxiliary functions Auto Gain, Auto Range, Auto Blanking E, Auto Freeze, Auto Shutdown (Hibernation),Buzzer alarm, upper computer communication
Probe interface DUAL LEMO-00C5
Probe type single crystal,double crystal
Pulse mode Square waves, two-sided waves
Transmit voltage 25～300V,25V step pace
Pulse width 25～300ns,5ns step pace
Output interface MINI USB,data export to the host computer
Input method Key combination input,support short press and long press recognition
Display screen 2.4-inch 320×240 IPS_LCD
Battery Two 1.5V AA batteries
Size 153mm×76mm×37mm
Weight 228g,no battery
Language Chinese,English
Unit Metric system, English system
Working temperature range -10℃～55℃

Product Features

  • English language interface is optional
  • Supports two thickness units: mm and inch
  • Supports scheduled automatic shutdown and standby sleep
  • The brightness of the screen can be adjusted to adapt to different measurement environments
  • When the probe is coupled with workpiece,the thickness value is displayed in white font
  • Extreme value mode: capture the maximum and minimum value during the measurement process
  • Large capacity data storage function: it can store 90000 thickness values(optional)
  • It can penetrate the coating on the surface of the workpiece and directly measure the substrate thickness of the workpiece (optional)
  • Auto-Gain and Auto-Gate: The automatic measurement echo is displayed on the A-scan interface
  • When the measured value changes from green to white, it will be accompanied by a buzzer tone
  • Thickness alarm: the alarm thickness limit can be set, and the thickness reading color can be changed dynamically during alarm
  • B-scan thickness function: The user can directly observe the change of the thickness of the workpiece with time on the screen
  • Difference mode: obtain the difference between the current measured thickness and the nominal thickness and the percentage between the difference and the nominal thickness
  • User-selectable measurement resolution: X.XXX, X.XX and X.X in metric, X.XXXX, X.XXX and X.XX in imperial

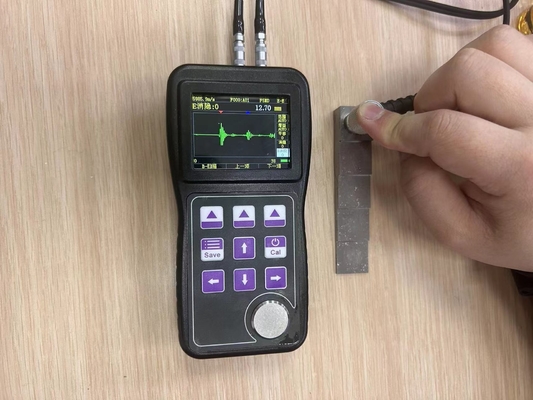

  • A-scan snapshot function: The users can directly see ultrasonic signal waveform on the screen to verify whether the thickness reading is correct,analyse the cause of the problem and help users find a solution to the problem

  • Standard Configurations

    Name Quantity
    Host TG-4900DL 1
    probe Optional
    Alkaline battery 2
    Coupling agent 1
    Instrument sealing box 1
    User Manual 1
    Product warranty card 1
    Product certificate 1





  •

  •

  •

  •

  •

  •

  •

  •

  •

  • Optional Configurations



    TG-4900DL Probe selection
    Model 5PΦ10 5Z20N 15P6
    Type double crystal 5M single crystal 5M single crystal 15M
    Frequency 5MHz 5MHz 15MHz
    Diameter of contact area 10mm 20mm 6.35mm
    Measuring range 1~400.0mm 4～3200.0mm 0.15～25.0mm

    Allowable contact

    temperature

    		 -10～70℃ -10～70℃ -10～70℃
