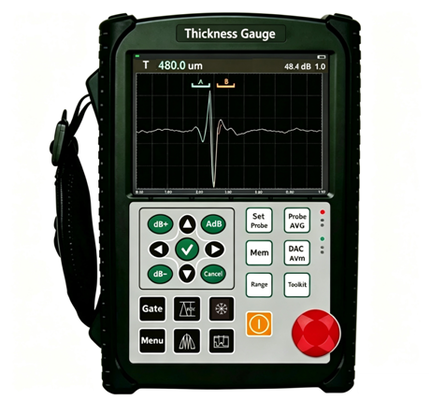

TG-5720 Ultrasonic Thickness Gauge Measure the Thickness of Material Such as Artificial Marble

TG-5720 Ultrasonic Thickness Gauge Measure the Thickness of Material Such as Artificial Marble

★ Full‑process on‑screen prompts and dialog‑box guided interactions for probe calibration and other operations; no manual reference required.

★ Repetition rate: adjustable from 16Hz to10000z for high‑speed scanning.

★ Ultra‑high signal‑to‑noise ratio delivers clear, stable waveforms. Special anti‑interference design enables reliable operation under harsh working conditions.

★ 12‑bit AD high‑speed sampling. Compatible with 15 MHz probes for detection of tiny flaws with superior sensitivity and resolution.

★ IP65‑rated enclosure constructed with alloy‑silicone composite; rugged, dust‑proof and water‑proof.

★ Up to 10 hours continuous operation on single battery charge.

★ Measurement resolution up to 0.001 mm. Minimum measurable thickness: 0.15 mm (steel), 0.05 mm (plastic). Capable of effective measurement through coating layers.

Technical Specifications

1           Main Functions

• One‑touch automatic calibration
• High‑precision thickness measurement: maximum resolution 0.001 mm; repeat resolution ±0.002 mm
• Auto‑gain, echo envelope and peak‑hold functions to improve inspection efficiency
• 500 independent thickness‑measurement channels (expandable)
• Store and playback up to 1000 A‑scan waveforms and datasets (expandable); export inspection reports in PDF format; reports viewable without dedicated PC software
• External USB flash‑drive support. Internal stored data can be exported at any time; unlimited inspection‑file storage via external USB drive
• Adjustable transmit pulse width and amplitude
• High‑performance eco‑friendly lithium‑ion battery; up to 10 hours continuous runtime for standard configuration
• Real‑time clock: inspection date‑and‑time stamped and saved with data
• Digital suppression with no impact on gain and linearity
• Gain compensation: compensates dB attenuation caused by rough surfaces, long‑range inspection on thick workpieces and other factors
• Echo‑sequence analysis
• Screen freeze / unfreeze
• Waveform filling
• Battery‑status indicator
• Capture marker
• Waveform color marking inside gates
• Gate zoom‑in

2           Standard Accessories

‑ One standard thickness‑measurement probe

3           Optional Accessories
