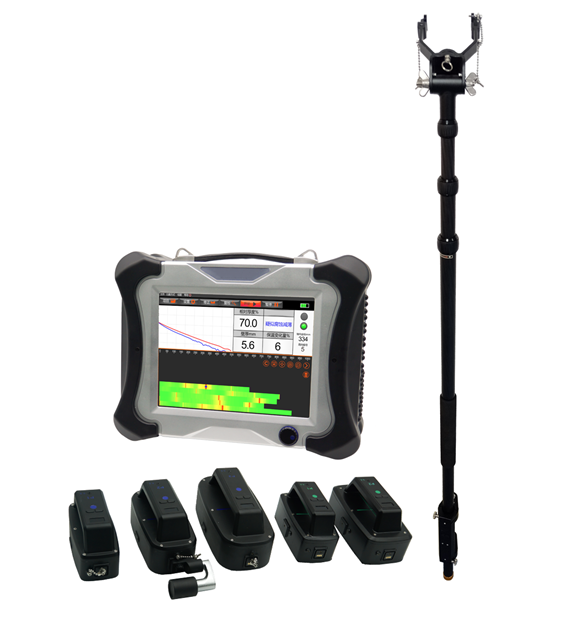

HEF-17 Pulse Eddy Current Testing Instrument
Brief introduction

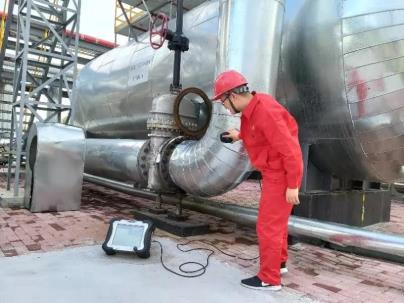

The equipment can be used for in-service inspection of metal pipe wall thickness outside the cladding layer, it instead of traditional sinusoidal current incentives to pulse current, pulse magnetic field outside the conductor, the conductor in the pulsed eddy current sensor, by measuring the attenuation process of pulsed eddy current electromagnetic field, to assess the degree of corrosion of pipe wall thickness compared with the traditional NDT methods of corrosion, without removing pipe outsourcing cladding on the inspection equipment without stopping, can significantly improve the detection efficiency, and reduce the test cost.
Functional features
There are shortcut keys and LCD screen on the probe, which can display the working status and detection data in real time, and the work efficiency is greatly improved without frequent operation of the host during the detection process.
The probe adopts electronic focusing technology, which has higher spatial resolution, greater recognition, and stronger anti-interference ability for local corrosion defects.
Not sensitive to the shape of defects, it can detect the wall thickness corrosion or other thickness reduction defects of metal members "with cover layer (insulation layer, cooling layer, protective layer, etc.)".
Inspections can be done when the equipment is running (High temperature, low temperature, materials in the equipment etc.)
Materials that was detected: Detection of remaining wall thicknesses ferromagnetic metal material such as carbon steel, low alloy steel
It can also detect the remaining wall thicknesses of stainless steel, aluminum alloy and other non-ferromagnetic metal materials
Cladding materials: Non-conductive, non-magnetic materials( asbestos, foam etc.), metal mesh, iron, aluminum and other protective layer.
AC/DC hybrid power supply, built-in rechargeable lithium battery continually working more than 8 hours.
Fully sealed IP64 anti-dust and anti-splash design, silicone sheath anti-drop and anti-vibration design, more suitable for harsh working conditions.
Technical parameters
| The max thickness of cladding layer |
with stainless steel or aluminum protective layer ≤300mm,with iron protective layer ≤150mm |
| The max detection of wall thickness |
2～100mm |
| Diameter of the pipe |
≥21mm |
| The thickness of metal protective layer |
≤1mm |
| Repeated detection accuracy |
2% |
| Corrosion defect detection sensitivity |
5% (volume ratio) |
| Measuring speed |
15~0.5 time/s (reducing with the increasing measured wall thickness) |
| The length of probe cable |
5m, 30m (optional) |
| Built-in rechargeable Lithium battery |
continually working more than 8 hours |
| Size and Weight |
Host:L346×W278×H136mm 7kg,
Type P1/small probe: L106×W61×H52mm 0.5kg,
Type P2/medium probe: L148×W73×H92mm 1kg,
Type P3/large probe: L186×W95×H97mm 1.5kg. |
| Temperature of the tested medium |
-200～800℃ |
| Working temperature |
-10℃～50℃ |
| Humidity |
≤85%R.H |
| Adapter power supply |
single phase AC100～240V,50Hz±1% |
| Power dissipation |
≤100VA |
Model and Configuration
|
Item
|
Name
|
Unit
|
Quantity
|
Notes
|
|
1
|
Main unit (including data cable, charger)
|
Set
|
1
|
Standard
|
|
2
|
Carbon steel probe (C.S: smaller, medium, larger, including 5m cable)
|
Group
|
1
|
Standard
|
|
3
|
Stainless steel probe (S.S: smaller, medium)
|
Group
|
1
|
Optional
|
|
4
|
Wear-resistant temperature-isolation probe boots (smaller, medium, larger)
|
Group
|
1
|
Optional
|
|
5
|
Carbon steel bare tube high resolution probe (including handle)
|
Piece
|
1
|
Optional
|
|
6
|
Stainless steel bare tube high resolution probe
|
Piece
|
1
|
Optional
|
|
7
|
Carbon steel six-channel array probe (C.S)
|
Piece
|
1
|
Optional
|
|
8
|
Stainless steel six-channel array probe (S.S)
|
Piece
|
1
|
Optional
|
|
9
|
Probe length cable 30m
|
Piece
|
1
|
Optional
|
|
10
|
Probe extension rod
|
Piece
|
1
|
Optional,3m or 5m
|
Packing list
Main unit( Containing data cable, charger) 1 Set
Carbon steel probe (C.S: smaller, medium, larger , including 5m cable) 1 Group
Stainless steel probe (S.S: smaller, medium) 1 Group
Wear-resistant temperature-isolation probe boots (smaller, medium, larger) 1 Group (optional)
bare tube high resolution probe (including handle) 1 Piece (optional)
Stainless steel bare tube high resolution probe 1 Piece (optional)
Carbon steel six-channel array probe (C.S) 1 Piece (optional)
Stainless steel six-channel array probe (S.S) 1 Piece (optional)
Probe length cable 30m 1 Piece (optional)
Probe extension lever 3m 1 Piece (optional)
Operating manual 1 Book
Factory test report 1 Copy
Instrument case/bag 1 Piece
