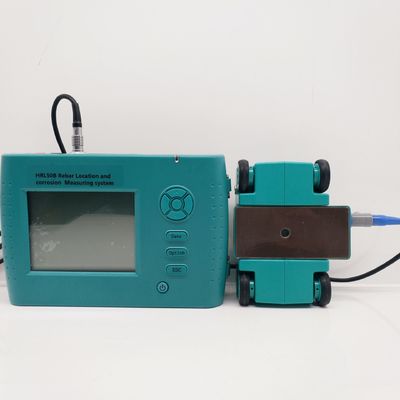

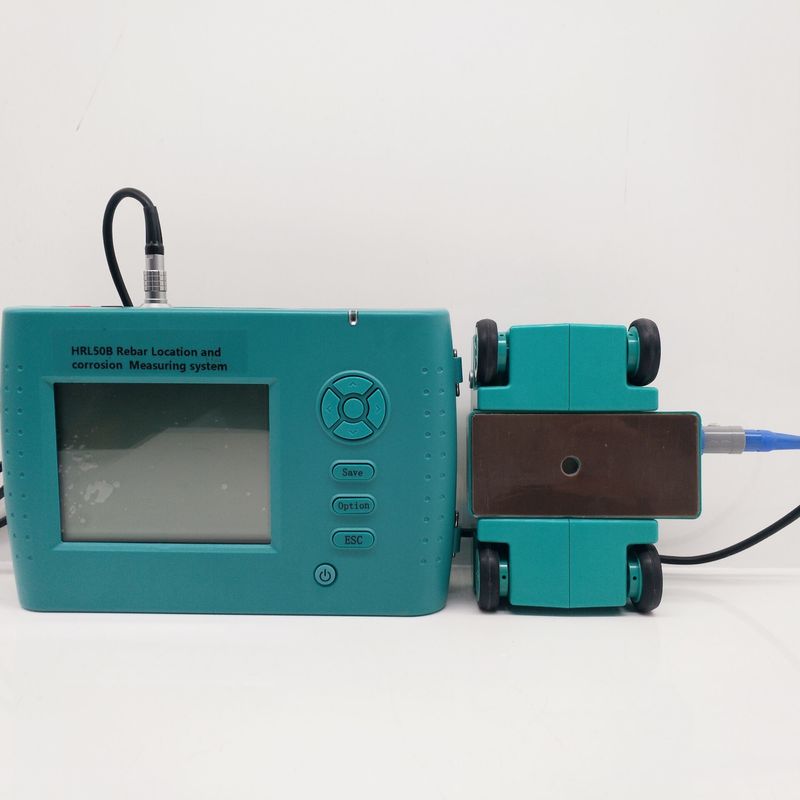

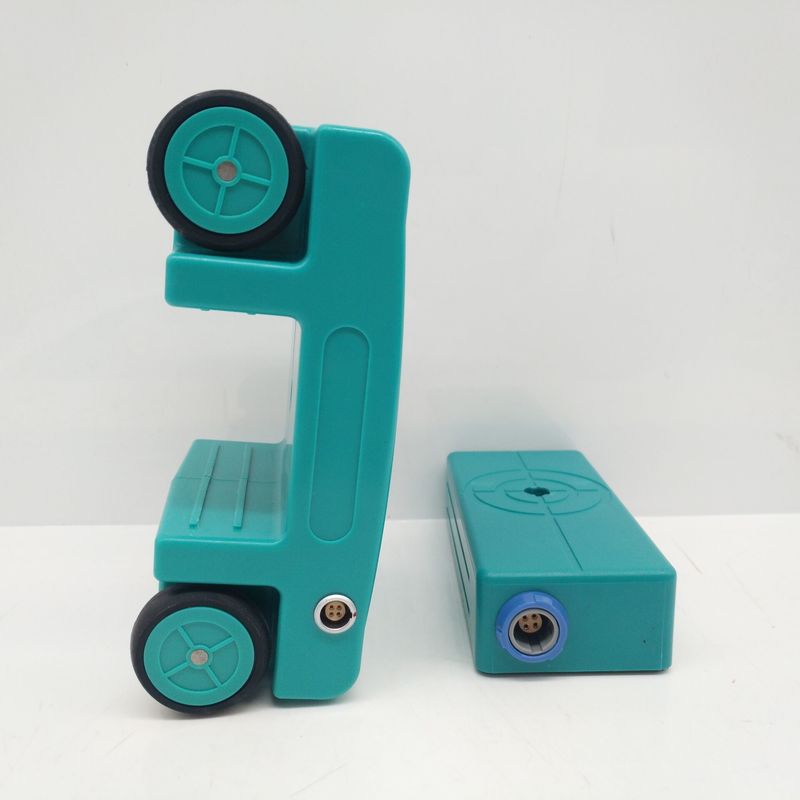

HLT-210+ Concrete Cover Thickness Reinforcement Position Tester

Large Image : HLT-210+ Concrete Cover Thickness Reinforcement Position Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HLT-210+

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD920/set - USD1040/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HLT-210+ Concrete Cover Thickness Reinforcement Position Tester

Description

Bar Diameter Application Range(mm):

Φ6 – Φ50

Maximum Value Permissible Error Of Bar Diameter:

≤±1

First Measuring Range (mm):

6 - 90

Second Measuring Range (mm):

7-180

Highlight:

Concrete Cover Thickness Tester

Concrete Cover Thickness Reinforcement Position Tester

HLT-210+ Concrete Cover Thickness Tester

HLT-210+ Concrete Cover Thickness Reinforcement Position Tester

Features

·investigation depth could reach 180mm

·Single comprehensive probe. No need to replace during test.

·back-lit screen let instrument can be normal used under the condition of insufficient light

·Machine software is complete .The report could be printed automatically connecting with computer

Technical Specification

Bar diameter application range(mm)				Φ6 – Φ50
maximum value permissible error of Bar diameter				≤±1
Protective layer thickness measuring range
The first measuring range (mm)				6 - 90
The second measuring range (mm)				7-180
The maximum error of reinforced protective layer thickness test value
The first measuring range (mm)	The second measuring range (mm)
6 - 59	7 - 79			≤±1
60 - 69	80 - 119			≤±2
70 -90	120 - 180			≤±4
Standard Delivery			Optional Accessory
Main unit, Software USB connecting cable Power charger Carborundum stone Instruction manual Warranty card		1 1 1 1 1 1	Printer Power Charger for printer (9V/2V)

Work environment condition

No strong alternating electromagnetic field

No corrosive gas in the air.

Avoid larger vibration and impact
Avoid the LCD panel contact with sunlight directly

Product usage
Testing concrete cover thickness
Test concrete member internal reinforcement position; rebar spacing, reinforcement position distribution.
Estimation bar diameter
Detection of Cable and Plumbing pipe
HLT-210+ Concrete Cover Thickness Reinforcement Position Tester 0
