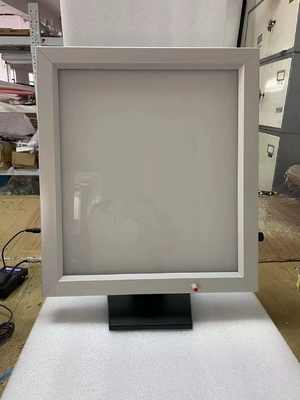

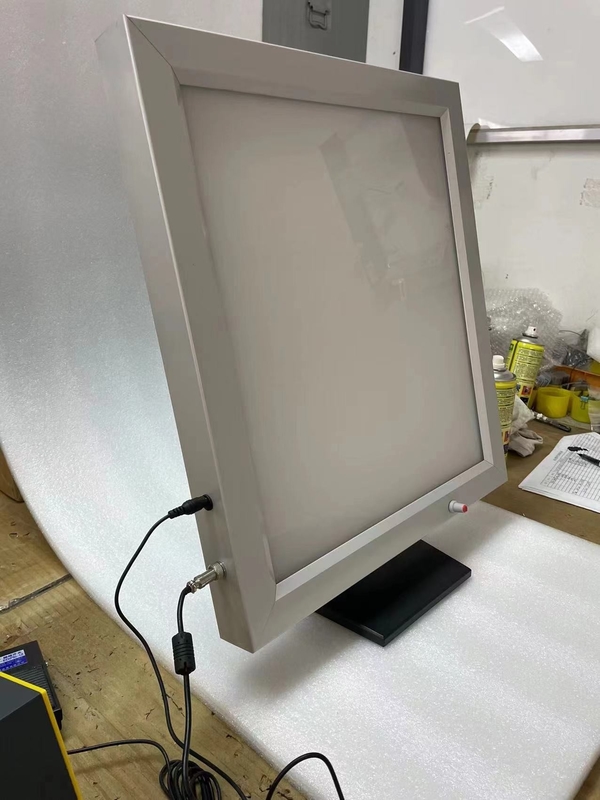

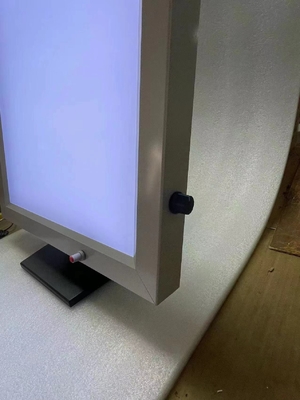

HFV-700C 14x17 Inch Large Size Industry Film Viewer

Large Image : HFV-700C 14x17 Inch Large Size Industry Film Viewer

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HFV-700C

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD1150/set - USD1300/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HFV-700C 14x17 Inch Large Size Industry Film Viewer

Description

Window Size:	360×430mm （14x17inch）	Darkness:	2.9-5.0D
Brightness:	70000- 118000cd/m2	Light Working Life Time:	>100000 Hours
Light Adjustment:	Knob Adjustment	Start Way：:	Foot Switch
Highlight:	14x17inch Film Viewer , HFV-700C Film Viewer , Industry Film Viewer

HFV-700C 14x17inch Large size Industry Film Viewer

The excellent selected material

the viewer’s viewing screen and optical path material are all adopted of Acrylic glass plate manufactured by Japan Mitsubishi Liyan Co. Beyond the glass has a light transmittance and durability to ensure the non-deformation, do not change color.

Using the latest technology abroad

It adopts the newest backlighting technology of color LED

Standards conforming: GB/T4730-2005, GB/T7903-1999

Technical Specifications

Dimensions(W×H×D)	495×430mm
Window size	360×430mm (14x17inch)
Lamp source	Color LED
Power Supply	≥200W
Darkness	2.9-5.0D
Brightness	70000- 118000cd/m²
Light working life time	>100000 hours
Light temperature	>10000K, blue light
Uniformity of viewer	≥90%
Light adjustment	Knob adjustment
Power:	220V 50Hz
Weight	8Kg
Start way:	Foot switch

HFV-700C 14x17 Inch Large Size Industry Film Viewer 0
