HUATEC HRD-100 Portable Wire Rope Flaw Detector Computer Windows System

HUATEC HRD-100 Portable Wire Rope Flaw Detector Computer Windows System

Specification
1. For inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8")
standard size is 10-30mm, other different sensor could be customized.
2. Speed along the rope during inspection - from 0 to 6 m/s (0 to 6,54 yards/s)
3. Onling detect rope’s flaw like booken,abrasion,corrosion,distortion,skip steel wire
etc.
4. The test value could display broken quantity and broken area
5. USB interface sampling and analysing, online sound alarm and display test value

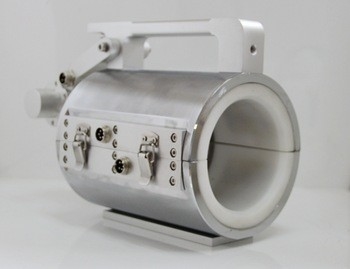

6. Sensor is circle shape, circumference encircle,axial magnetization, make the steel
7. Sensor is metal shell,waterproof,dustproof, quakeproof, dampproof.
8. High stability, reliable feature, high precision, anti-interference, data accuracy
9. Software is apply to Windows98／2000／xp／Vista/windows7 many kinds of PC
system
10. Certificate standard is meet ASTM1571
11. Widely use in Mine, sodo, hoisting equipment, elevator, port machinery, cable
bridge etc.
12. Size 330 x 235 x 190 mm (13" x 9,3" x 7,5 ")
13. Weight 15 kg (33 lbs)

Features

• Test range(closed style sensor): Φ1.5—300 mm (standard size is 10-30mm, other different sensor could be customized)
• The relative speed of sensor and the wire rope is 0.0—6.0 m/s, optimal:0.3—1.5 m/s
• The best space of sensor’s guide bushing and wire rope is 2—6 mm, allowable space:0—15mm
• Dual-function: LMA and LF capability
• Speed does not affect readings
• Accurate distance wheel assembly
• Easy to install and re-install
• Easy to handle and fix on the rope
• 3 changeable hall sensor units
• Temperature range -10 +50°C
• PC software control directly, continuously testing rope length more than 10000m
• Power: AC 220V±10％
• Working temperature: -20℃～40℃
• Storage temperature: -40℃～60℃
• Relative humidity: ≤90％RH

Typical applications but not limited with:

Inspection of mining ropes, aerial ropeways (mostly ropes of chairlifts and gondola lifts), guy (suspension) ropes of bridges.

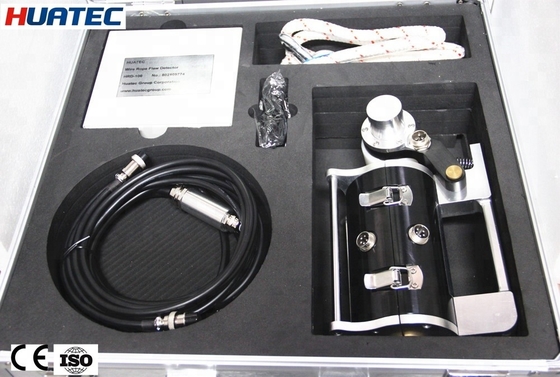

Standard accessories

Probe　　 　1pc　　             Real time alarm 　　　 　1pc
Signal cable 1pc　　 　         HRD PC analyse software 　 1set
laptop(optional)　 1pc 　   　Communication cable 　 1pc
Charger　　　　　　 1pc     Tool 1set
Instruction manual       1set
