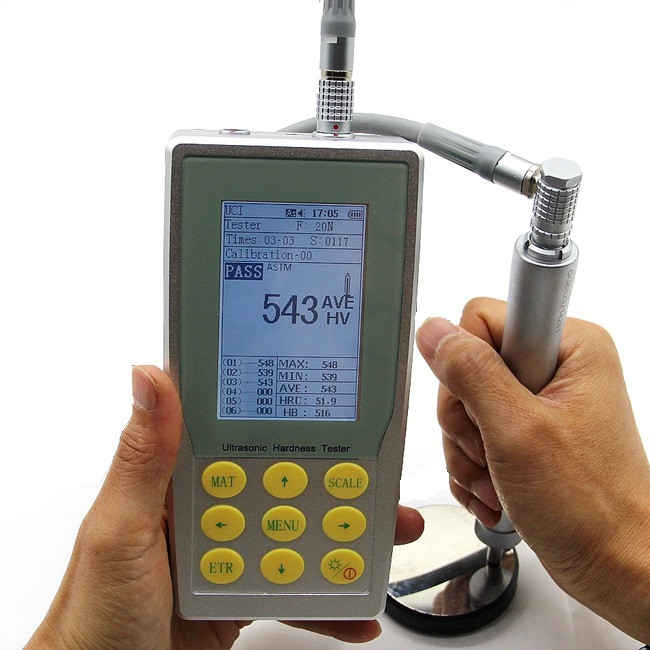

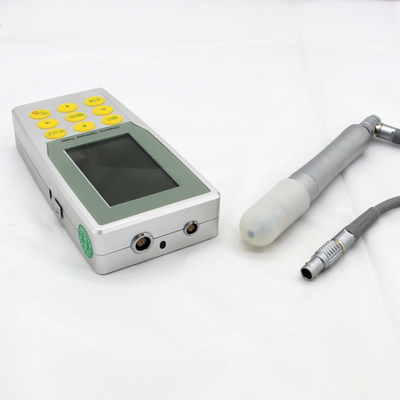

HUH-5M Manual Probe UCI Ultrasonic Hardness Tester
Application:
Ultrasonic hardness tester model HUH-5M is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitride stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.
Working principle:
ultrasonic contact impedance method
Specifications:
| Product Name |
Ultrasonic Hardness Tester (UCI) |
| Model Name |
HUH-5M |
| Loading Force |
10N/20N/50N/98N |
| Indenter Type |
136°Vickers Diamond Indenter |
| Measuring Range |
HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6
HS: 34.2-97.3;Mpa: 255-2180N/mm
|
| Measuring Accuracy |
HV:±3%HV; HRC:±1.5HRC; HB:±3%HB; HLD:±5HLD; |
| Measuring Direction |
Support 360° |
| Data Storage |
To save 1000-groups of measuring data and 20-groups of calibration data |
| Hardness Scales |
HV,HB,HRC, HLD |
| Data Display |
Loading force, Testing-times, Testing result, Average,
Maximum,Minimum,Deviation and Conversion scale. |
| Hardness Indication |
LCD display |
| Operating Environment |
Temperature:-10℃~50℃; Humidity: 30%~80%R.H |
| Operating Voltage |
DC 6V |
| Instrument Dimensions |
160x80x31mm |
| Net Weight |
Approximate 500g(Without probe) |
Features for manual probes above:
● Latest ultrasonic sensor technology
● Which can obtain accurate hardness value without auxiliary devices
● Support 360° quick measuring operation
● Excellent human engineering design and easy to hold
● Suitable dimension and weight of probe which is convenient to control
● Quick and accurate measuring for edge and fixed position of specimen to be tested
● Micro indentation, Non- Destructive for any specimen after testing
Main Features:
● Handheld Hardness measurement commonly used like Brinell, Rockwell, Vickers, Leeb, etc.
● Rockwell and Brinell hardness testing with heavy loading force and big indentation, lead to serious destruction on sample surface.
● Vickers hardness apply optical measurement, professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.
● Leeb hardness testing apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Brinell, Rockwell and Vickers scales.
● Ultrasonic hardness tester model HUH-5M applies ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.
Standard Delivery:
| Standard Delivery |
quantity |
Standard Delivery |
quantity |
Standard Delivery |
quantity |
Standard Delivery |
quantity |
| HUH-5M main unit |
1 |
Probe Cable |
1 |
Anti Vibration Case |
1 |
English Operation Manual |
1 |
| 50N/98N Manual probe |
1 |
Com Cable |
1 |
Screw |
1 |
Warranty Card |
1 |
| Standard Rockwell Block |
1 |
USB Cable |
1 |
Qualification Certificate |
1 |
Packing List |
1 |
Manual Probe Specifications:
| Probe Type |
UCI-1K |
UCI-2K |
UCI-5K |
UCI-10K |
| Testing force |
10N |
20N |
50N |
98N |
| Diamter |
22mm |
22mm |
22mm |
22mm |
| Length |
154mm |
154mm |
154mm |
154mm |
| Oscillating Rod Diameter |
2.4mm |
2.4mm |
3mm |
3mm |
| Roughness of measuring surface |
Ra<3.2um |
Ra<5um |
Ra<10um |
Ra<15um |
| Min weight of test material |
0.3kg |
0.3kg |
0.3kg |
0.3kg |
| Minimum thickness |
2mm |
2mm |
2mm |
2mm |
Motorized Probe Specifications:
| Probe Type |
UCI-300 |
UCI-500 |
UCI-800 |
UCI-1000 |
| Testing force |
3N |
5N |
8N |
10N |
| Diamter |
46mm |
46mm |
46mm |
46mm |
| Length |
197.5mm |
197.5mm |
197.5mm |
197.5mm |
| Oscillating Rod Diameter |
3.7mm |
3.7mm |
3.7mm |
3.7mm |
| Min weight of test material |
0.3kg |
0.3kg |
0.3kg |
0.3kg |
| Minimum thickness |
2mm |
2mm |
2mm |
2mm |
