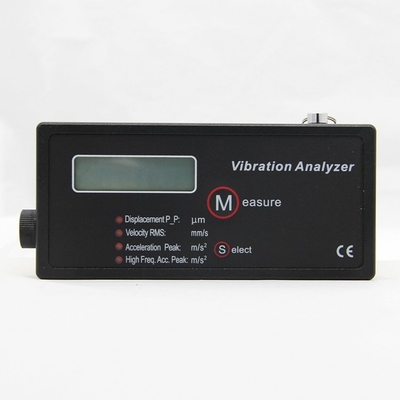

HG908
Vibration Analyzer
True RMS measurement
4 parameters Metric version
Features:
• Measuring vibration velocity, displacement,
acceleration and high-frequency acceleration
• Small size, transducer included,
battery powered, Accelerometer may be
integrated or external cable connected.
• One button control both power and
measurement. Very easy to use.
• 3 1/2 LCD digital display, sampling
per second.
• Holding function.
• Automatic power off.
• True RMS measurement.
• Suitable for monitoring machinery
vibration caused by imbalance,
misalignment, gear & bearing
faults and etc.
Specifications:
• Amplitude Ranges:
Displacement 1—1999 m m (or 200 mil) Eq. peak-peak
Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS
Acceleration 0.1—199.9 m/s2 (or 20 g) Eq. Peak
High Frequency Acceleration: 0.1—199.9 m/s2 (or 20 g) Eq. Peak
• Overall accuracy: ±5%
•Temperature range: 0 - 50°C
• Frequency response:
Displacement 10-1000Hz
Velocity 10-1000Hz
Acceleration 10-1000Hz (908B)
10-5000Hz (908)
High Frequency Acceleration: 1000-5000Hz ±10%
• Configuration:

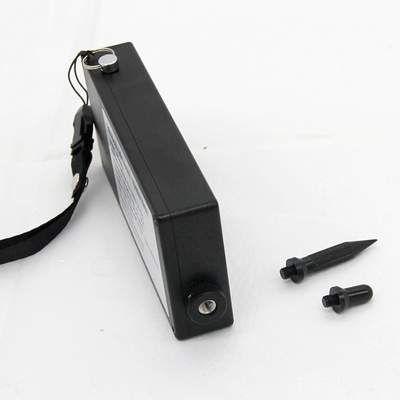

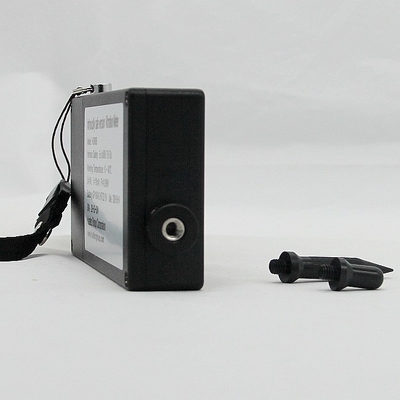

HG908B: Integrated accelerometer with handheld probe

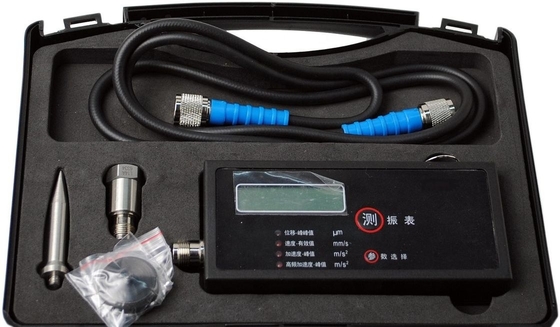

HG908: Outside accelerometer with magnetic mount & probe
• Battery: 9V 6F22/Rechargeable, 25/10 hours of continuous operation.
• Pickup: Accelerometer with handheld probe and/or magnetic mount
• Dimensions: 13×6×2.3 cm; Weight: 200 g

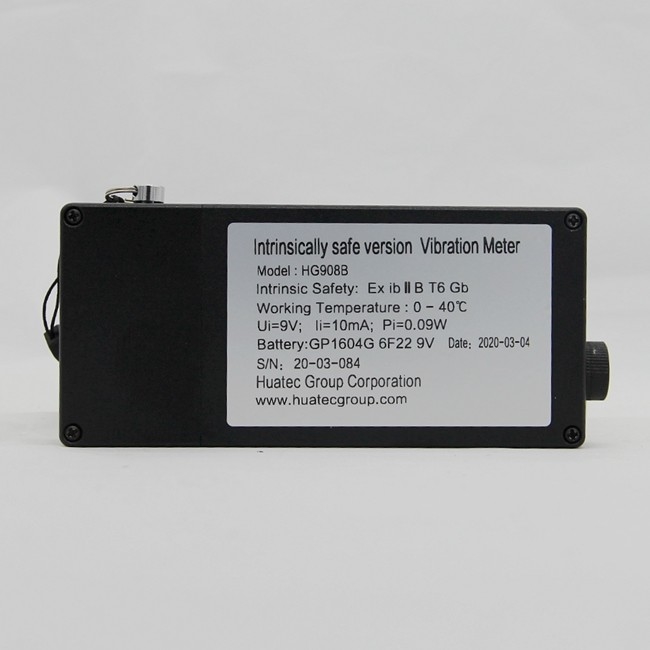

• Optional Intrinsically safe version with internal accelerometer
