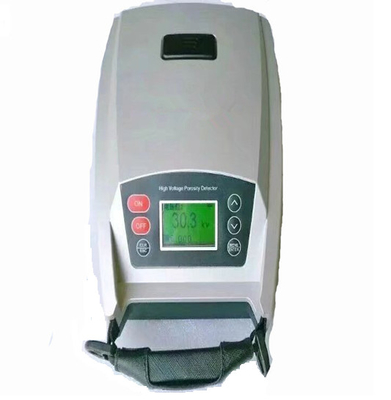

HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector

HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector
HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector

Large Image :  HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HD-105A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD1495/set - USD1559/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector

Description
Test Voltage Range: 1KV～50KV Thickness Range: 0.1～35mm
Resolution: 0.1KV Voltage Precision: ±（0.1kv+3%）
Max Leak Record: 999 Maximum Display: 128*64 LED Screen With Backlight
Power: ≤6W Voltage Of Adapter: Input AC 100-240V Output 12.6V 1A
Highlight:

LED screen Protecting Coating Holiday Detector

,

Pulsed High Voltage Holiday Detector

,

HD-105A Holiday Detector

HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector



1.1 What is HD-105A

HD-105A holiday detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±(0.1KV+3%reading).It can adjust its value of voltage according to the thickness of protecting coating. HD-105A use lithium battery for power source, it is also can be used in field.

1.2 Theory

When high voltage probe brushed pass non conductive coating, If the coating is too thin or metal has leakage or pinhole, the air gap will be punctured and produce spark discharge when pulse high voltage. At same time, detector will record leak number.

1.3 What it can be used on?

The equipment design of HD-105A is advanced, stable and reliable, which can be widely used in chemical industry, oil, rubber and enamel, so it is an essential tool used to detect metal anti-corrosion coating quality.



Parameter

Test voltage range 1KV～50KV
Thickness range 0.1～35mm
High voltage output Pulse
Voltage display 3 digit
Resolution 0.1KV
Voltage precision ±(0.1kv+3%)
Max leak record 999 maximum
Way of alarming Headphone buzzer and light
Shutdown Auto and Manual
Display 128*64 LED screen with backlight
Power ≤6W
Size 240mm*165mm*85mm
Battery 12V 4400mA
Working time ≥12 hours(Max voltage)
Charging time ≈4.5 hours
Voltage of adapter Input AC 100-240V
Output 12.6V 1A
Probe wire Close to 1.5m
Earth lead wire 2*5m black/black
Fuse 1A

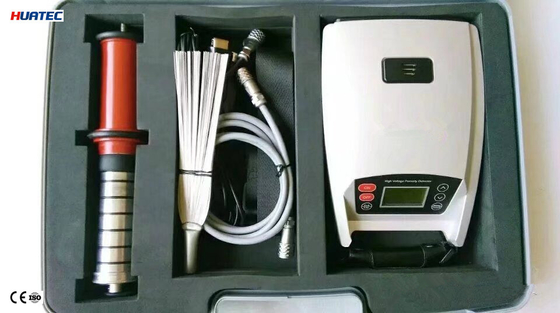

HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector 0HD-105A Intelligence Pulsed High Voltage LED screen Protecting Coating Holiday Detector 1
