PSM-5 Five Point Fluorescent Penetration Reference Test Block

Large Image : PSM-5 Five Point Fluorescent Penetration Reference Test Block

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	PSM-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD281/set - USD318/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

PSM-5 Five Point Fluorescent Penetration Reference Test Block

Description

Depth:

106µm

Width:

0.2~0.5µm

Oxidizing Property:

In -55℃ ~ 200℃ - Store Between Three Years Not Metamorphism,no Oxidation,colour And Lustre Is Silver

Material Standard:

ISO 10474-3.1.B,JIS G 0415-3.1.B

Highlight:

Five Point Reference Test Block

Fluorescent Reference Test Block

Penetration Reference Test Block

PSM-5 Five point Fluorescent Penetration Reference Test Block

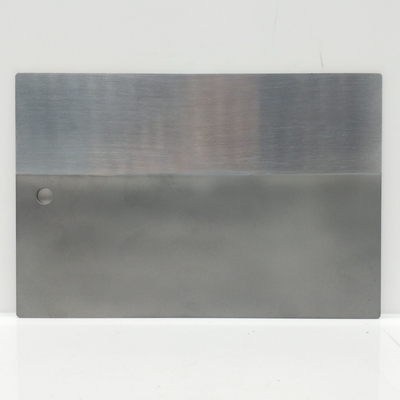

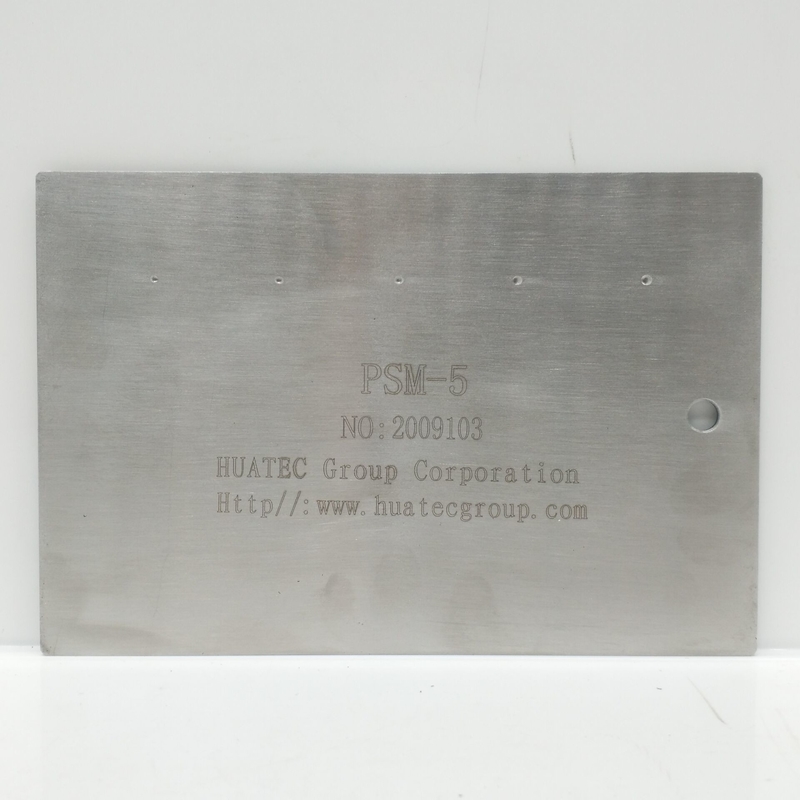

The five point test piece is used to verify the sensitivity of the penetrant and the accuracy of the operating process. At the same time, the test block has a rough surface in the sandblasting area, which is used to verify the cleaning performance of the penetrant and the accuracy of the cleaning method. Its sensitivity is determined by the number of defects displayed and the diameter of each point and its radial domain.

Specification	All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated.
Material:	Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B
Depth	106µm
Width	0.2~0.5µm
Oxidizing property	In -55℃ ~ 200℃ - store between three years not metamorphism,no oxidation,colour and lustre is silver
TRACEABLITY	Calibration standards used are traceable to international standards

PSM-5 Five Point Fluorescent Penetration Reference Test Block 0
