Visual Testing Welding Gauge Kit Non Destructive Testing Equipment

Large Image : Visual Testing Welding Gauge Kit Non Destructive Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	KIT-1 KIT-2 KIT-3 KIT-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD49/set - USD170/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

Visual Testing Welding Gauge Kit Non Destructive Testing Equipment

Description

Usage:

Welding Inspection

Material:

Stainless Steel

Highlight:

Visual Testing Welding Gauge Kit

Welding Gauge Kit

Visual Testing Welding Gauge Kit

VISUAL TESTING (VT) Is the observation, either directly or indirectly (remotely), of a specimen by an Inspector in such a fashion as to determine the presence or absence of surface discontinuities or irregularities.
The weld gauge is mainly composed of main ruler, height ruler, undercut depth ruler and multi-purpose ruler. It is a welding inspection gauge used to measure various groove angles, heights, widths, gaps and undercut depth of weldments. It is applicable to the measurement and inspection of boilers, bridges, shipbuilding, pressure vessels and oil field pipelines. It is also suitable for measuring parts with high welding quality requirements.

HUATEC KIT-1

7pcs per kit

Including::

1-15mm taper gage:

0-150mm vernier caliper

0-15mm caliper

6X magnifier

V-WAC edge biting gage

AWS gage

MG-11

HUATEC KIT-2

5pcs per kit

Including:

Light torch

V-WAC edge biting gage

15-30mm taper gage

Inspection mirror

Hi-Lo gauge

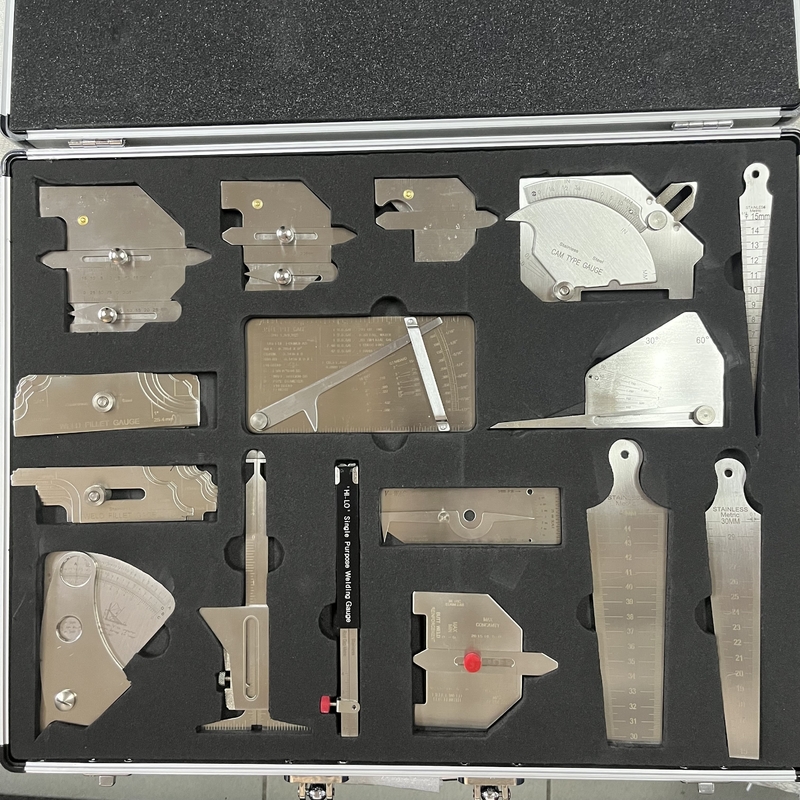

HUATEC KIT-3

16pcs per kit

Including:

HJC-60

HJC-40A

HJC-40

MG-8

MG-11(Metric) MG-11(mm/inch)

Pipe pit gage

Fillet welding gage

1-15mm Taper gage

15-30MM Taper gage 30-45mm Taper gage

Fan-shape gage

Hi-Lo gage 2 types

V-WAC edge biting gage

AWS gage

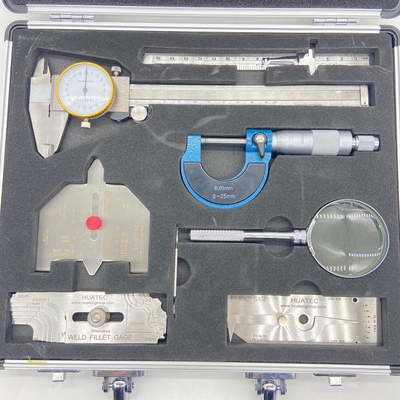

HUATEC KIT-4

13pcs per kit

Including:

V-WAC edge biting gage

MG-11

MG-8

Hi-Lo gauge 2 types

Inspection mirror

Micrometer

AWS gage

Welding seam gauge

HJC-45B

Fillet welding gage

Others
