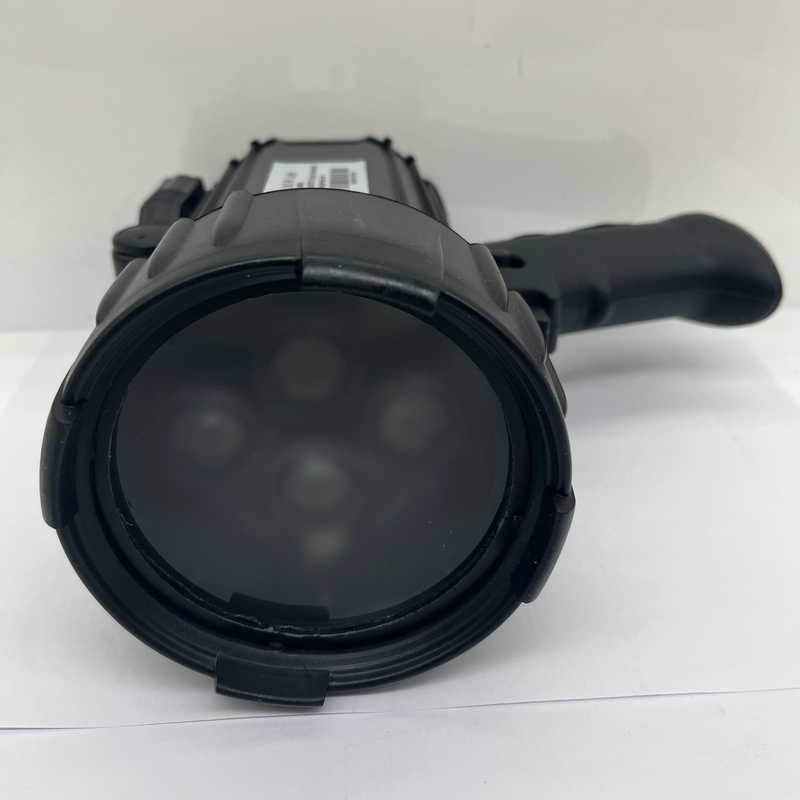

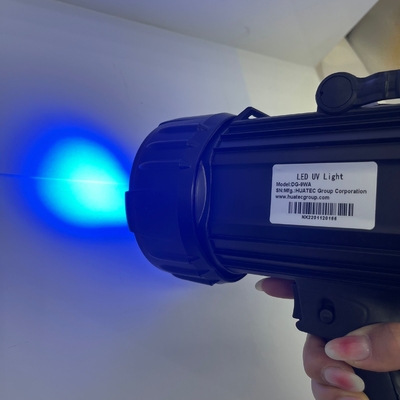

DG-9WA Handheld Charging Style LED-UV Light

DG-9WA Handheld Charging Style LED-UV Light
DG-9WA Handheld Charging Style LED-UV Light DG-9WA Handheld Charging Style LED-UV Light

Large Image :  DG-9WA Handheld Charging Style LED-UV Light

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: DG-9WA
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD350/set - USD396/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

DG-9WA Handheld Charging Style LED-UV Light

Description
Quantity Of Lamp Head: UV Head:3pcs, White Light Head:1pc UV(Light)-FLUX Indoor Temperature 25℃: UV-MAX8000uW/cm2, Light-MAX1500LUX
Grading Feature: Centre Grading Irradiation Area At Depth Of 380mm:（≥1000uw/cm²）: Φ170mm
Wavelength Accuracy: ±3nm Power Supply: AC100-240V 50/60Hz
Wave Length: 365nm±3nm(UVA) (Indoor Temperature 25℃)
Highlight:

DG-9WA LED-UV Light

,

Handheld Charging Style LED-UV Light

DG-9WA Handheld Charging Style LED-UV Light



Characteristic:

Irradiance>8000uw/cm2

Internal batteries

Pre-alert and protection of low power

Light source life 30000H

Parameters

Item parameter
Style handheld
Quantity of lamp head UV head:3pcs, white light head:1pc

UV(Light)-FLUX

Indoor temperature 25℃

 UV-MAX8000uW/cm2, Light-MAX1500LUX
Grading feature Centre grading
Irradiation area at depth of 380mm:(≥1000uw/cm²) Φ170mm
Wavelength accuracy ±3nm
Power supply AC100-240V 50/60Hz
Power UV LED-9VA Light-3VA
Wave length 365nm±3nm(UVA) (Indoor temperature 25℃)
Outline dimension 203mm(W)*110MM(D)*220mm(H)
Weight 1kgs
Battery capacity 5800mA/H 12.6V
Charging time 4-5H
Battery cumulative time UV LED 5-6H or Light 16H



Feature:

9VA power saving of power consumption

30000H life expectancy of light source

High quality light source UVLED

0 UV-B contained

Battery endurance 5-6hrs

Pre-alert and protection of low power

Weight of 1kg only including batteries

Build in battery, no wiring outside

Three minute delay(power saving)//constand lighting,mode can be switched

Quartz and optical glass module, not PMMA material, excellent weather resistance

Continuous operation and external surface temperature rises less than 5 Celsius

No need to preheat, instant to reach 100% power

With UV and white light dual function, one hand switch.

DG-9WA Handheld Charging Style LED-UV Light 0DG-9WA Handheld Charging Style LED-UV Light 1DG-9WA Handheld Charging Style LED-UV Light 2
