Through Coating Mode 2.5-18.0 mm (Probe PT-08 and PT-12 Ultrasonic Thickness Gauge Echo-Echo TG-4100

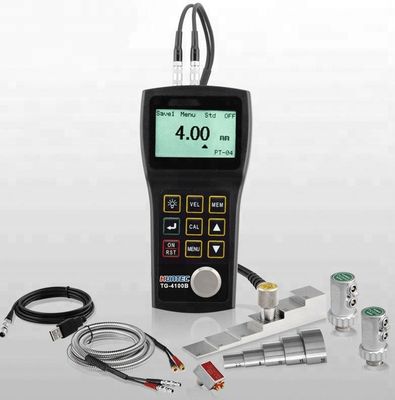

Large Image : Through Coating Mode 2.5-18.0 mm (Probe PT-08 and PT-12 Ultrasonic Thickness Gauge Echo-Echo TG-4100

Product Details:

Place of Origin:	China
Brand Name:	Huatec
Certification:	ISO CE GOST
Model Number:	TG-4100

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packed in high quality cartons
Delivery Time:	3~7 working days
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	500 sets one month

Contact Now

Through Coating Mode 2.5-18.0 mm (Probe PT-08 and PT-12 Ultrasonic Thickness Gauge Echo-Echo TG-4100

Description

Product Name:	Ultrasonic Thickness Gauge	Model:	TG-4100
THROUGH COATING:	2.5 Mm – 18 Mm ( DEPNDING OF THE PROBES )	Display:	128X64 Pixel LCD With Backlight
Tolerance:	+/-0.05 Mm In Steel	Power:	2 Pcs 1.2 V AAA Batteries
Highlight:	Echo-Echo Ultrasonic Thickness Gauge , Probe PT-12 Ultrasonic Thickness Gauge , 2.5-18.0 mm Ultrasonic Thickness Gauge

Through Coating Mode 2.5-18.0 mm (Probe PT-08 and PT-12 Ultrasonic Thickness Gauge Echo-Echo TG-4100

TECHNICAL DATA

DISPLAY	128X64 PIXEL LCD WITH BACK LIGHT
MEASURMENT RANGE
STANDARD	0.8 mm TO 300 mm IN STEEL DEPENDING OF THE PROBE SPECIAL REQUEST CAN REACH MEASURING RANGE UP TO 500mm
THROUGH COATING	2.5 mm – 18 mm ( DEPNDING OF THE PROBES )
TOLERANCE	+/-0.05 mm IN STEEL
DISPLAY RESOLUTION	0.01 mm ( Less than 100.0 mm ) 0.1 mm ( over 100 mm )
BULIT-IN STANDARD BLOCK	4.00 mm
VELOCITY RANGE	1000-9999 m/s
POWER	2 EA. 1.5 V AAA BATTERY
OUTSIDE DIMENSION	149X73X32 mm
WEIGHT	160g

FEATURES:

- AUTOMATIC SELF CALIBRATION

- COUPLANT INDICATOR

- AUTOMATIC POWER OFF DEVICE IN 5 MINUTES AND MANUAL POWER OFF FUNCTION

- HIGH-LOW LIMIT ALARM

- LCD BRIGHTNESS ADJUST

- THROUGH COATING CAPABILTY

- LOW BATTERY INDICTOR

STANDARD PACKAGE:

TG4100 MAIN UNIT WITH THOUGH COATING MODE
HARD CARRING CASE
COUPLANT BOTTLE
STANDARD 8 mm, 5 MHz PROBE WITH CABLE ( THROUGH COATING DEVICE)
Operation manual
Calibration report
Packing list

OPTIONAL ACCESSORIES:

4 STEP STEEL TEST BLOCK
7 STEP METRICS STEEL TEST BLOCK
5 MHz, 4 mm CONTACT PROBE
10 MHz, 4 mm, CONTACT PROBE
5 MHz HIGH TEMPERATURE PROBE
PROBE CABLES

Through Coating Mode 2.5-18.0 mm (Probe PT-08 and PT-12 Ultrasonic Thickness Gauge Echo-Echo TG-4100 0
