HG6378-3 3-Channel 3D XYZ Piezoelectric Accelerometer Wide Frequency Range Vibration Tester

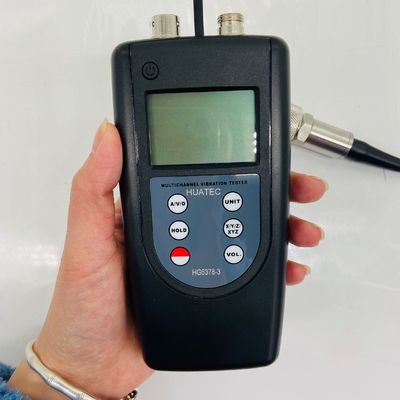

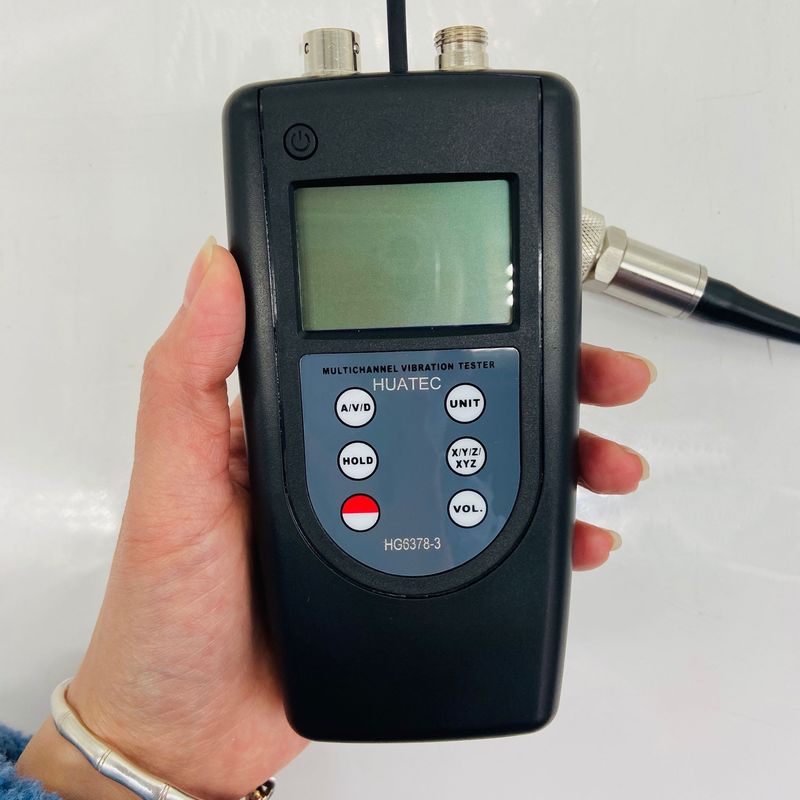

Large Image : HG6378-3 3-Channel 3D XYZ Piezoelectric Accelerometer Wide Frequency Range Vibration Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HG6378-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD667/set - USD754/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HG6378-3 3-Channel 3D XYZ Piezoelectric Accelerometer Wide Frequency Range Vibration Tester

Description

Highlight:

3D XYZ Piezoelectric Accelerometer

Wide Frequency Range Piezoelectric Accelerometer

3-Channel Piezoelectric Accelerometer

HG6378-3 3-Channel 3D XYZ Piezoelectric Accelerometer Wide Frequency Range Vibration Tester

Application

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

Features

* 3 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Blue tooth data output choice.

Vibration Standard

ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank	Rev(rpm)	H:high of shaft(mm) Maximum vibration velocity rms(mm/s)
Quality Rank	Rev(rpm)	80<H<132	132<H<225	225<H<400
Normal	600~3600	1.8	2.8	4.5
Good(R)	600~1800	0.71	1.12	1.8
Good(R)	1800~3600	1.12	1.8	2.8
Excellent(S)	600~1800	0.45	0.71	1.12
Excellent(S)	1800~3600	0.71	1.12	1.8

Specification

Sensor	Piezoelectric Transducer
Measuring Range	Acceleration	0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak
	Velocity	0.01~400mm/s 0.004~16.0inch/sTrue RMS
	Displacement	0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range	Acceleration	10Hz~10kHz
	Velocity	10Hz~1kHz
	Displacement	10Hz~1kHz
Accuracy	5% of Reading+2 digits
Operating Conditions	Temperature	0~50ºC
	Humidity	<90%RH
Power Supply	2x1.5V AA(UM-3)Battery
Dimensions	137x76x32mm
Weight	425g(Not Including Batteries)

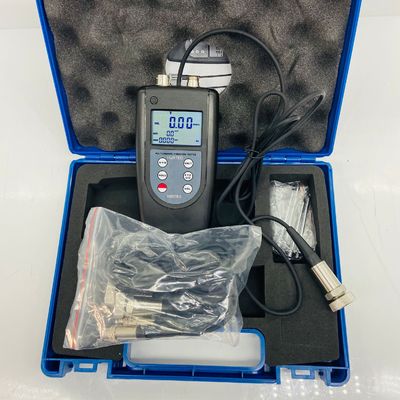

Standard Accessories	Main Unit
	Piezoelectric Transducer
	Powerful Rare Earth Magnet
	Probe(Cone)&Probe(Spherical)
	Carrying Case(B04)
	Manual Book
Optional Accessories	Headset
	RS-232C Data Cable with Software
	Bluetooth Data Adapter with Software
