AC 110-220V Power Supply Porosity Holiday Detectors

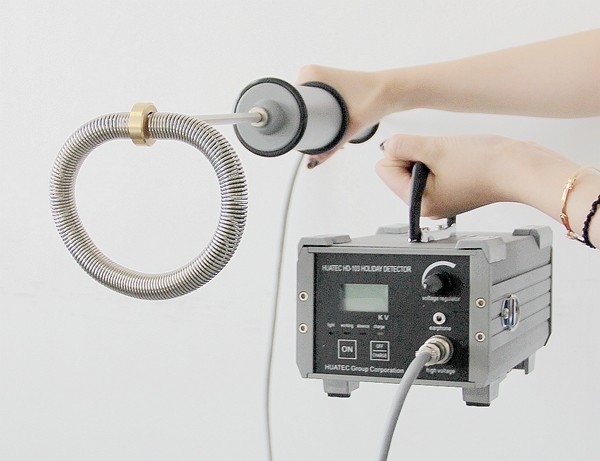

Large Image : AC 110-220V Power Supply Porosity Holiday Detectors

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	HD-103

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	in High quality wooden case
Delivery Time:	3~7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Contact Now

AC 110-220V Power Supply Porosity Holiday Detectors

Description

Product Name:

Holiday Detector

Model:

HD-103

Detector Range:

0.05-10mm

AC Power Supply:

110-230V

Highlight:

AC Porosity Holiday Detectors

220V Porosity Holiday Detectors

AC 110V Porosity Holiday Detectors

AC 110-220V Power Supply Porosity Holiday Detectors

Features

AC 110-220V power supply, safe and reliable (for 24 hours of continuous work without stop)

Low power consumption, small size, light weight with high sensitivity

Easy to operation, intuitive and convenient

It is much safer for the user for it overcome domestic spark tester machine with high-voltage electrostatic phenomenon

Technical specifications

Detector range: 0.05-10mm

Output voltage: 0.8-35KV

AC power supply: 110-230V

Battery: 12V/2800mA

Dimensions: 220×130×88mm

Weight: 2.2Kg

Technical parameters

ParametersModel	HD-101	HD-102	HD-103	HD-101M
Detector range	0.05～10mm	30 um～1.5mm	0.05～10mm	0.05～10mm
Output voltage	0.6kv～30kv	600v～8000v	0.8kv～35kv	0.6kv～30kv
Leak source memory	No	No	No	Yes,99 data
Rechargeable Battery	12V/2800mA
AC power supply	110-230V
Consumed power	About 3W	≤5W	About 6W	About 6W
Main unit size	220 × 130 × 88 mm
Backlight	Yes
Display	3 digits LCD
Alarm	Earphone, buzzer alarm, light alarm

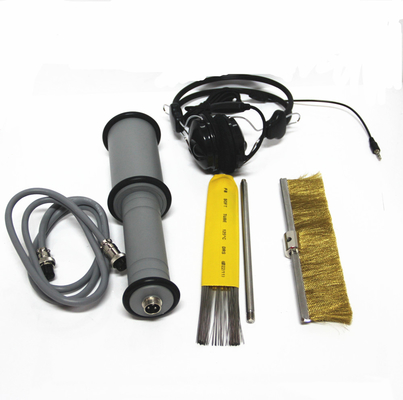

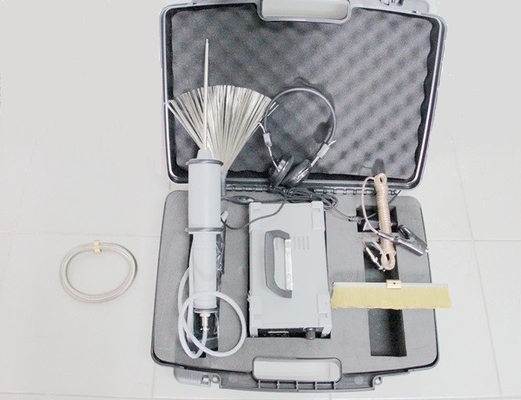

Standard delivery

Host 1pc

High voltage hand handle 1pc

Ground Wire 1pc

Fuse 2pc

Aluminum Box 1pc

Manual 1pc

Certificate 1pc

Fan brush 1pc

Flat brush 1pc
