Product Details:
|
| Network Format: | 4G Full Netcom | Storage Capacity: | IOG |
|---|---|---|---|
| Frequency Band: | 50Hz-32KHz | Camera: | Camer |
| Highlight: | Automatic acoustic imager,Intelligent acoustic imager,acoustic imager Detection Equipment |
||

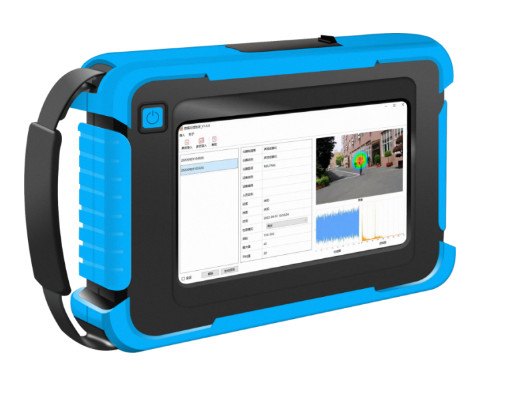

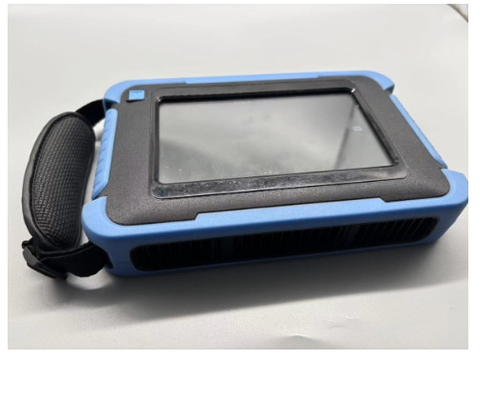

Acoustic imager HAI-100
Acoustic imager is a new type of automatic intelligent detection equipment with centralized release location, sound source identification and gas leak location functions.
It uses 124 high-sensitivity digital microphone array and adopts beamforming and digital filtering technology to visually present the sound field distribution of the collected sound in the form of color contour map.
| Network format: | 4G full Netcom | Storage capacity: | lOG |
| Microphone array: | 124 MEMS digital McPhoenix arrays | Data content: | Time, position, picture, time domain diagram, frequency domain diagram, etc |
| Frequency band: | 50Hz-32KHz | Data export: | Usb drive export |
| Camera focus: | Prime lens | Data upload: | Supports one-click upload |
| Camera: | 5 million pixels | Data viewing: | Local call/APP view |
| Screen size: | 7.0 Inch | Report generation: | Supports one-click report generation |
| Display resolution: | 1024*600 | Pattern selection: | Local discharge, gas, ordinary |
| Touch screen: | capacitive | Frequency screening: | Supports arbitrary interval filtering within the corresponding frequency |
| Positioning mode: | GPS/Beidou | System upgrade: | Usb flash drive upgrade/online upgrade |
| Local storage: | Local storage | Check time: | Manual time matching ,network time matching |
And with the visible video image perfect superposition, intuitive and accurate display of sound source location and equipment defect location. The equipment is suitable for live inspection and location of high voltage overhead lines in power system, corona discharge, suspended discharge, surface discharge of various exposed high voltage equipment in substations, and the detection and location of discharge types inside and outside porcelain sleeve, as well as various gas pipeline leakage detection and location, equipment abnormal vibration location, etc.
