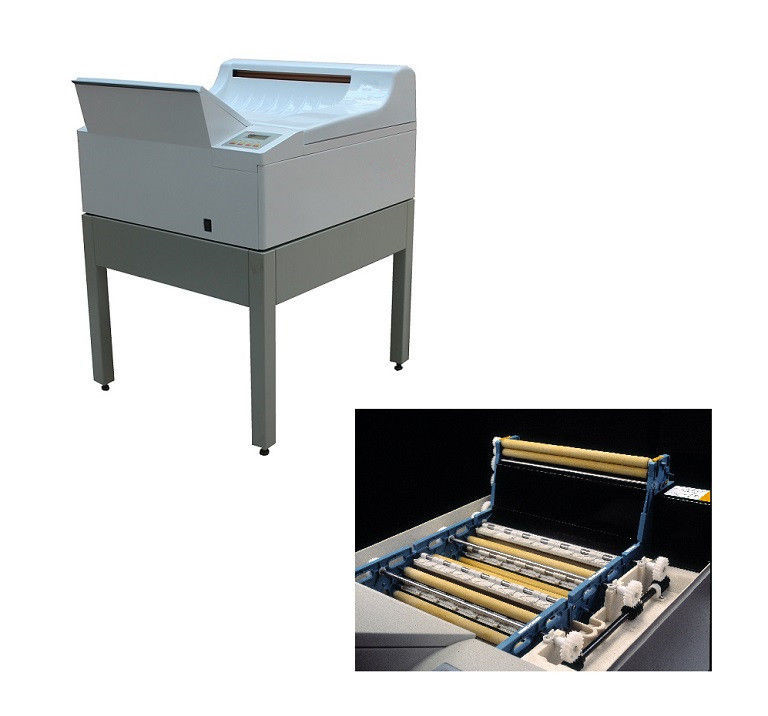

HUATEC NDT Film Developer Processor With Digital Display HDL-P14A

HDL-P14A NDT is the two high market, economical and practical industrial flushing machine. It washes the width and speed of high quality, good reliability and various specifications. It is widely used in the construction of boiler, shipbuilding, pressure vessel, petroleum and natural gas pipeline, and the quality inspection of various kinds of dynamic and pressure equipment. Praised by the clients of the testing industry.

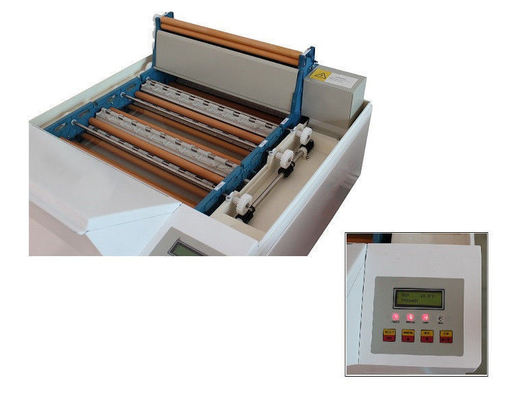

• digital display: all set parameters can be read from the operation panel, easy to operate, include wide security; operation panel, can be personalized: running time, flushing temperature and replenishment.
• The shaft rack system of L precision roller can protect film transmission and facilitate daily cleaning and maintenance.
• drying system adopts special roller combination and electronic control to ensure hot air drying film.
• anti crystallization and anti-oxidation program design, continuous circulation of liquid, prevent the aging of liquid, prolong the use time, and get high-quality image.

1. development synchronous heating system
2. development of independent circulation system
3. development synchronous supplementary system
4. water controlled water saving system of solenoid valve
5. professional conical air duct drying system
6. mechanical sensing feeding system
7. DKM electronic speed control energy saving system

• The size of u film is minimum 60 * 100mm, the widest 350mm width and the longest film is 15 meters.
• film type film & sheet film
• The running time of u is 4.5 to 14 minutes
• chip speed 100~33 mm / min
• development time is 60-180 seconds (recommended for 90 seconds)
• washing volume 350*430mm 20 sheets / hour; 80*300mm 80 sheets / hour.
• volume development, fixing and washing 5.2 litres.
• supplementary volume automatic test supplement 50-200 ml / m2
• development temperature can be adjusted from 20-40 degrees
• setting temperature automatically adjusts according to developing temperature
• drying temperature 40-70 degrees
• water temperature 5~30 degree
• water consumption film is less than 2 liters / minutes during operation
• power 220~240V8.8A 50 or 60Hz
• weight 50 kg
• volume (long * width * height) 78 x 59 x 45 cm
