HT-6590-5 Textile Winding Density Weaving Warp Durometer

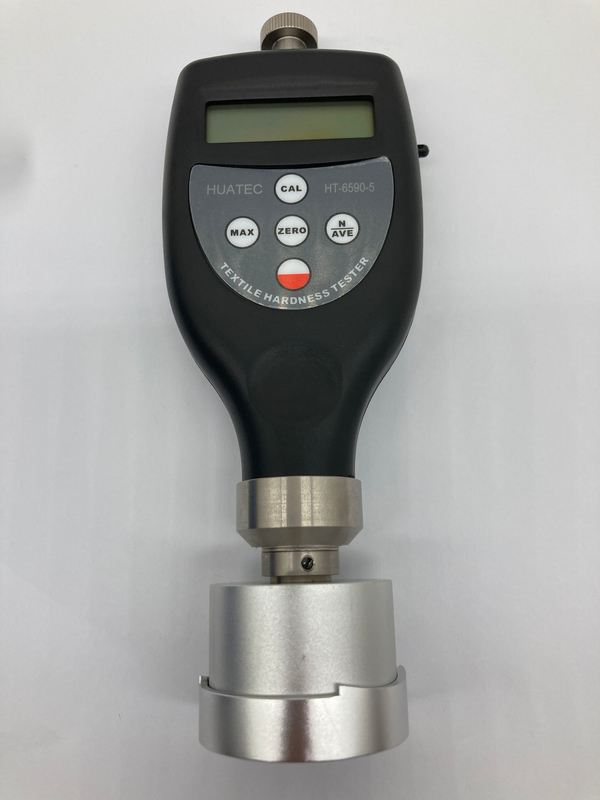

Large Image : HT-6590-5 Textile Winding Density Weaving Warp Durometer

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HT-6590-5

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD275/set - USD310/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HT-6590-5 Textile Winding Density Weaving Warp Durometer

Description

Indenter:	Ball Φ5mm	Display Range:	0-100H (hardness Graduation Marks)
Testing Range:	10-90H (hardness Graduation Marks)	Resolution:	0.1H
Accuracy:	≤±1H	Test Pressure:	Approx. 12.5N
Measuring Spring Force:	0.55-8.065N	Scale Diameter:	51mm
Operating:	Temperature:0~40ºC Humidity:<80%RH
Highlight:	Winding Density Durometer , Warp Winding Density Durometer , Textile Winding Density Durometer

HT-6590-5 Textile Winding Density Weaving Warp Durometer

Features

* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.

* With average calculate, peak value deposit function.

* Apply USB data output to connect with PC.

* Blue tooth data output option.

Model	HT-6590-5
Parameters	Tested value/Mean value/Max.value
Indenter	Ball Φ5mm
Convertible Probe	The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm
Area Of Application	For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads
Display Range	0-100H (hardness graduation marks)
Testing Range	10-90H (hardness graduation marks)
Resolution	0.1H
Accuracy	≤±1H
Battery Indicator	Low Battery Indicator
Auto Switch Off	√
Depth Of Indentation	0-2.5mm
Test Pressure	Approx. 12.5N
Measuring Spring Force	0.55-8.065N
Scale Diameter	51mm
Working Face Radius	55mm (when using the curved end of the probe)
Working Face Flat	45mmΦ (when using the plane end of the probe)
Operating	Temperature:0~40ºC Humidity:<80%RH
Power Supply	2x1.5V AAA(UM-4)Battery
Dimensions	177x65x45mm
Weight	Approx. 285g (Not including batteries)

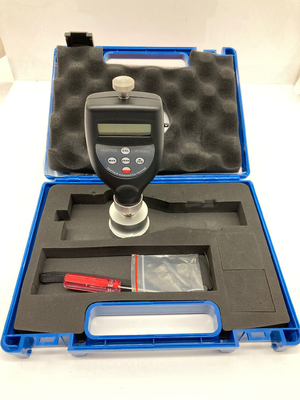

Standard Accessories	Main Unit
	Carrying Case
	Operation Manual, calibration certificate
Optional Accessories	USB Data Cable with Software
	Blue tooth Data Adapter with Software

Principle

The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as the Shore A hardness testing.

Application

To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.

Indenter ball 5mm is for loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads

HT-6590-5 Textile Winding Density Weaving Warp Durometer 0
