TG-140S Pen type A scan EMAT Electromagnetic Ultrasonic Thickness Gauge

Large Image : TG-140S Pen type A scan EMAT Electromagnetic Ultrasonic Thickness Gauge

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG-140S

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD2865/set - US3237/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

TG-140S Pen type A scan EMAT Electromagnetic Ultrasonic Thickness Gauge

Description

Sampling Rate:	80MSPS	Bandwidth:	2.5MHz～6MHz
Launch:	±600V_400Hz_125ns	Gain:	Automatic 0～96dB，pace 1dB
Measurement Accuracy:	±0.01mm	Sound Velocity Range:	400～9999 M/s
Effective Range:	1.0～640 Mm	Lifting Distance:	5mm(Aluminum), 4mm(Carbon Steel), 3mm(Stainless Steel)
Highlight:	Pen type A scan EMAT , Electromagnetic Ultrasonic Thickness Gauge

TG-140S Pen type A scan EMAT Electromagnetic Ultrasonic Thickness Gauge

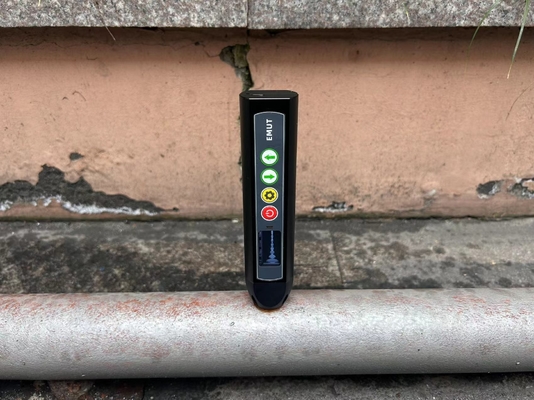

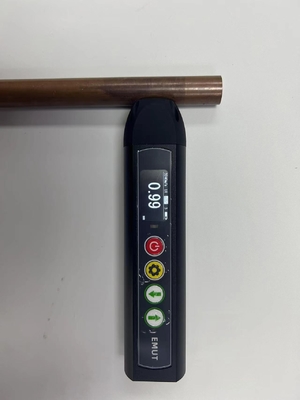

TG-140S A scan electromagnetic ultrasonic thickness gauge is a small pen type, air coupling thickness measurement gauge that does not require acoustic coupling agents. Widely used for thickness measurement of metal or magnetic materials.

Product Features

Small size and easy to carry.
The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement.
It is insensitive to the coating and can realize the thickness measurement of coated workpiece.
No acoustic coupling agent is required, it is suitable for thickness measurement of high-temperature workpiece.

Basic Parameters

Sampling rate	80MSPS
Bandwidth	2.5MHz～6MHz
Launch	±600V_400Hz_125ns
Gain	Automatic 0～96dB,pace 1dB
Measurement accuracy	±0.01mm
Sound velocity range	400～9999 m/s
Effective range	1.0～640 mm
Average level	L,M,H three-level adjustable
Lifting distance	5mm(Aluminum), 4mm(Carbon steel), 3mm(Stainless steel)
Measurement range	Measure carbon steel — 1X:160mm 2X:320mm 3X:640mm
Measurement type	Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials
Measurement channel	Thin parts, common, bars
Measurement mode	Single echo(I-E), Dual echo(E-E)
Search mode	Frontier-Frontier mode, Wave crest-Wave crest mode, Wave crest-Frontier mode
Auxiliary functions	Auto freeze, Auto gain, Auto sleep, A-Scan waveform display
Revised function	Gate height adjustment, delayed fade adjustment, manual gain adjustment, sound velocity calibration, high temperature compensation
Communication Interface	RS-485 or USB2.0
Charger	5V2A, Standard Type-C interface
Display screen	1.47 inch 320× 172 IPS_LCD
Dimension	178.4 mm× 42 mm× 32 mm
Battery life	3.7V 3400mAh Lithium battery, 6 hours of battery life
Bare weight	A Metal shell: 358g B Injection molded shell: 255g C Injection molded + quick release: 289g

Standard Configurations

Serial number	Name	Quantity	Remark
1	Host TG-140S	1
2	Normal temperature probe	1	4MHz,Φ42mm*32mm
3	Charging data cable	1
4	Charging plug	1
5	Manual&calibration certificate	1
6	Iron based test block	1
7	Aluminum based test block	1
8	Packing box	1

Optional Configuration(You can choose to order according to your needs, which is not included in the standard configuration)

Serial number	Name	Quantity	Remark
1	High temperature probe	1	4MHz,Φ33mm*40mm
2	Small diameter normal temperature probe	1	4MHz,Φ13mm*36mm
3	Large diameter normal temperature probe	1	4MHz,Φ40mm*60mm
