TG-15 High Accuracy 0.001mm EMAT Electromagnetic Ultrasonic Thickness Gauge

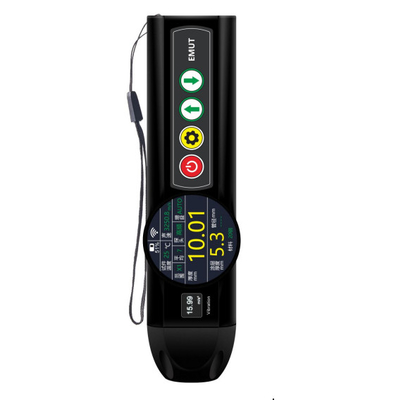

Large Image : TG-15 High Accuracy 0.001mm EMAT Electromagnetic Ultrasonic Thickness Gauge

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD2865/set - USD3237/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal

Contact Now

TG-15 High Accuracy 0.001mm EMAT Electromagnetic Ultrasonic Thickness Gauge

Description

Sound Velocity Range:	400～9999 M/s	Effective Range:	0.25～30 Mm
Measurement Accuracy:	±0.001mm	Lifting Distance:	4mm(Aluminum), 3mm(Carbon Steel), 2mm(Stainless Steel)
Measurement Mode:	Single Echo(I-E), Dual Echo(E-E), Multiple Echo(ME_E)	Revised Function:	Sound Velocity Calibration, Zero Calibration
Highlight:	High Accuracy EMAT Ultrasonic Thickness Gauge , 0.001mm EMAT Ultrasonic Thickness Gauge , EMAT Ultrasonic Thickness Gauge

TG-15 High Accuracy 0.001mm EMAT Electromagnetic Ultrasonic Thickness Gauge

TG-15 Electromagnetic Ultrasonic Thickness Gauge is an ultra small device designed for non-contact copper tube thickness measurements without the need for acoustic coupling agents.

Product Features:

Small size, easy to carry.
Able to penetrate coatings for copper tube thickness measurements.
Low requirements for the surface of the copper tube, no need for polishing treatment on rough surfaces, and non-contact measurement can be achieved.

Basic parameters:

Sampling rate	100MSPS
Bandwidth	2.5MHz～6MHz
Launch	± 600V_400Hz_125ns
Gain	Automatic0～96dB,pace 1dB

Measurement accuracy	±0.001mm
Sound velocity range	400～9999 m/s
Effective range	0.25～30 mm
Average level	L,M,H three-level adjustable
Lifting distance	4mm(Aluminum), 3mm(Carbon steel), 2mm(Stainless steel)
Measurement type	Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials

Measurement range	1X:0.25mm～0.50mm 2X:0.50mm～0.75mm 3X:0.75mm～1.00mm 4X:1.0mm～2.0mm 5X:2.0mm～30mm
Search mode	Frontier-Frontier mode, Wave crest-Wave crest mode, Wave crest-Frontier mode
Measurement mode	Single echo(I-E), Dual echo(E-E), Multiple echo(ME_E)
Auxiliary functions	Auto freeze, Auto gain, Auto sleep, Backlight adjustment
Revised function	Sound velocity calibration, zero calibration

Communication Interface	RS-485 or USB2.0
Charger	5V2A, Standard Type-C interface
Display screen	1.47 inch 320×172 IPS_LCD
Dimension	178.4mm×42mm×32mm
Battery life	3.7V 3400mAh Lithium battery, 6 hours of battery life
Bare weight	A Metal shell: 358g B Injection molded shell: 255g C Injection molded + quick release: 289g

Standard Configurations

Serial number	Name	Quantity	Remark
1	Host TG-15	1
2	Normal temperature probe	1	4MHz,Φ42mm*32mm
3	Charging data cable	1
4	Charging plug	1
5	Manual&calibration certificate	1
6	Iron based test block	1
7	Aluminum based test block	1
8	Packing box	1

Optional Configuration(You can choose to order according to your needs, which is not included in the standard configuration)

Serial number	Name	Quantity	Remark
1	High temperature probe	1	4MHz,Φ33mm*40mm
2	Small diameter normal temperature probe	1	4MHz,Φ13mm*36mm
3	Large diameter normal temperature probe	1	4MHz,Φ40mm*60mm
