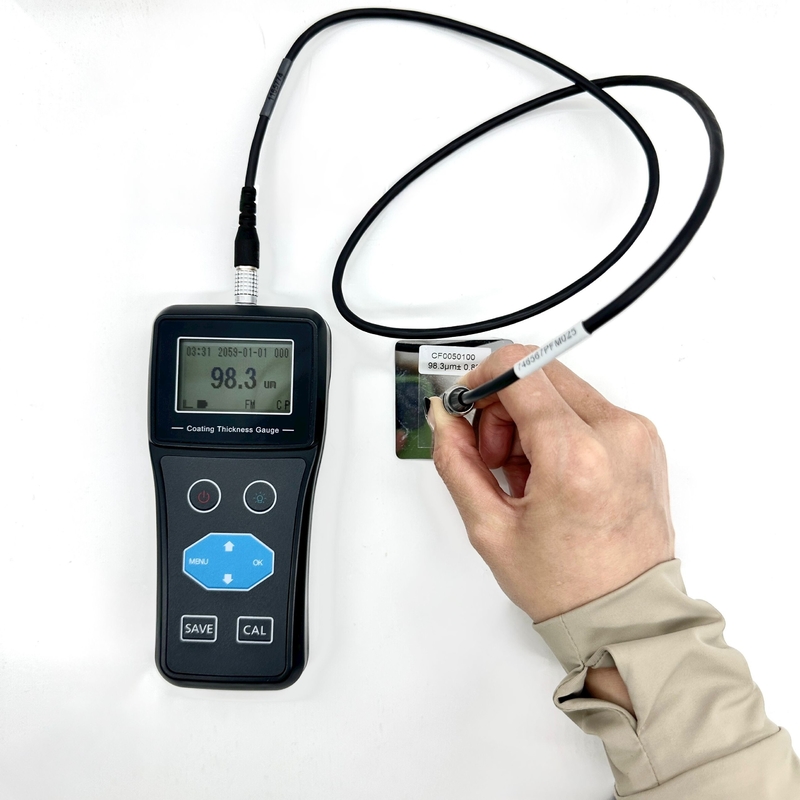

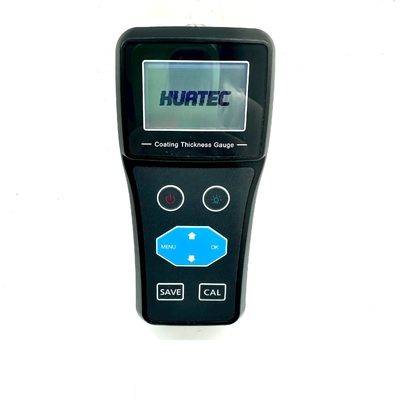

TG-6105 Tin Plating on Copper Galvanized Layer Multifunction Coating Thickness Gauge
TG-6105 is a magnetic and eddy current portable coating thickness gauge, It can quickly, without damage, the precision to measure magnetic metal substrates (such as steel, iron, alloy and hard magnetic steel, etc.) on the magnetic coating thickness (such as zinc, aluminum, chromium, copper, rubber, paint, etc.) and nonmagnetic metal substrates (such as copper, aluminum, zinc, tin, etc.) on the conductive layer thickness (such as rubber, paint, plastic, anodic oxidation film, etc.),
Technical Parameters:
| Display accuracy |
0.1 um(0 ~ 99.9 um),1um(100 ~ 10000 um) |
| Calibration Mode |
Zero, One-Point, Two-Point and Basic Calibration |
| Measuring mode |
Single point, scan mode, weight mode,differential mode, Mean value model,alarm mode |
| Display |
English / Chinese selectable, FSTN LCD Display with backlight |
| Screen display |
Thickness measurement value, unit weight measurement value, density set value, date, time, coupling state, Bluetooth state (optional), power indicator, measurement mode, probe type, real-time temperature compensation state, data storage state, storage file state, etc |
| Data memory |
500 measurements, including time, probe type, etc. |
| Communication |
Bluetooth (optional) & Mini-USB interface, virtual serial port protocol, support online measurement with PC or Smart Phones, host software upgradable |
| Data printing |
Optional portable Bluetooth thermal printers |
| Power supply |
3 * AAA alkaline batteries for 100 hours usage (close backlight) |
| Power off |
Timeout power off, and low battery power off |
| Temperature |
Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C |
| Size and weight |
150mm*70mm*30mm / about 160g(no battery) |
| Material |
ABS and PC alloy(IP67) |
Application:
Can be used in the laboratory, Can also be used in engineering site, is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields, is the material protection professional necessary instrument.
Standard:
l GB/T 4956 -- 2003 Measurement of coating thickness of nonmagnetic coatings on magnetic substrates -- Magnetic method
l GB/T 4957 -- 2003 Measurement of coating thickness of nonconductive coatings on nonmagnetic matrix metals by eddy current method
l JJG 818 -- 2018 Magnetic and eddy current type coating thickness measuring instrument
l JB/T 8393 -- 1996 Magnetic and eddy current type coating thickness measuring instrument
l GB/T 15675-2008 Continuous electrogalvanizing, zinc-nickel alloy coated steel plate and steel strip
l GB/T 2518-2008 Continuous hot dip galvanized steel sheet and steel strip
Features:
l adopts high-precision sampling chip and special calibration model, with advanced real-time temperature compensation technology, can achieve full range of accurate measurement, and can accurately measure the thickness of ultra-thin electroplating and oxide layer below 20um
l can be measured at the same time galvanized layer thickness and unit weight (gram version)
l supports a variety of probe specifications, the probe can be re-matched with the main instrument after wear, effectively prolonging the probe service life
l has high precision single point measurement, scanning measurement, unit weight measurement (gram weight version TG-6105P), difference measurement, average measurement and other measurement modes
l has zero point calibration, one point calibration, two point calibration and basic calibration functions, can automatically correct the system error
l has the function of data storage, and can be grouped to the saved data for statistical analysis
l can set the upper and lower limits of thickness value, beyond the range of automatic buzzing alarm
l with coupling state prompt function, intuitive grasp of the measurement state
l displays rich information, including thickness value, coupling state, electric quantity information, test time, storage state, etc
l Built-in Bluetooth module (optional Bluetooth version) and Mini-USB interface, optional Bluetooth printer, and can communicate with PC or intelligent terminal devices for wired and wireless data transmission
l supports real-time online measurement, instruction control (instruction version), the host software can be upgraded
l can be equipped with RS232, RS485 communication interface, optional for on line model
l can be customized thickness measuring module and thickness measuring sensor
