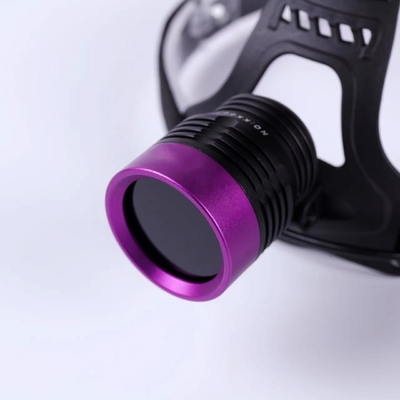

DG-3101S Palm-sized 90 degrees up-and-down Adjustable UV 365nm LED Black Light Headlamp
Main features
A new palm-sized, hands-free light source that can be worn on the head with a UV helmet type
black light that frees the user's hands during inspections.
Helmet-type black lamp is an ideal test tool for fluorescent magnetic particle and penetration
inspection, mine inspection, etc.
The DG-3101S UV headlamp is equipped with the powerful UV-A (365 nm) LED lamp design.
The on/off button of the DG-3101S UV helmet type black light is positioned on the back of the light
to prevent accidental switching; DG-3101S UV helmet type black light specially designed.
Constant current drive line, can keep the UV intensity constant, even when the battery capacity is
insufficient.
UV helmet type black light head can be 90 degrees up-and-down adjustment.
Technical parameter
| Peak wavelength |
365-370nm |
| Ultraviolet intensity |
10000μW/ cm distance is 38cm |
| UV LED quantity |
× 5W 365nm UV LED,LED The average life span is 30,000 hours |
| Power |
2pcs of 18650 Lithium battery,4400mAh,Usage time: 3.5 hours |
| Irradiated area |
50mm at a distance of 38 centimeters |
| Dimension and weight |
40 ×38mm,200g no accessories |
Product application
▪ Refrigerant leak detection
Penetration testing, fluorescence detection
▪ Engine oil leak detection
▪ Forensics fingerprints, blood observations
▪ Fluorescence observation of ore
Biopolymers, fluorescence observation
Standard configuration
Host, a pair of LUV-10 glasses, charger, manual, certificate, warranty card
