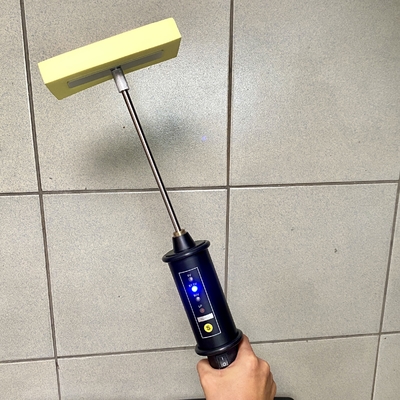

HD-104 Multi-voltage Wet Sponge Pinhole Leak Detector

Large Image : HD-104 Multi-voltage Wet Sponge Pinhole Leak Detector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HD-104

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD575/set - USD650/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HD-104 Multi-voltage Wet Sponge Pinhole Leak Detector

Description

Detector Range:	9V ——300µm;67.5V—500µm;90V——500µm	Sensitivity:	9V——90KΩ+5% ;67.5V—125KΩ+5% ;90V——400KΩ+5%
Accuracy Of Voltage:	+5%	Battery:	Li-pol Rechargeble Battery 11.1V/1100mA
Power:	≤0.5W	Voltage Indication:	LED Indication For Each Voltage
Battery Charging:	12VDC Charger
Highlight:	Multi-voltage Leak Detector , Leak Detector , Pinhole Leak Detector

HD-104 Multi-voltage Wet Sponge Pinhole Leak Detector

Utilises the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector with similar accessories to a high voltage spark tester.

Supplied ready to use
Automatic sensitivity calibration and voltage checks
Low battery indicator
Visual and audible alarms
Integral and separate wand functionality
A wide range of fully interchangeable wand accessories
Easy release snag proof cables
Large standard sponge

Utilises the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector with similar accessories to a high voltage spark tester.

Parameter

Detector range	9V ——300µm 67.5V—500µm 90V——500µm
Sensitivity	9V——90KΩ+5% 67.5V—125KΩ+5% 90V——400KΩ+5%
Accuracy of voltage	+5%
Battery	Li-pol rechargeble battery 11.1V/1100mA
Power	≤0.5W
Weight main unit	500g
Size	290×53×53mm
Voltage indication	LED indication for each voltage
Battery charging	12VDC charger
Sponge size	170×70×30mm
Detecting rod length	195mm
Earth wire length	4m
Battery	12V 4400mA

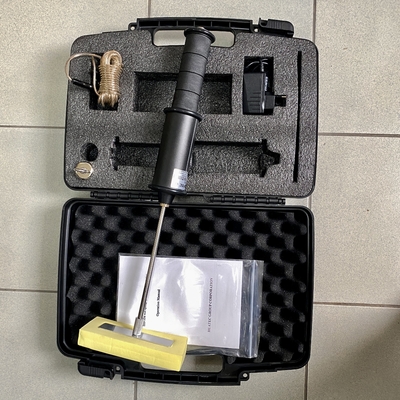

Standard delivery

HD-104 pinhole main unit　　1pc

Standard wand and flat sponge　 1pc

Earth wire 1pc

Charger 1pc

Carrying case 1poc

Manual 1pc

Warranty card　　　　 1pc
