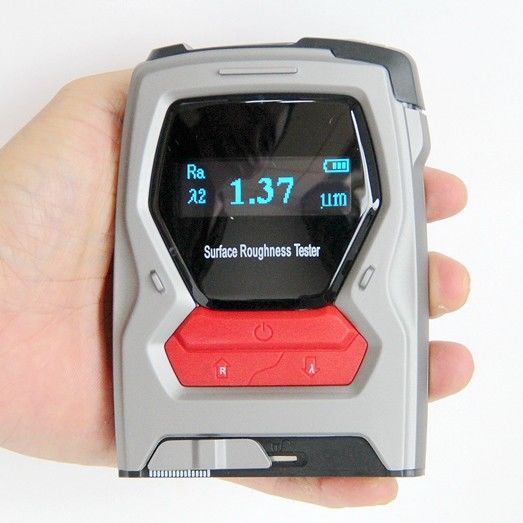

SRT5030 Integral Dual OLED Display Ra Rz Rq Rt Surface Roughness Tester

Large Image : SRT5030 Integral Dual OLED Display Ra Rz Rq Rt Surface Roughness Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	SRT5030

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD460-USD520/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

SRT5030 Integral Dual OLED Display Ra Rz Rq Rt Surface Roughness Tester

Description

Parameters:	Ra, Rz, Rq, Rt	Measuring Range（μm）:	Ra, Rq： 0.05 ~ 10.0; Rz, Rt： 0.1 ~ 50
Display Deviation:	±（7-10）%	Display Accuracy:	0.01μm
Running Length（mm）:	6	Sampling Length（mm）:	0.25/ 0.80/ 2.5
Evaluation Length（mm）:	1.25/ 4.0/ 5.0	Display Repeatability:	＜12%
Stylus Radius:	10 μm±1 μm
Highlight:	Integral Surface Roughness Tester , Dual OLED display Surface Roughness Tester

SRT5030 Integral Dual OLED display Ra, Rz, Rq, Rt Surface Roughness Tester

Features

Dual OLED displays to suit your applications;

2 start keys ( the left key & the right key) to satisfy the different using habits;

Mobile app compatible to get the higher accuracy, convenient to be used in a small space

ARM processor to offer higher speed, low power consumption and fast accurate measurement.

Light weight of 150g, easy & convenient to use.

Main Technical Specifications
Optional Parameter	Ra, Rz, Rq, Rt
Measuring Range(μm)	Ra, Rq: 0.05 ~ 10.0; Rz, Rt: 0.1 ~ 50
Sampling Length(mm)	0.25/ 0.80/ 2.5
Evaluation Length(mm)	1.25/ 4.0/ 5.0
Running Length(mm)	6
Display Accuracy	0.01μm
Display Deviation	±(7-10)%
Display Repeatability	＜12%
Stylus Radius	10 μm±1 μm
Static Contact Force	≤ 0.016N
Force Change Rate	≤ 800N/m
Sensor Lead Pressure	≤ 0.5N
Battery	3.7V Lithium Rechargeable battery
Dimensions in mm	110×81×32
Weight	150g

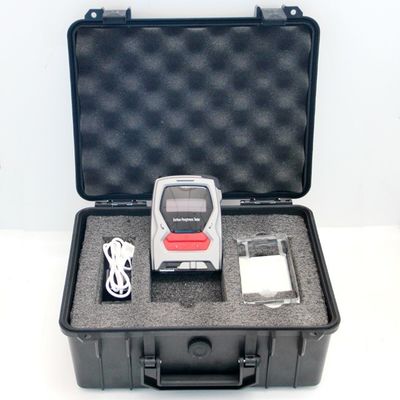

Standard Delivery

Main Unit	1 pc
calibration block	1pc
Power adapter	1pc
USB cable	1 pc
User Manual	1 pc
Calibration certificate	1 pc
