1613HSA-BG Flat Panel Detector Based On Amorphous Silicon Sensors Lightweight High Energy Detection15MV

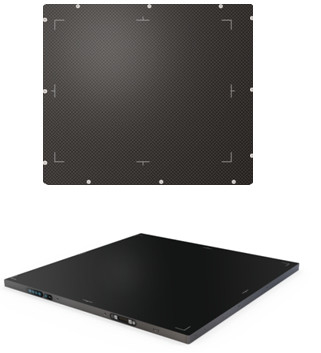

Large Image : 1613HSA-BG Flat Panel Detector Based On Amorphous Silicon Sensors Lightweight High Energy Detection15MV

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Model Number:	1613HSA-BG

Contact Now

1613HSA-BG Flat Panel Detector Based On Amorphous Silicon Sensors Lightweight High Energy Detection15MV

Description

A/D Conversion:

16 Bits

Data Interface:

Gigabit Ethernet

Acquire Time:

Wired: 1s

Exposure Control:

Software/Outer/AED

Highlight:

15MV flat panel detector

1613HSA-BG flat panel detector

amorphous silicon sensors flat panel detector

1613HSA-BGIt is a flat panel detector based on amorphous silicon sensors, lightweight and small, suitable for high energy detection up to 15MV.

Scintillator CsI	TI/GOS
Active Area	128x160 mm
Resolution	1024x1280
Pixel Pitch	125 μm

Sensor
Receptor Type a-Si

Scintillator CsI:TI/GOS

Active Area 128x160 mm

Resolution 1024x1280

Pixel Pitch 125 μm

Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <16 W

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Image Quality
Limiting Resolution 4.0 LP/mm

Energy Range 40-160KV / 40-15MV(OEM)

Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet

Acquire Time wired: 1s

Exposure Control Software/Outer/AED

Mechanical
Dimension 195×166×14.8 mm
Weight 0.75kg

Material Aluminum andmagnesium alloys

Front Panel Carbon fiber

1613HSA-BG Flat Panel Detector Based On Amorphous Silicon Sensors Lightweight High Energy Detection15MV 0
