HCD-110 Handheld Concrete Structure Rebar Corrosion Detector

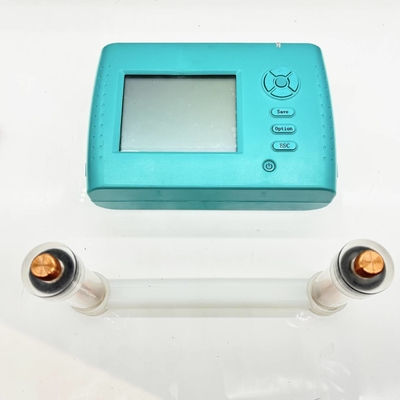

Large Image : HCD-110 Handheld Concrete Structure Rebar Corrosion Detector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HCD-110

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD1095/set - USD1235/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HCD-110 Handheld Concrete Structure Rebar Corrosion Detector

Description

Potential Electrode:	Φ37X127mm	Potential Measurement Range:	±1000mv
Test Accuracy:	1mv	Distance Of Test Point:	0 - 1000mm
Available Capacity:	50000 Test Points,5000test Areas	Work Temperature Range:	-10℃ - 40℃
Highlight:	Concrete Structure Rebar Corrosion Detector , Handheld Concrete Structure Rebar Corrosion Detector

HCD-110 Handheld Concrete Structure Rebar Corrosion Detector

Features:

1.Easy to operate, fast and accurate read. The result is displayed with numbers or graphics.

2.Displays rebar corrosion degree with 9-level grey or colorful graphics

3.Measured data is inputted to PC software from USB interface.

4.Easy to operate, have concise software interface, have powerful analytical processing, can obtain testing report directly.

Brief introduction:

HCD-110 rebar corrosion detector is NDT instrument which tests rebar corrosion in the concrete structure. Using electrochemistry method, do the functions for corrosion detection, data analysis, storage and output etc. It is a detection instrument which is handheld, measurement accurately and easy to use.

Technical Specification:

Items	SPEC
Potential electrode	Φ37X127mm
Electrode weight	200g
Power supply	Alkaline cell X 6
Potential measurement range	±1000mv
Test Accuracy	1mv
Distance of test point	0 - 1000mm
Available capacity	50000 test points,5000test areas
Work temperature range	-10℃ - 40℃
Size	220×145×60mm

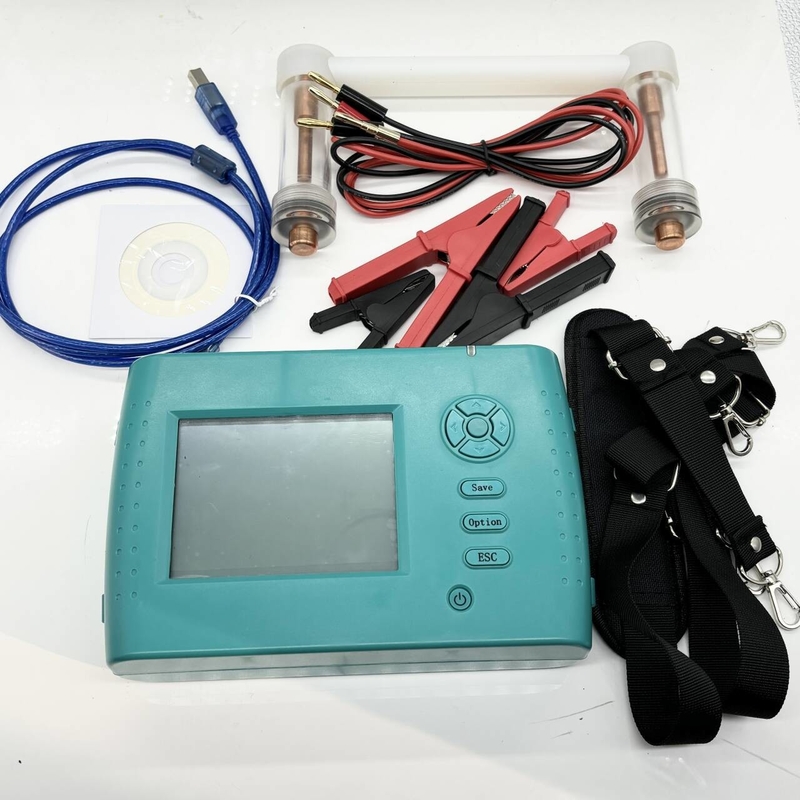

Standard configuration

Main Unit HCD-110 1unit

Signal transmission line 1pc

Lateral device 1pc

USB data line 1pc

Clamp 1pc

Instruction manual 1pc

Calibration certificate 1pc

Warrant card 1pc

HCD-110 Handheld Concrete Structure Rebar Corrosion Detector 0
