HG-908 4 Parameters Metric Version True RMS Measurement Vibration Analyzer

Large Image : HG-908 4 Parameters Metric Version True RMS Measurement Vibration Analyzer

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HG-908

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD609/set - USD689/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HG-908 4 Parameters Metric Version True RMS Measurement Vibration Analyzer

Description

Displacement:	1-1999um Peak-peak (*)	Velocity:	0.1-199.9mm/s True RMS
Acceleration And High Frequency Acceleration:	0.1-199.9 M/s2 Peak (*)	Measurement Accuracy:	± 5% Of Display  2 Digits
Temperature:	0℃ -45℃, Humidity<85%
Highlight:	True RMS Measurement Vibration Analyzer , Metric Version Vibration Analyzer , 4 Parameters Vibration Analyzer

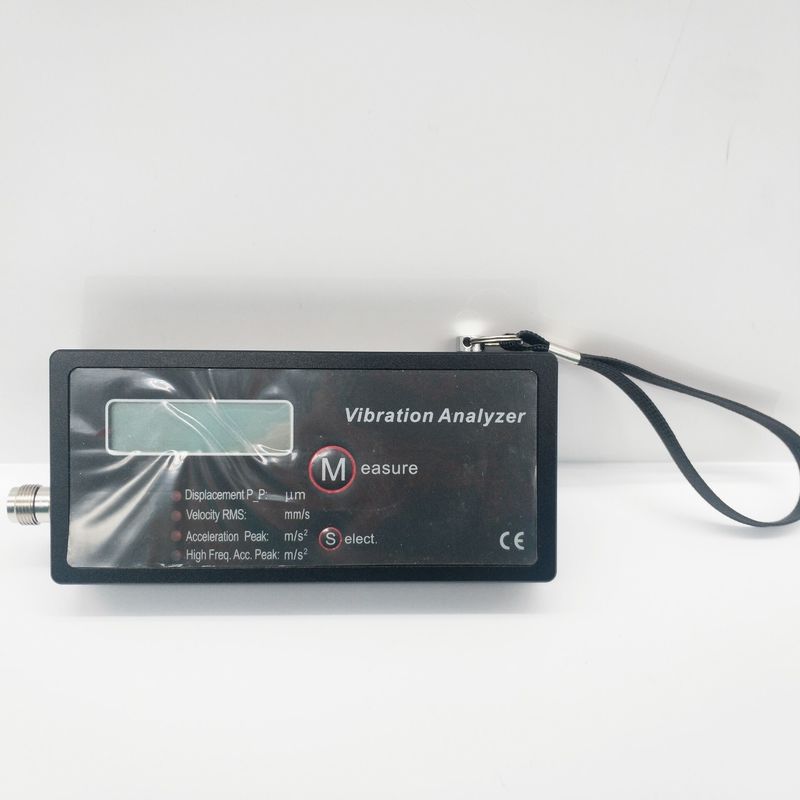

HG-908 4 Parameters Metric Version True RMS Measurement Vibration Analyzer

Features:

Small size, transducer included,
True RMS measurement.

Measuring parameters: vibration velocity, displacement,acceleration and high-frequency acceleration

Battery powered,

Accelerometer may be integrated or external cable connected.

One button control both power and measurement.Very easy to use.

3 1/2 LCD digital display, sampling per second.

Holding function.

Automatic power off.

Suitable for monitoring machinery vibration caused by imbalance,misalignment, gear & bearing faults and etc

Specifications:

Measurement condition	Temperature: 0^oC -45^oC, Humidity<85%, Non-causticity environment, without strong electric-magnetic field & strong impact. It can be used in industry location by controlling the EMC environment throughout installation and/or usage.
Amplitude Ranges	Displacement 1-1999mm peak-peak () Velocity 0.1-199.9mm/s true RMS Acceleration and High Frequency Acceleration: 0.1-199.9 m/s² peak () Note: peak-peak and peak are equivalent value means: peak-peak=2.828RMS while peak=1.414*RMS
Measurement accuracy	± 5% of display ± 2 digits Noise Level (without input): ACC<0.3m/s², VEL<0.5 mm/s, Disp<3mm Frequency response accuracy: ±5%; (±10% for ACC 4.5kHz-10kHz) Non-linearity: ±5%
Sensor type	Shear type Piezoelectric Accelerometer
Frequency response	10-1000Hz (Inside accelerometer) 10-5000Hz (Outside accelerometer, depending on model) High Frequency Acceleration: 1000-5000Hz ±10%
Battery	9V 6F22, 25 hours of continuous operation

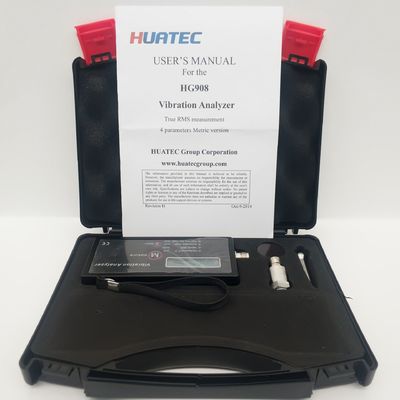

Configuration	Standard: Outside accelerometer with magnetic mount and probe Optional: Inside accelerometer with 2 handheld probes
Dimensions	13´6´2.3 cm; Weight: 250 g.

HG-908 4 Parameters Metric Version True RMS Measurement Vibration Analyzer 0
