HG908B Explosion proof Hand-Held High-frequency Acceleration Vibration Velocity Displacement Vibrometer

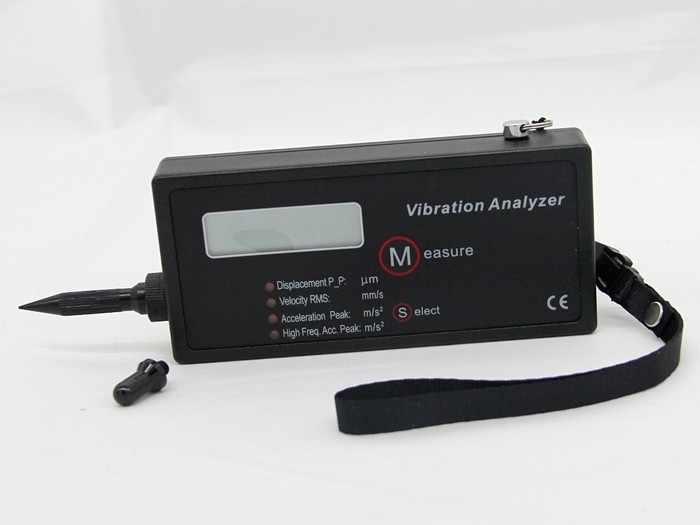

Large Image : HG908B Explosion proof Hand-Held High-frequency Acceleration Vibration Velocity Displacement Vibrometer

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HG-908B

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD865/set - USD977/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HG908B Explosion proof Hand-Held High-frequency Acceleration Vibration Velocity Displacement Vibrometer

Description

Displacement:	1—1999 M M (or 200 Mil) Eq. Peak-peak	Velocity:	0.1—199.9 Mm/s (or 20 In/s) True RMS
Acceleration:	0.1—199.9 M/s2 (or 20 G) Eq. Peak	High Frequency Acceleration:	0.1—199.9 M/s2 (or 20 G) Eq. Peak
Overall Accuracy:	±5%	Temperature Range:	0 - 50C
Battery:	9V 6F22/Rechargeable, 25/10 Hours Of Continuous Operation
Highlight:	Explosion proof Vibrometer , Hand-Held Vibrometer , High-frequency Vibrometer

HG908B Explosion proof Hand-Held High-frequency Acceleration Vibration Velocity Displacement Vibrometer

Features:

• Measuring vibration velocity, displacement, acceleration and high-frequency acceleration

• Small size, transducer included,battery powered, Accelerometer may be integrated or external cable connected.

• One button control both power andmeasurement. Very easy to use.

• 3 1/2 LCD digital display, sampling per second.

• Holding function.

• Automatic power off.

• True RMS measurement.

• Suitable for monitoring machinery vibration caused by imbalance, misalignment, gear & bearing faults and etc.

Specifications:

Amplitude Ranges	Displacement 1—1999 m m (or 200 mil) Eq. peak-peak Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS Acceleration 0.1—199.9 m/s2 (or 20 g) Eq. Peak High Frequency Acceleration: 0.1—199.9 m/s2 (or 20 g) Eq. Peak
Overall accuracy	± 5%
Temperature range	0 - 50°C
Frequency response	Displacement 10-1000Hz Velocity 10-1000Hz Acceleration 10-1000Hz (908B) 105000Hz (908) High Frequency Acceleration: 1000-5000Hz 10%
Battery	9V 6F22/Rechargeable, 25/10 hours of continuous operation
Configuration	Integrated accelerometer with handheld probe Pickup: Accelerometer with handheld probe and/or magnetic mount
Dimensions	13´6´2.3 cm; Weight: 200 g.

HG908B Explosion proof Hand-Held High-frequency Acceleration Vibration Velocity Displacement Vibrometer 0
