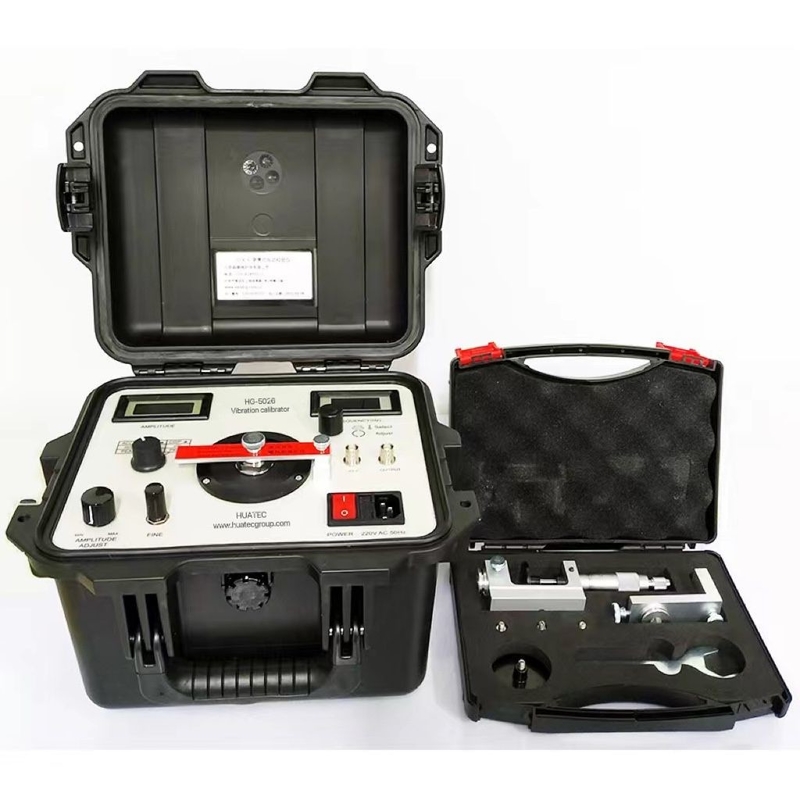

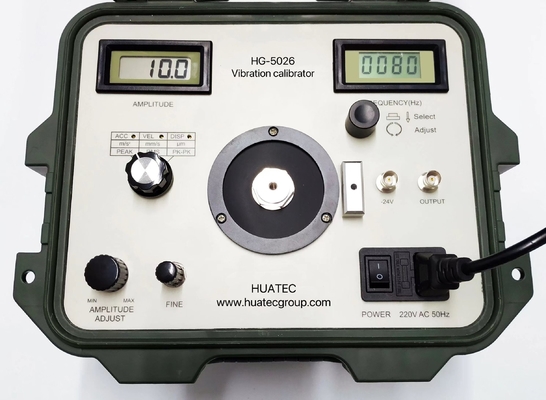

HG-5026 Vibration Accelerometer Velocity and proximity transducer Shaker Calibrator

Large Image : HG-5026 Vibration Accelerometer Velocity and proximity transducer Shaker Calibrator

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HG-5026

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD4485/set - USD5070/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HG-5026 Vibration Accelerometer Velocity and proximity transducer Shaker Calibrator

Description

Display:	3 1/2 Digit Display For Acceleration, Velocity Or Displacement	Acceleration(@30m/s2 Pk):	40Hz To 320Hz + 0.3dB + 1digit ;20Hz To 1280Hz + 0.5dB +1digit
Velocity ( @25mm/sec Pk):	40Hz To 320Hz +0.5dB +1digit	Displacement(@50μm Pk-pk):	40Hz To 320Hz + 0.5dB + 1digit
Temperature: Operation:	0oC To 50 OC	Storage:	-20 OC To 70 OC
Power:	220Vac (optional 110Vac)
Highlight:	Proximity Transducer Vibration Accelerometer , Velocity Vibration Accelerometer , Shaker Calibrator Vibration Accelerometer

HG-5026 Vibration Accelerometer Velocity and proximity transducer Shaker Calibrator

Can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instruments. Standard sine signals at frequency 10, 20, 40, 80, 160, 320, 640 and 1280 Hz can be generated from the calibrator. It also has a socket for input from an external signal generator for any vibration frequency and even sweep signal. The amplitude of the, acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated.

HG-5020i combines sine signal generator, power amplifier, standard transducer and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.

Maximum vibration amplitude and maximum load

Wt Freq	<100g			<250g			<650g
Wt Freq	a(m/S²)	v(mm/S)	d(μm)	a(m/S²)	v(mm/S)	d(μm)	a(m/S²)	v(mm/S)	d(μm)
10Hz	2.5	28	1300	3.5	40	1800	4	45	2000
20Hz	15	85	1900	10	60	1300	5	28	640
40Hz	60	170	2000	35	100	1100	12	35	380
80Hz	100	141	800	40	60	320	14	20	110
160Hz	75	53	150	35	25	70	12	8.5	24
320Hz	50	18	25	30	10	15	10	3.5	5
640Hz	30	5	3	20	3.5	2	6	1	*
1280Hz	23	2	*	10	0.9	*	5	0.4	*

Specifications

Frequency: from 1 to 1280 Hz

Amplitude accuracy:

Acceleration(@10m/s² pk) 40Hz to 320Hz + 0.3dB + 1digit

20Hz to 1280Hz + 0.5dB +1digit

Velocity ( @20mm/sec pk) 40Hz to 320Hz +0.5dB +1digit

Displacement(@50μm pk-pk) 40Hz to 320Hz + 0.5dB + 1digit

Proximity probe linearity linearity calibration kits

Prode: 5mm and 8mm probes Range: 0~2.0mm

Display: 3 ¹/₂ digit display for velocity and frequency

Size: 300 x 250 x 210(mm) Net Weight: 6 kg

Temperature: Operation: 0^oC to 50^oC Storage: -20^oC to 70^oC

Power: 220Vac (optional 110Vac)
