HG-6430 LCD Digital Display Acceleration Velocity Displacement Vibration Pen

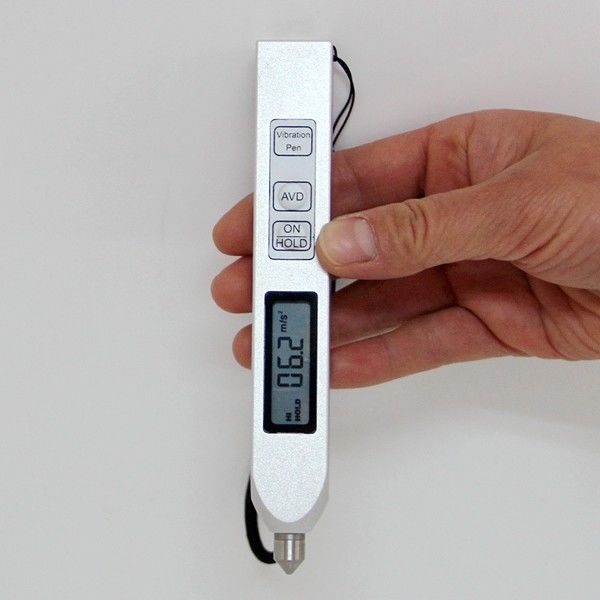

Large Image : HG-6430 LCD Digital Display Acceleration Velocity Displacement Vibration Pen

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HG-6430

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD380/set - USD429/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HG-6430 LCD Digital Display Acceleration Velocity Displacement Vibration Pen

Description

Parameter:	Acceleration, Velocity, Displacement	Accuracy:	±5% ± 2digits
Display:	3 1/2 Digits LCD	Power Supply:	Two Button Batteries(LR44 Or SR44)
Battery Capacity:	Approx. 5 Hours Working Continuously	Humidity:	<85%
Highlight:	Acceleration Velocity Vibration Pen , Displacement Vibration Pen , LCD Digital Display Vibration Pen

HG-6430 LCD Digital Display Acceleration Velocity Displacement Vibration Pen

Features:
·Used for fast failure detecting of motor, electric fan, pump, air compressor, machine
tools and so on.
·Compact size, small weight, easy handling
·Prompt testing of vibration on the workshop machines
·For quick checking of unbalance misalignment, bearings and gears
·Guard against mechanical malfunction
·Holding tested value for 40 seconds
·Automatic switch off after 40 seconds
·HG6430 is used for acceleration, velocity and displacement testing

Technical Specifications:

Parameter	Acceleration, Velocity, Displacement
Testing range	Acceleration:0.1m/s²-199.9m/s²(peak) Velocity: 0.1mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak)
Frequency range	Acceleration: 10Hz ~ 1kHz(LO) 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz
Accuracy	±5% ± 2digits
Display	3 1/2 digits LCD
Power supply	two button batteries(LR44 or SR44)
Battery capacity	Approx. 5 hours working continuously
Operating temperature	0℃ ~ 40℃
Humidity	<85%
Dimension	152mm×22mm×16mm

Configuration

	NO.	Item	Quantity
Standard Configuration	1	Main unit	1
	2	Screwdriver	1
	3	Batteries SR44LR44 1.5V	2
	4	Box	1
	5	Document	1(set)

HG-6430 LCD Digital Display Acceleration Velocity Displacement Vibration Pen 0
