MT Magnetic Calibration Weight Lift Test Bar

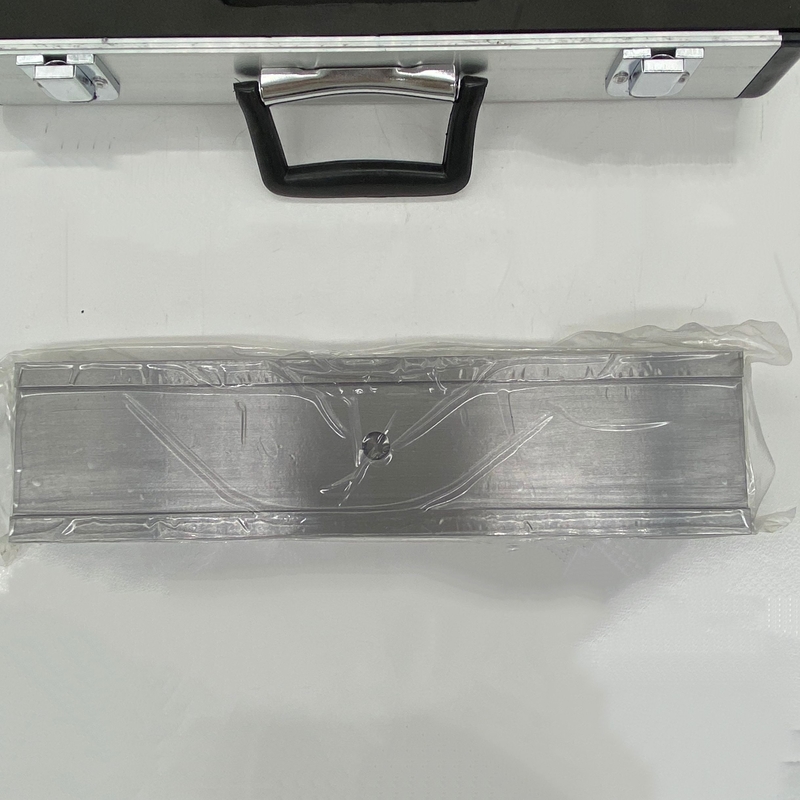

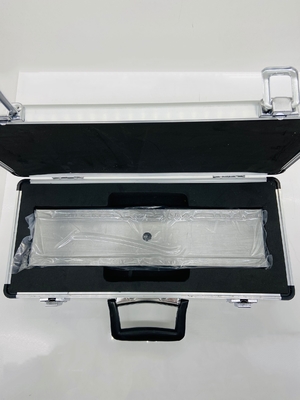

Large Image : MT Magnetic Calibration Weight Lift Test Bar

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	4.5kg

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD135-USD150/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	3-5 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

MT Magnetic Calibration Weight Lift Test Bar

Description

Standard:

ISO 3452-3:1998(E),JB/T6066,NB/T47013-2015,ASME,GB/T26951-2011

Highlight:

Magnetic Calibration Weight Lift Test Bar

MT Calibration Weight Lift Test Bar

MT Magnetic calibration 4.5kg Weight Lift Test Bar

Weight Lift Test Bar designed for the calibration and certification of Magnetic Particle Inspection Yokes.

Test standard:ISO 3452-3:1998(E),JB/T6066,NB/T47013-2015,ASME,GB/T26951-2011

SPECIFICATION:	All linear dimensions and heat treatment to the requirements of BS EN 27963:1992/ISO 7963:1985.where the tolerances are ﹢0.00 and -0.03mm
MATERIAL:	Carbon steel 1018
	CAST No: C-0805251
	HEAT No: R-0805251
	Treated to 920 degrees C for 30 minutes, water quenched,re-heating 650 degrees C for 2 hours, air cooled.
TRACEABILITY:	Calibration standards used are traceable to international standards

NOTES: The lifting force of the magnetic powder test block is used to verify the size of portable magnetic particle detector lifting force

MT Magnetic Calibration Weight Lift Test Bar 0

MT Magnetic Calibration Weight Lift Test Bar 1
