HRT-DS Digital Ropes and Steel Wire Ropes Tension Tester

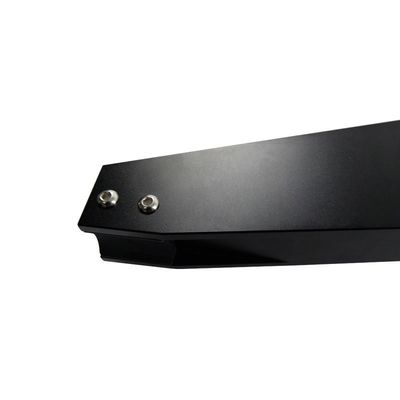

Large Image : HRT-DS Digital Ropes and Steel Wire Ropes Tension Tester

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HRT-DS

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD3495-USD3950/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	3-5 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

HRT-DS Digital Ropes and Steel Wire Ropes Tension Tester

Description

Rope Diameter:

¢6～¢40mm.

Accuracy Grade:

3～6% Of Maximum Function (depending On The Rope Form And Features).

Measurement Accuracy:

3% Error Or Less

Highlight:

Ropes Tension Tester

Digital Ropes Tension Tester

Steel Wire Ropes Tension Tester

HRT-DS Digital Ropes and Steel Wire Ropes Tension Tester

Main usage and application

Ropes and Steel Wire Ropes Tension Testing Instrument HUATEC HRT-DS can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, cable way industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes.

Product characteristics

It has the rope structure with tension force, and can directly measure without disassembly.
It has the light weight, simple structure, convenient operation, and applies to any situations.
It has the stable performance, high measurement accuracy, with automatic system compensation function.When the specification of the tested rope the same as the rope tension testing instrument rope number, the measurement accuracy can reach 3% error or less within the rated measurement range.
It has broader range of measurement, with 19 kinds of rope diameter measuring functions.
Applied range:applied to flexible, stretched ropes,such as various steel wire ropes, high-strength ropes etc.
Accuracy grade: 3～6% of maximum function (depending on the rope form and features).
Rope Diameter: ¢6～¢40mm.

Specifications and model

Model	HRT-DS-20KN
Number	1	2	3	4	5	6	7	8
Diameter	Φ6	Φ8	Φ9	Φ10	Φ12	Φ14	Φ16	Φ18
Load division value(KN)	0.01
Output connector	Rs232 9-hole socket
Power	Rechargeable battery charger (charging voltage 100V～240V)
Working temperature	5℃～35℃
Transport temperature	-10℃～60℃
Relative humidity	15%～80%RH
Working environment	No vibration focus and corrosive media around
Net weight	4.7kg
Dimension	650×375×100(mm)

Model	HRT-DS-50KN
Number	1	2	3	4	5	6	7	8
Diameter	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22	Φ24	Φ26
Load division value(KN)	0.01
Output connector	Rs232 9-hole socket
Power	Rechargeable battery charger (charging voltage 100V～240V)
Working temperature	5℃～35℃
Transport temperature	-10℃～60℃
Relative humidity	15%～80%RH
Working environment	No vibration focus and corrosive media around
Net weight	4.7kg
Dimension	650×375×100(mm)

Model	HRT-DS-100KN
Number	1	2	3	4	5	6	7	8
Diameter	Φ20	Φ22	Φ24	Φ26	Φ28	Φ30	Φ32	Φ34
Load division value(KN)	0.1
Output connector	Rs232 9-hole socket
Power	Rechargeable battery charger (charging voltage 100V～240V)
Working temperature	5℃～35℃
Transport temperature	-10℃～60℃
Relative humidity	15%～80%RH
Working environment	No vibration focus and corrosive media around
Net weight	7kg
Dimension	650×375×100(mm)

Model	HRT-DS-200KN
Number	1	2	3	4	5	6	7	8
Diameter	Φ26	Φ28	Φ30	Φ32	Φ34	Φ36	Φ38	Φ40
Load division value(KN)	0.1
Output connector	Rs232 9-hole socket
Power	Rechargeable battery charger (charging voltage 100V～240V)
Working temperature	5℃～35℃
Transport temperature	-10℃～60℃
Relative humidity	15%～80%RH
Working environment	No vibration focus and corrosive media around
Net weight	7kg
Dimension	650×375×100(mm)

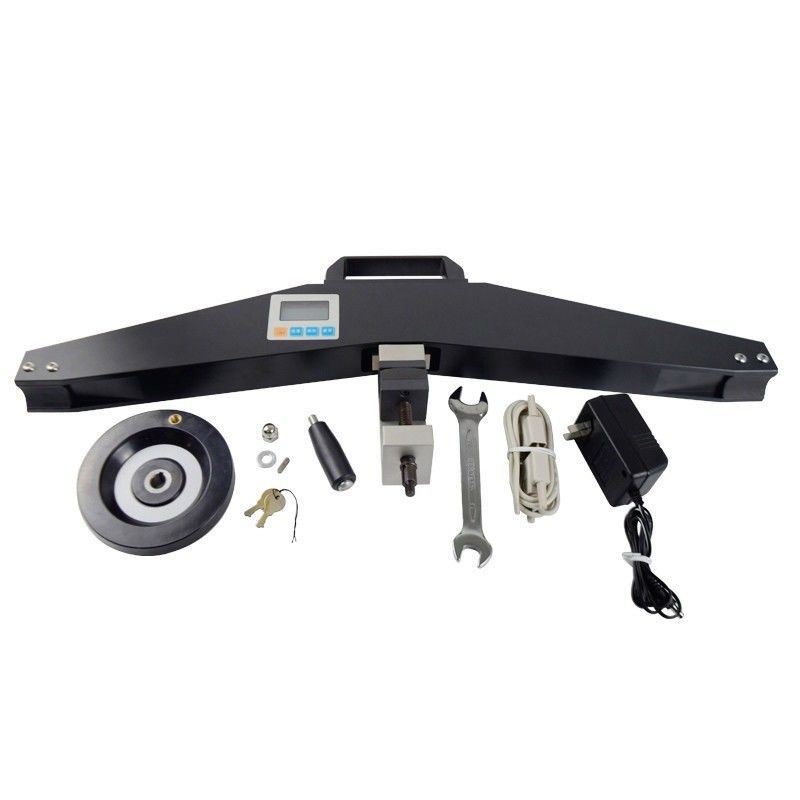

HRT-DS-20KN, HRT-DS-50KN Packing list

User manual	1
Check certificate	1
Warranty card	1
Certificate	1
Software	1
Charger	1
Aluminum key	1
RS232 Cable	1
Tension Meter	1
Hand wheel	1
Cap nut and Flat key	1
Aluminum box	1
Dryer	1

HRT-DS-100KN, HRT-DS-200KN Packing list

User manual	1
Check certificate	1
Warranty card	1
Certificate	1
software	1
charger	1
Aluminum key	1
Rs232 cable	1
Tension meter	1
Aluminum box	1
Dryer	1

HRT-DS Digital Ropes and Steel Wire Ropes Tension Tester 0
