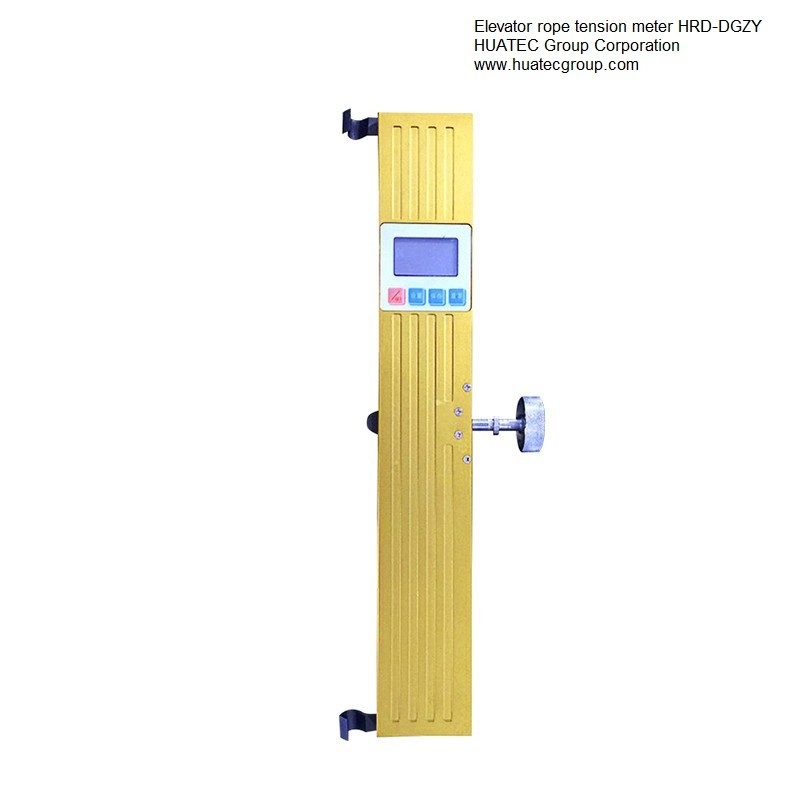

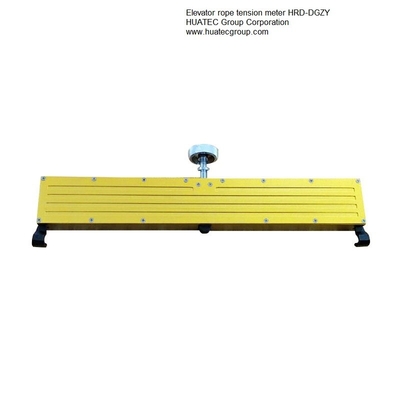

HRD-DGZY Portable High-strength Aluminum Alloy Elevator Rope Tension Meter

HRD-DGZY Portable High-strength Aluminum Alloy Elevator Rope Tension Meter

Summary

Usage and Application

Elevator rope tension tester is mainly used in elevator wire rope tension test . To check and adjust each wire rope of elevator in the process of installation, check before acceptance and annual inspection to ensure its tension as consistent as possible, thereby prolonging the service life of the traction wheel . The tension tester can also be applied to the bridge with sling, tower wiring,overhead wire ,index wire rope and other tension test.

Product features

1.2.1 Portable:the tension tester use high-strength aluminum alloy structure with light weight and small size.It is easy to carry ,one person can complete all the operations.

1.2.2 The instrument has stable performance and high accuracy,when the tested wire rope are consistent with wire rope tension tester data ,the measuring precision can be 5%.

1.2.3 Light weight ,simple structure,easy to operate,suitable for any occasion.

1.2.4 The instrument has 3 preset wire rope diameter model,just need to choose the correct wire rope number when measuring .

1.2.5 LCD display shows the value force,it is more convenient to reading.

1.2.6 Threeunits:N,Kg and Lb can switch into each other .

1.2.7 The instrument can store 383 measuring data,the data can be output by computer.

Product Model

Packing list
