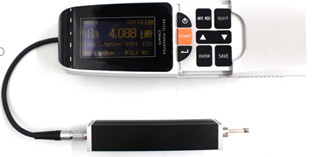

SRT-6671 Surface Roughness Tester
Applied range:
SRT-6671 widely used in machining, aerospace, auto parts, communications, electric power, electronics and other industries.
It is also suitable for universities, scientific research institutes, technical supervision bureau, special prosecutor's court and so on.
Technical Parameters
Host machine
| Parameters |
Ra,Rz,Rq,Rt,Rc,Rp,Rv,R3z,R3y,Rz(JIS),Ry,Rs,RSk,Rku,Rmax,Rsm,Rmr,Rpc,Rk,Rpk,Rvk,Mr1,Mr2 |
| Measuring range |
Ra:0.025-12.5μm |
| Displayed range |
Ra,Rq:0.005-16μm；Rz,Ry,Rt,Rp,Rv,Rmax,R3z:0.02-160μm；RS,RSm:1mm；Rmr:0-100%(%Rt)；Rsk:0-100% |
| z-axis measuring range |
±20μm,±40μm,±80μm |
| Maximum display resolution |
0.001μm |
| Filter |
RC,PC-RC,GAUSS,D-P |
| Length of sampling l |
0.25mm,0.8mm,2.5mm |
| Length of evaluation L |
(1-5)l(optional), lis the sampling length |
| Maximum drive stroke |
17.5mm/0.7inch |
| Minimum drive stroke length |
1.3mm/0.052inch |
| Error of indication |
≤±10% |
| Indicates value variability |
≤6% |
| Mode of display |
128×64 OLED Lattice liquid crystal (spontaneous light) |
| Power source |
Rechargeable lithium battery |
| Overall dimensions |
140mm×52mm×48mm |
| Weight |
440g |
Sensor
| Sensor performance index |
| Principle of detection |
Inductance type |
| Range of measurement |
160μm |
| Radius of stylus tip |
5μm |
| Needle tip material |
Diamond |
| Measuring force |
4mN(0.4gf) |
| Stylus tip angle |
90° |
| Radius of skid curvature |
45mm |
Standard Configuration
| Product name |
QTY |
Product name |
QTY |
| Host machine SRT-6671 |
1 |
RS100standard sensor |
1 |
| Standard Sample plate |
1 |
Power adaptor |
1 |
| Sensor jacket |
1 |
packing list |
1 |
| Test plate |
1 |
Warranty card |
1 |
| Specification |
1 |
Certification |
1 |
Instrument Features
● ARM processor for control and data processing, fast speed, low power consumption;
● Software transplant real-time operating system, support multi-task parallel processing;
● Large range, multi parameters: Ra,Rz,Rq,Rt,Rp,Rv,R3z and other 13 parameters;
●128*64 high brightness OLED display, self-lighting, wide temperature, full Angle of view；
● Display rich information, intuitive, can display all parameters and graphics;
● Compatible with ISO, DIN, ANSI, JIS national standards;
● Built-in rechargeable lithium battery, can display charging process instructions, the operator can know the charging degree at any time;
● With the remaining battery indicator icon, prompt users to charge in time;
● Large capacity data storage, the machine FLASH can store 200 groups of original data and waveform;
● Scalable Micro SD card storage, up to 16G;
● Compatible with a variety of sensors: standard sensor, small hole sensor, groove sensor, deep groove sensor;
● Optimized the sensor structure, the measured value is more stable;
● Using USB interface, can connect computer and printer, can realize embedded software online upgrade.
