RJ33-1015 Multifunctional Rays, Α, Β, X, And Γ Radiation Geiger Counter Detector

RJ33-1015 Multifunctional Rays, α, β, X, and γ Radiation Geiger Counter Detector

1. Product introduction

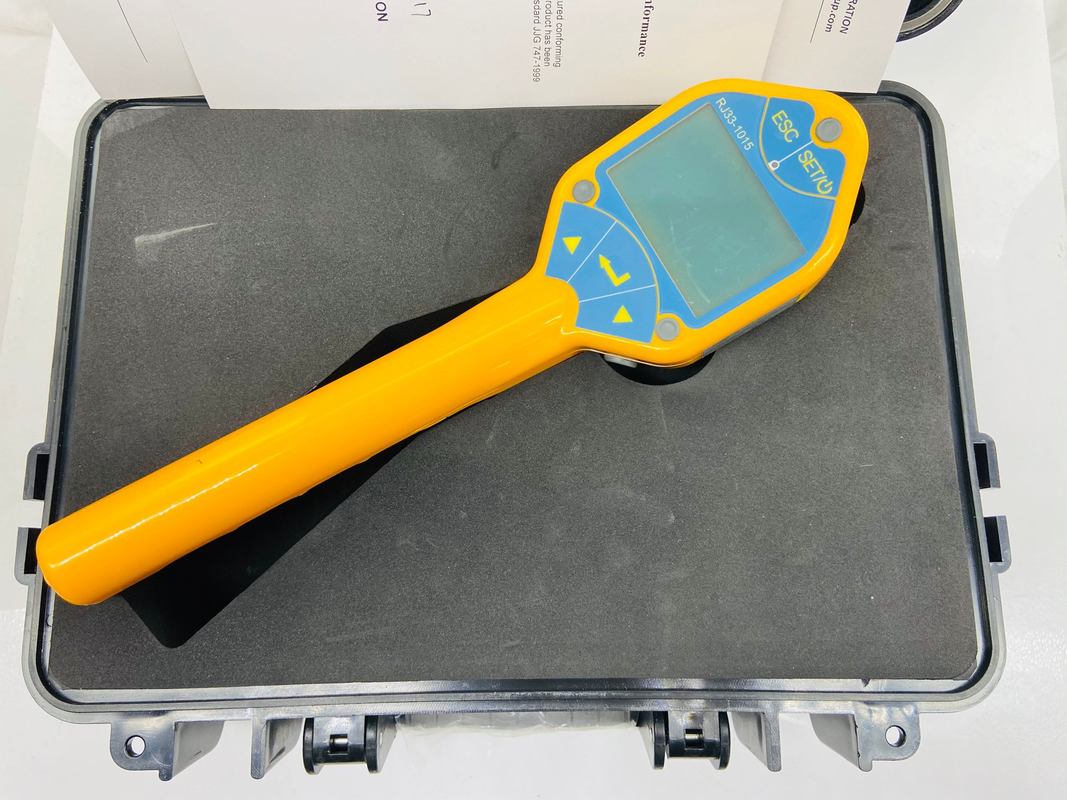

HUATEC RJ33-1015 multifunctional radiation detector uses a halogen broken Geiger counter as a detector, which can be used to detect four kinds of rays, α, β, X, and γ. It is mainly used for rapid response at the radiation detection site through an external probe. It can also realize the accurate determination of the detection site and the measurement of the site neutron radiation level.

2. Application areas

HUATEC RJ33-1015 multifunctional radiation detector can be used in the fields of stone, building materials, environmental protection, nuclear medicine, nuclear technology application, entry-exit inspection and quarantine, and sanitation supervision.

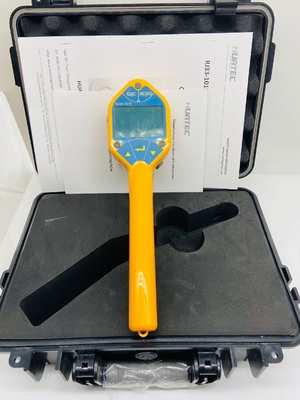

3.Parts List:

4. Performance indicators

X, γ performance index

1. X, γ dose rate range: 0.1 µSv/h～5mSv/h

2. X, γ sensitivity: ≥20cps/(uSv/h)

3. X, γ energy range: 0～3 MeV

4. Accumulated dose range: 0.001uSv～1000Sv

5. Relative error: ≤±15%

α, β performance indicators

1. Detector: imported mica window probe

Effective diameter 45mm, detection area 15.69cm²

2. α, β test range: 0～1000 Bq/cm²

3. Sensitivity: α surface activity response ≥5 s^-1Bq^-1cm²

β surface activity response≥3.5 s^-1Bq^-1cm²

4. Detection efficiency: α≥35% (Am-241); β≥35% (Tl-204)

5. Relative error: ≤20%

6. Measuring time: can be adjusted manually and automatically between 1 second and 120 seconds

7. Display unit: μSv/h, CPM, CPS, Bq/cm^2

8. Use environment: temperature -5℃～50℃, relative humidity (≤98% at 40℃)
