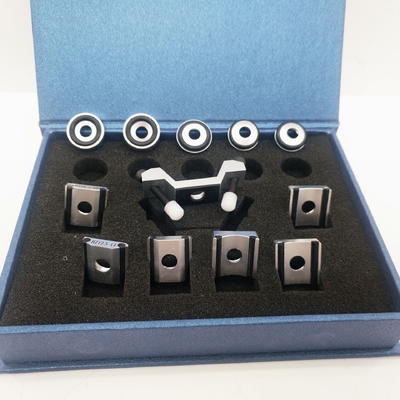

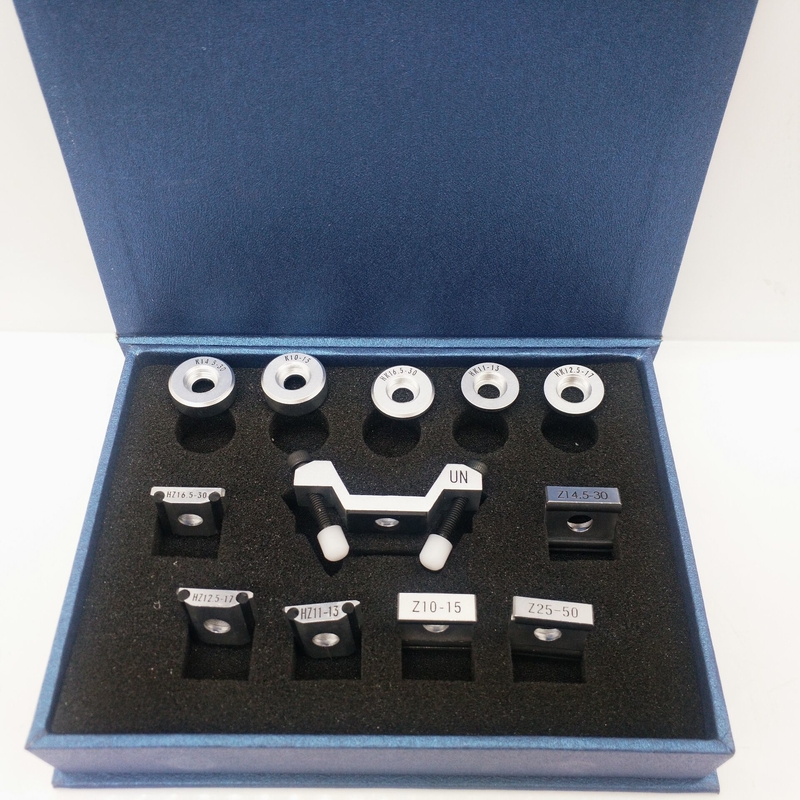

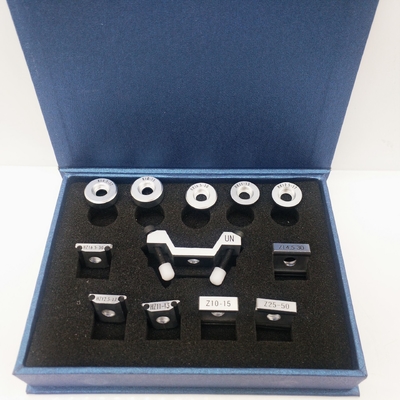

Leeb Hardness Tester Support Rings 12 Pcs Set

Large Image : Leeb Hardness Tester Support Rings 12 Pcs Set

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	Support rings

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD150-USD170/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

Leeb Hardness Tester Support Rings 12 Pcs Set

Description

Usage:

Leeb Hardness Tester

Highlight:

Leeb Hardness Tester Support Rings

12 Pcs Leeb Hardness Tester Support Rings

Leeb Hardness Tester Support Rings Set

Leeb Hardness Tester Support rings 12 pcs

No.	Type	Remarks
1	Z10-15	For testing cylindrical outside surface R10～R15
2	Z14.5-30	For testing cylindrical outside surface R14.5～R30
3	Z25-50	For testing cylindrical outside surface R25～R50
4	HZ11-13	For testing cylindrical inside surface R11～R13
5	HZ12.5-17	For testing cylindrical inside surface R12.5～R17
6	HZ16.5-30	For testing cylindrical inside surface R16.5～R30
7	K10-15	For testing spherical outside surface SR10～SR15
8	K14.5-30	For testing spherical outside surface SR14.5～SR30
9	HK11-13	For testing spherical inside surface SR11～SR13
10	HK12.5-17	For testing spherical inside surface SR12.5～SR17
11	HK16.5-30	For testing spherical inside surface SR16.5～SR30
12	UN	For testing cylindrical outside surface,radius adjustable R10～∞

Leeb Hardness Tester Support Rings 12 Pcs Set 0
