TG-1660 Ferrous Non Ferrous Waveform Coating Thickness Gauge

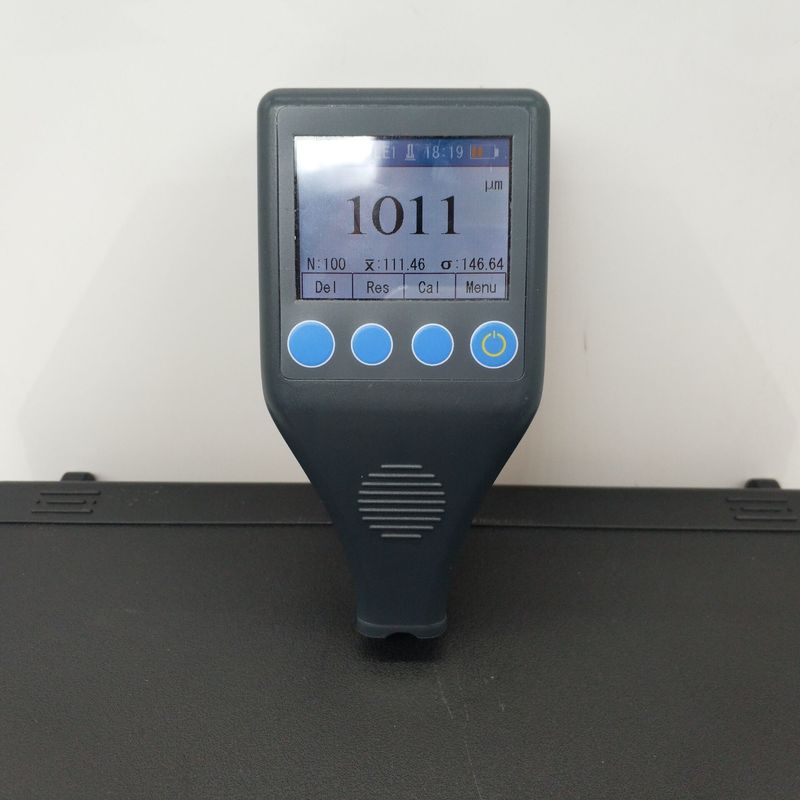

Large Image : TG-1660 Ferrous Non Ferrous Waveform Coating Thickness Gauge

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG-1660

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD138-USD156/SET
Packaging Details:	Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

TG-1660 Ferrous Non Ferrous Waveform Coating Thickness Gauge

Description

F Testing Range(um):	0-2000	N Testing Range(um):	0-1500 0-40 (chromium Plating On Copper）
Min. Resolution)(um):	0.1	Zero Calibration(um):	±(3%H+1)
Temperature:	0 ℃ -- 40 ℃	Humidity:	20%RH -- 90%RH
Highlight:	Non-ferrous Waveform Coating Thickness Gauge , Ferrous Waveform Coating Thickness Gauge

TG-1660 Ferrous Non-ferrous Waveform Coating Thickness Gauge

Principle

Coating Thickness Gauges TG-1660 with ferrous probe applies magnetic induction method to measure the thickness of non-magnetic coating on ferromagnetic material; with eddy current method to measure the thickness of non-conductive coating on conductive metal
Application

This gauge can be used widely in machinery, automobile, shipbuilding, petroleum, chemical, electroplating, spraying plastics, enamel, plastics and so on.

Specification

Probe Type			F	N
Working Theory			Magnetic	Eddy Current
Testing Range(um)			0-2000	0-1500 0-40 (chromium plating on copper)
Min. Resolution)(um)			0.1	0.1
Display Resolution	Zero Calibration(um)		±(3%H+1)	±(3%H+1)
	2 points calibration(um)		±｛(1-3)%H+1｝	±｛(1-3)%H+1｝
Testing Condition	Min. Radius of curvature(mm)		Convex 1.5	Convex 3
	Diameter Of minimum area(mm)		∅7	∅5
	Critical thickness of base(mm)		0.5	0.3
Operation condition		Temperature	0 ℃ -- 40 ℃
		Humidity	20%RH -- 90%RH
		Magnetic Environment	Non Strong magnetic field
Power			AAA battery X 3
Size			114mm58mm29mm
Weight			70g(without battery)

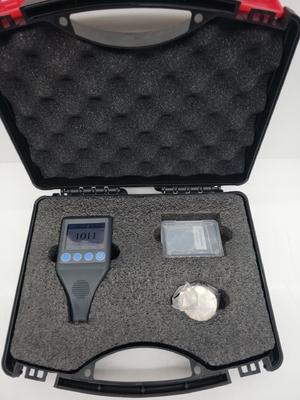

Standard accessories

Main unit TG-1660

Ferrous base set, Aluminum base set

Film 1 set 5pcs

English manual

Calibration certificate

Carrying case

Option function

Color LCD
