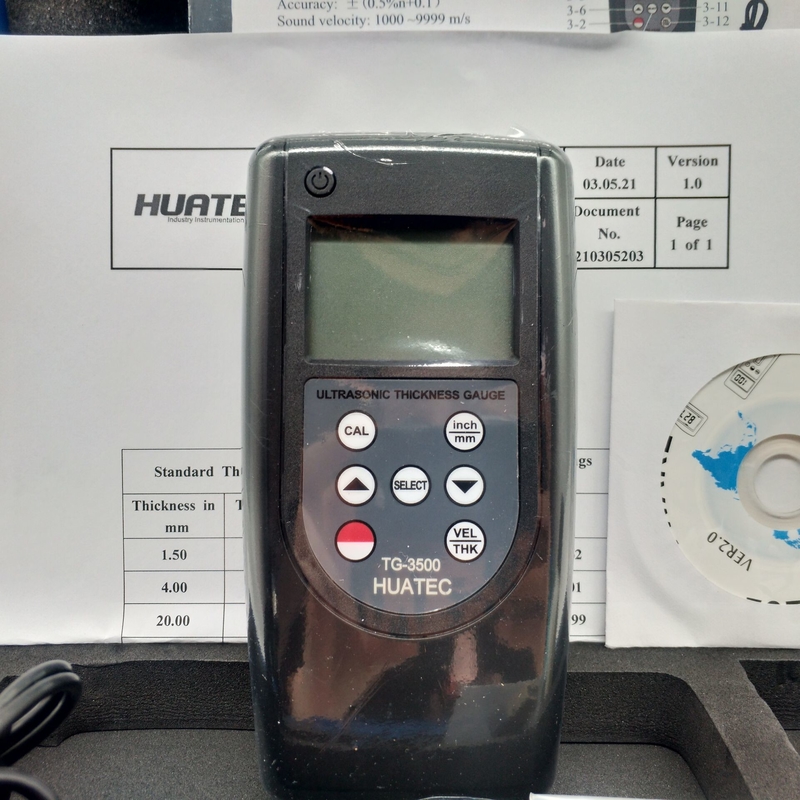

TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge

TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge
TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge

Large Image :  TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: TG-3500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD380-USD430/SET
Packaging Details: Outer carton packaging
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge

Description
Display: 4 Digit, 10 Mm LCD Measuring Range (metric / Imperial): 0.75~400mm (45# Steel) (Depend On Probe)
Sound Velocity: 1000~9999 M/s Resolution: 0.1mm / 0.01mm / 0.001inch
Accuracy: ± (0.5%n + 0.1)
Highlight:

Bluetooth Digital Ultrasonic Wall Thickness Gauge

,

Portable Digital Ultrasonic Wall Thickness Gauge

TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge



Features

* Using the latest high performance and low power consumption microprocessor technology.

* Automatic memory material code and sound velocity value, convenient to use.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output”



Specifications

Display 4 Digit, 10 mm LCD
Operating Principle Ultrasonic
Measuring Range (metric / Imperial) 0.75~400mm (45# steel) (Depend on Probe)
Battery Indication Low Battery Indication
Sound Velocity 1000~9999 m/s
Lower Limit Steel Pipes Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer
Calibration Block Included
Resolution 0.1mm / 0.01mm / 0.001inch
Accuracy ± (0.5%n + 0.1)
Power off Auto Power off & Manual Power Off
Operating Conditions Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply 4 x 1.5 V AAA (UM-4) Battery
Dimensions 140 x 72 x 34 mm
Weight 185 g (Not Including Batteries)

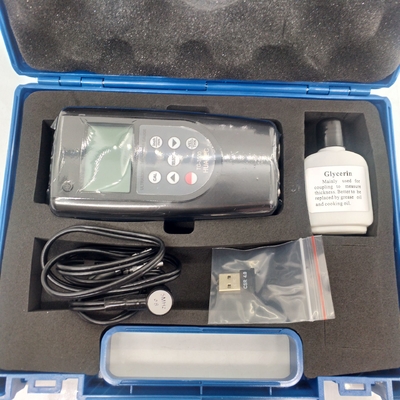

Standard Delivery:

1. Main Unit

2. 5MФ8 Standard Sensor

3. Coupling Agent

4. Carrying Case

5. Operating Manual



Optional Accessories:

1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3. Curved Surface Probe

4. USB, RS-232C data cable with software

5. Bluetooth data output with software



TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge 0

TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge 1TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge 2TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge 3
