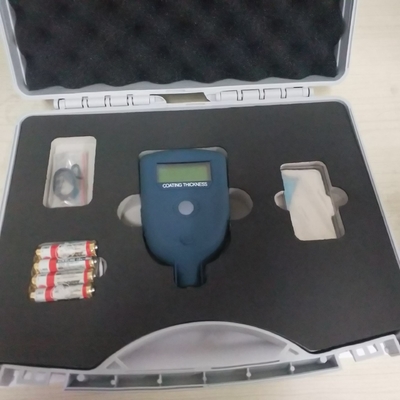

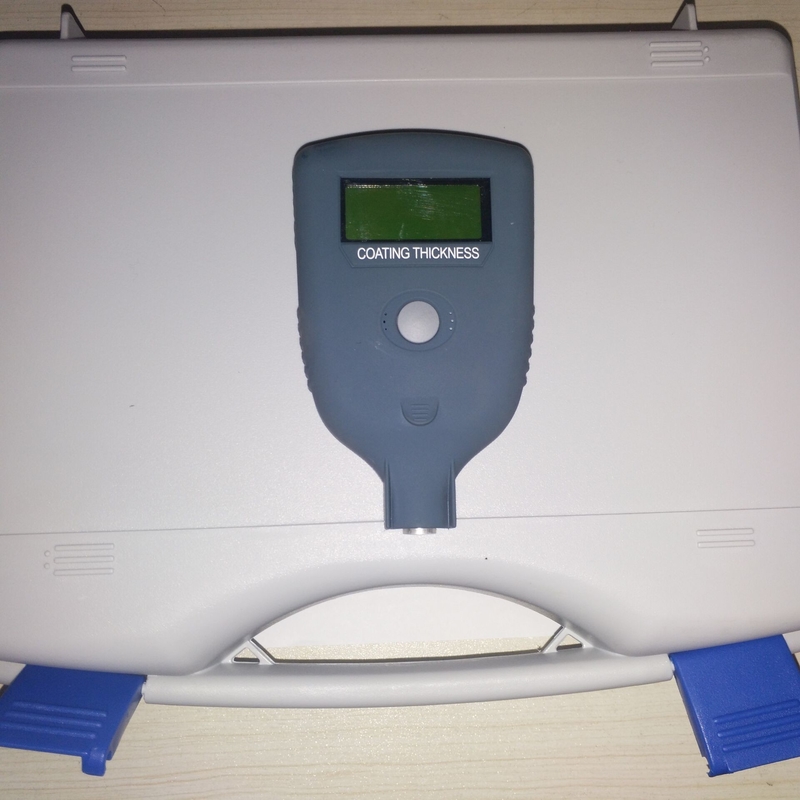

TG7520 Pressure Vessels Corrosion Coating Thickness Gauge

Large Image : TG7520 Pressure Vessels Corrosion Coating Thickness Gauge

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	TG7520

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD175-USD195/SET
Packaging Details:	Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

TG7520 Pressure Vessels Corrosion Coating Thickness Gauge

Description

Measuring Range:	0-2000um	Resolution:	0.1/1
Accuracy:	±5%n Or ±5um	Min. Measuring Area:	6mm
Min. Sample Thickness:	0.3mm	Operating Conditions:	0-+45℃(32℉-104℉),≤90%RH
Highlight:	Pressure Vessels Thickness Gauge , Corrosion Coating Thickness Gauge

TG7520 Pressure Vessels Corrosion Coating Thickness Gauge

Product synopsis

Application: used for measuring thickness and corrosion of pressure vessels, chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station, and machine manufacturing.

Operating principle	magnetic induction (F)
Measuring range	0-2000um
Resolution	0.1/1
Accuracy	±5%n or ±5um
Min. measuring area	6mm
Min. sample thickness	0.3mm
Metric/ imperial	convertible
Battery indicator	low battery indicator
Operating conditions	0-+45℃(32℉-104℉),≤90%RH
Power supply	4x1.5V AA (UM-3)battery

Auto power off

Dimensions: 160x68x32mm

Weight: 210g(not including battery)
Optional accessories: other range 0-200um to 10000um

TG7520 Pressure Vessels Corrosion Coating Thickness Gauge 0

TG7520 Pressure Vessels Corrosion Coating Thickness Gauge 2
