HUATEC 2MHz-10MHz Ultrasonic Thickness Gauge TG-3400

Big range 0.65～500mm ultrasonic thickness gauge TG-3400

Reference Sound Velocity of Common Materia

Note: The thickness of many other materials can also be m

Specifications

1. Measuring Range: 0.65～500mm (45＃Steel)

2. Sound Velocity Range: 1000～9990m/s

3. Precision: 0.01mm

4. Error: 1％ * Thickness Value±0.05mm

5. Operating Environment: Temperature Between -10℃～60℃Relative Humidity < 90％

6. Dimension: 175＊70＊25mm

7. Probe Frequency: 2MHz-10MHz

8. Auto Backlight Application: used for measuring the thickness of hard materials, such as: steel, stainless steel, aluminum, copper, chrome and other metal materials, as well as plastics, rubber, ceramics, glass and other nonmetals. The gauges are widely used in petroleum, chemical industry, electric power, boiler, metallurgy, shipbuilding, aviation, aerospace and other fields.

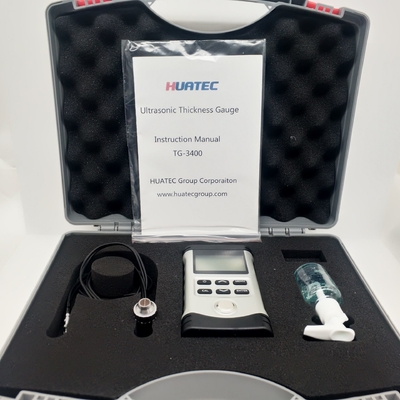

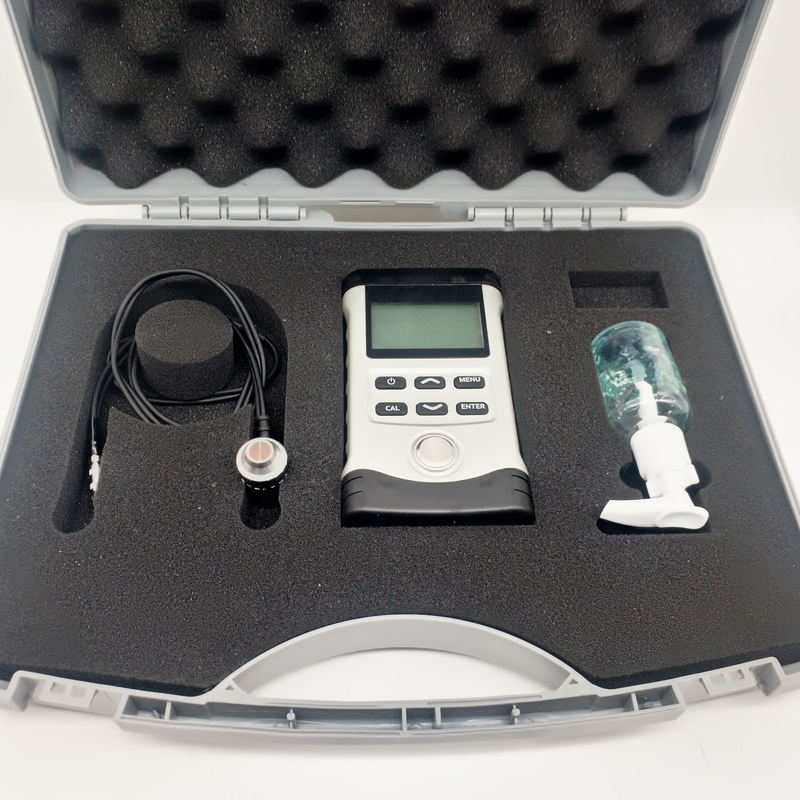

Standard accessor

1,TG-3400 Unit 1 Set

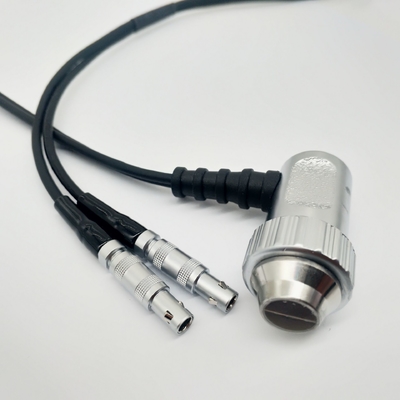

2,Probe (one forφ6 and one forφ10) 2

3,Couplant 1 Bottle

4,Steel File 1

5,Step Block 1

6,1.5V Battery 2

7,Instruction Manual 1

8,Guarantee Card and Certificate of Conformity 1

9,Carrying Case 1

Optional accessories:

1,Print and Connections for Communication and Printing 1

2,Microcomputer Communication Software 1

3,Tool Kit for Measurement 1
