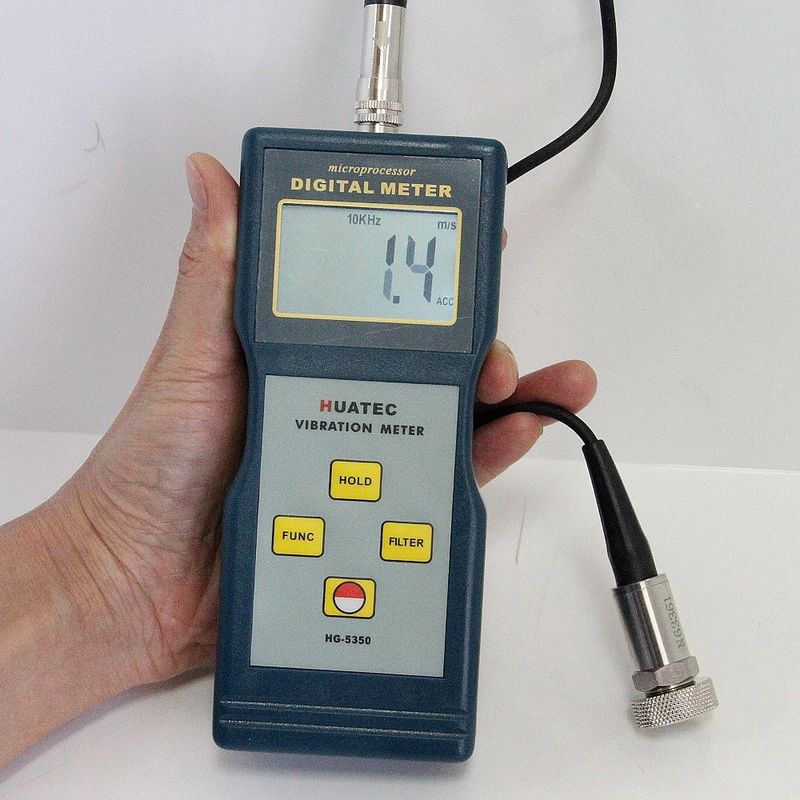

HG-5350 Multi-function Vibration Tester Low Battery Indicator

HG-5350 Multi-function Vibration Tester Low Battery Indicator
HG-5350 Multi-function Vibration Tester Low Battery Indicator HG-5350 Multi-function Vibration Tester Low Battery Indicator

Large Image :  HG-5350 Multi-function Vibration Tester Low Battery Indicator

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HG-5350
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD190/set - USD215/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HG-5350 Multi-function Vibration Tester Low Battery Indicator

Description
Acceleration: 10Hz To 1KHz 10Hz To 10KHz 0.1-200m/s Velocity: 10Hz To 1KHz 0.1-200mm/s
Displacement: 10Hz To 1KHz] 0.001-2.0mm Accuracy: ＜5﹪
Operating Conditions: 0-+40℃(32℉-104℉), ≤90%RH
Highlight:

10Hz to 10KHz Vibration Tester

,

Accurate Readings Vibration Tester

,

10Hz to 1KHz Vibration Tester

HG-5350 Multi-function Vibration Tester Low Battery Indicator

Specifications:
Acceleration 10Hz to 1KHz 10Hz to 10KHz 0.1-200m/s
Velocity 10Hz to 1KHz 0.1-200mm/s ture RPM
Displacement 10Hz to 1KHz] 0.001-2.0mm
Accuracy:＜5﹪
Auto power off
Max hold
Operating conditions:0-+40℃(32℉-104℉), ≤90%RH
Power supply: 4x1.5V AA(UM-3)battery
Battery indicator: low battery indicator
Dimensions : 160x68x32mm
Weight: 181g(not including battery)


ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank Rev(rpm) H:high of shaft(mm)
Maximum vibration velocity rms(mm/s)
80<H<132 132<H<225 225<H<400
Normal 600~3600 1.8 2.8 4.5
Good(R) 600~1800 0.71 1.12 1.8
1800~3600 1.12 1.8 2.8
Excellent(S) 600~1800 0.45 0.71 1.12
1800~3600 0.71 1.12 1.8

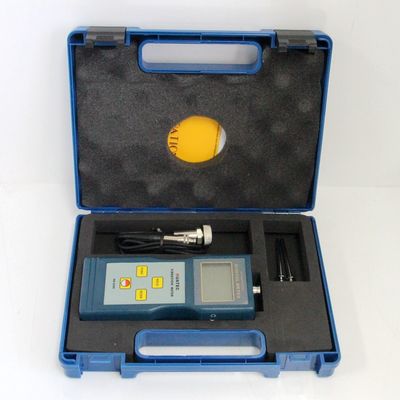

Standard Delivery:
Main Unit 1
Carrying Case 1
Powerful Rare Earth Magnet 1
Piezoelectricity Transducer 1
Instruction Manual 1



Optional Accessories
Headset
RS-232C/USB data Cable with Software
Bluetooth Data Adapter with Software
