FJ-6103N LCD Display Multi Purpose X ray Radiation Site Monitor Detector

FJ-6103N LCD display Multi-purpose X-ray Radiation Site Monitor Detector

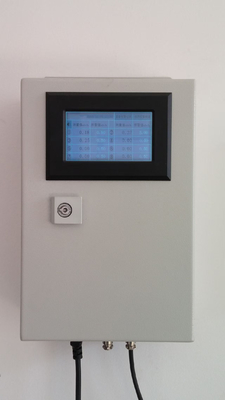

FJ-6103N Radiation Site Monitor is an economical multi-purpose X-ray detector. The instrument uses high-speed microprocessor for data processing, 4.3 inch graphic LCD display, and has the function of over-threshold sound and light alarm. The instrument can be fixed in the radioactive site for use, or can be moved to the temporary monitoring area as needed. It is an ideal instrument for gamma and X-ray radiation dose rate detection in environmental laboratory, irradiation room, nuclear medicine, molecular biology, radiochemistry, nuclear material storage and other fields.

External detector technical specifications

Functional characteristic

• _ Various tube detectors can be connected
• - Alarm function of dose rate exceeding threshold
• _ 4.3 "420*270 dot matrix large size LCD display
• _ Detector failure indication
• _ External two-color sound and light alarm device
• _ Wall mount
• _ Relay normally open normally closed switching output interface.
• _ There are three alarm modes: upper limit, lower limit and upper limit.
• - Can store 100,000 alarm records
• - With 485 communication interface, can be connected to PLC or computer. Radiation detection system software is optional.
• - Detector comes with numerical display and relay alarm output function.

Standard configuration:

- FJ-6103N host

- External sound and light alarm

- Power cable, detector connection cable

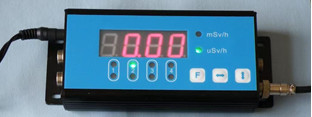

- External detector (with numerical display function and relay output alarm function)
