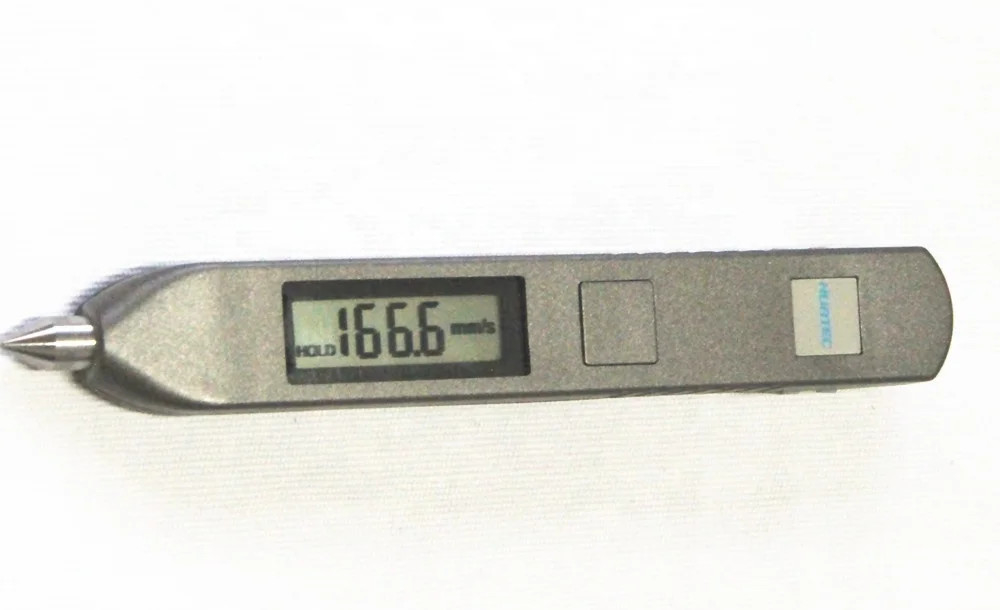

HG-6400 Motor Failure Detecting Velocity Vibration Pen

Large Image : HG-6400 Motor Failure Detecting Velocity Vibration Pen

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HG-6400

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD218/set - USD250/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HG-6400 Motor Failure Detecting Velocity Vibration Pen

Description

Parameter:	Velocity	Accuracy:	±5%
Display:	3 1/2 Digits LCD	Power Supply:	Two Button Batteries(LR44 Or SR44)
Battery Capacity:	Approx. 4.5 Hours Working Continuously	Humidity:	<85%
Highlight:	Velocity Vibration Pen , Motor Failure Detecting Pen

HG-6400 Motor Failure Detecting Velocity Vibration Pen

Features:
·Used for fast failure detecting of motor, electric fan, pump, air compressor, machine
tools and so on.
·Compact size, small weight, easy handling
·Prompt testing of vibration on the workshop machines
·For quick checking of unbalance misalignment, bearings and gears
·Guard against mechanical malfunction
·Holding tested value for 40 seconds
·Automatic switch off after 40 seconds

Technical Specifications:

Parameter	Velocity
Testing range	Velocity: 0.1mm/s-199.9 mm/s(RMS)
Frequency range	Velocity: 10Hz ~ 1kHz
Accuracy	±5%
Display	3 1/2 digits LCD
Power supply	two button batteries(LR44 or SR44)
Battery capacity	Approx. 4.5 hours working continuously
Operating temperature	0℃ ~ 40℃
Humidity	<85%
Dimension	150mm×22mm×15mm

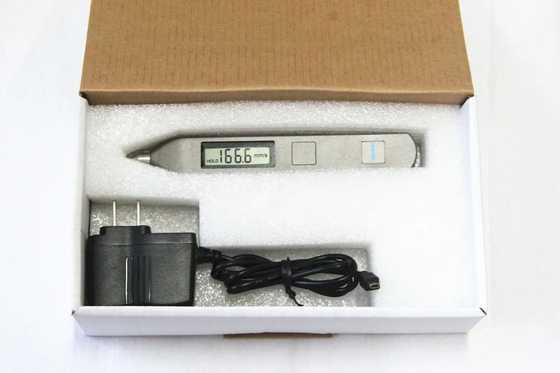

Standard delivery
• Main unit
• Battery
• Protection pocket
• Certificate
• Instruction manual
• Warranty card
