HG-5029 Portable IF Vibration Smedium Frequency Vibration Calibration Device

Large Image : HG-5029 Portable IF Vibration Smedium Frequency Vibration Calibration Device

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HG-5029

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	USD25300/set - USD28600/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HG-5029 Portable IF Vibration Smedium Frequency Vibration Calibration Device

Description

Frequency Range:	10 Hz To 4000 Hz	Maximum Acceleration:	≥100 M/s2
Standard Sensor Frequency Range:	10 Hz ~ 10 KHz	Number Of Input Channels For Dynamic Signal Analyzer:	≥2pcs
Signal Analysis Dynamic Range:	Better Than 100 DB	Signal Analysis Frequency Range:	Better Than 100 KHz
Highlight:	Portable IF Vibration Calibration Device , Smedium Frequency Vibration Calibration Device

HG-5029 Portable IF Vibration Smedium Frequency Vibration Calibration Device

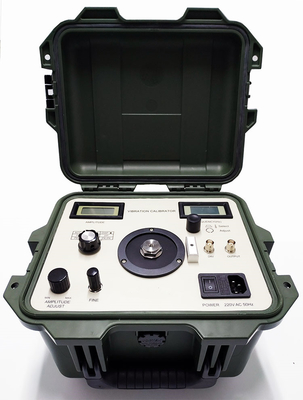

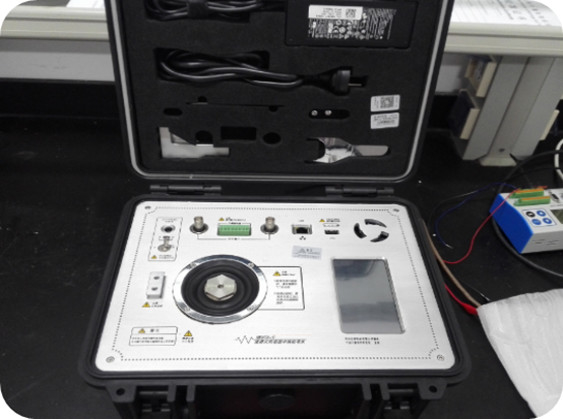

The portable IF vibration standard device integrates a small IF standard vibration table, built-in acceleration sensor and 24-bit dynamic signal analyzer, which has high precision and good stability, and can complete the calibration of working vibration meter, acceleration sensor, speed sensor, displacement sensor and other instruments on site. It can be used in metrological calibration laboratory, enterprise or field.

Main technical index

Frequency range	10 Hz to 4000 Hz
Maximum acceleration	≥100 m/s2
Standard sensor frequency range	10 Hz ~ 10 kHz
Number of input channels for dynamic signal analyzer	≥2pcs
Signal analysis Dynamic range	better than 100 dB
Signal analysis frequency range	better than 100 kHz

Main feature

 high integration

 Built-in 24-bit high precision vibration controller

 can be automatically calibrated independently

 can be connected to external laptop control

 with built-in large capacity lithium battery

 has a variety of extension tools

HG-5029 Portable IF Vibration Smedium Frequency Vibration Calibration Device 0

HG-5029 Portable IF Vibration Smedium Frequency Vibration Calibration Device 2
